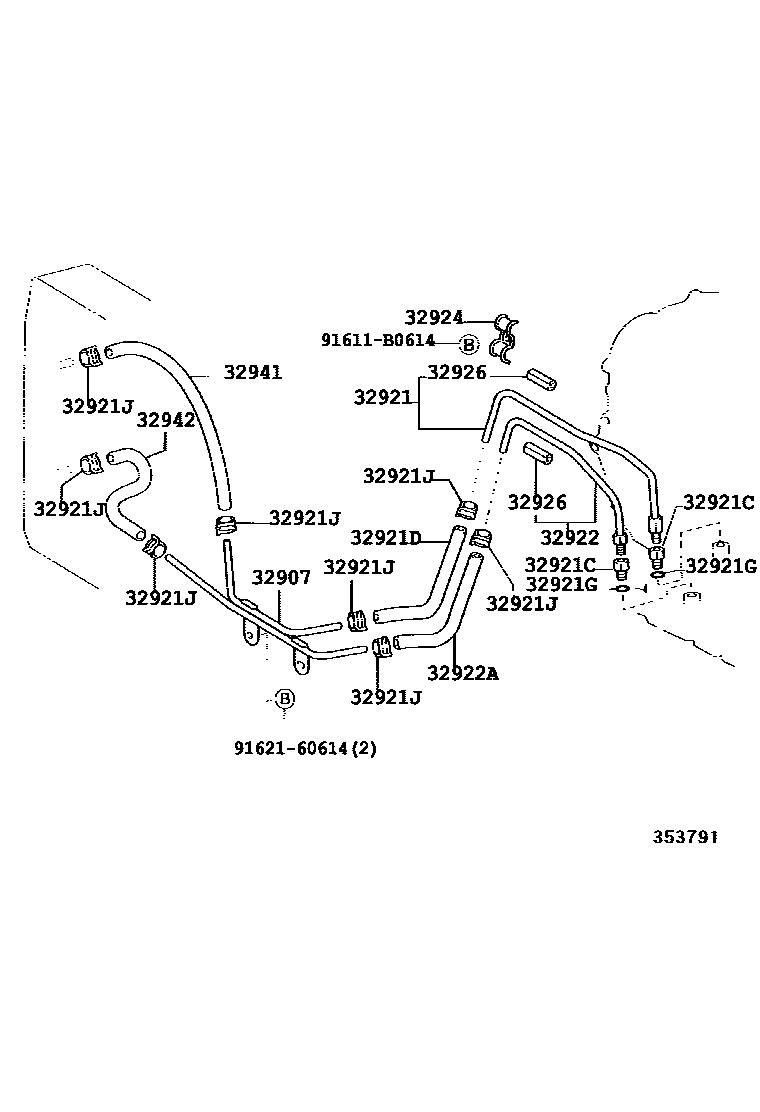

OIL COOLER & TUBE (ATM)

32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2

main32907-12020iZZE12#..ATM200205-200705

32921TUBE, OIL COOLER INLET, NO.1

main32921-12430iZZE12#..ATM200205-200705

main32921-13030iZZE122..ATM..BZ..SED..HTWC200612-200803

PERU SPEC

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iZZE122..ATM..BZ..SED..HTWC200612-200803

PERU SPEC,OUTLET

main90404-14019×2iZZE12#..ATM..VEN200205-200508

main90407-14003iZZE122..ATM..BZ..SED..HTWC200612-200803

PERU SPEC,INLET

32921DHOSE(FOR OIL COOLER INLET)

main32943-12020iZZE12#..ATM200205-200705

L=225

main90445-15042iZZE122..ATM..BZ..SED..HTWC200612-200803

PERU SPEC

main90445-15050iZZE12#..ATM200205-200705

L=220

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189×2iZZE122..ATM..BZ..SED..HTWC200612-200803

PERU SPEC

main90301-11006×2iZZE12#..ATM200408

32921JCLIP(FOR OIL COOLER HOSE)

main96135-51300×8iZZE122..ATM..WGN200205-200705

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-12300iZZE12#..ATM200205-200705

main32922-12350iZZE122..ATM..BZ..SED..HTWC200612-200803

PERU SPEC

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15020iZZE122..ATM..BZ..SED..HTWC200612-200803

PERU SPEC

main90445-15050iZZE12#..ATM200408

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-10127iZZE12#..ATM200205-200705

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010×2iZZE12#..ATM200205-200705

L=30,ID=8

32941HOSE, OIL COOLER INLET, NO.1

main90445-15039iZZE12#..ATM200205-200705

32942HOSE, OIL COOLER OUTLET, NO.1

main90445-15034iZZE122..ATM..BZ..SED..HTWC200408-200803

PERU SPEC

main90445-15050iZZE12#..ATM200205-200705

91611B0614

main91611-B0614

9162160614

main91621-60614

14 parts on this diagram · 1 diagram in section
