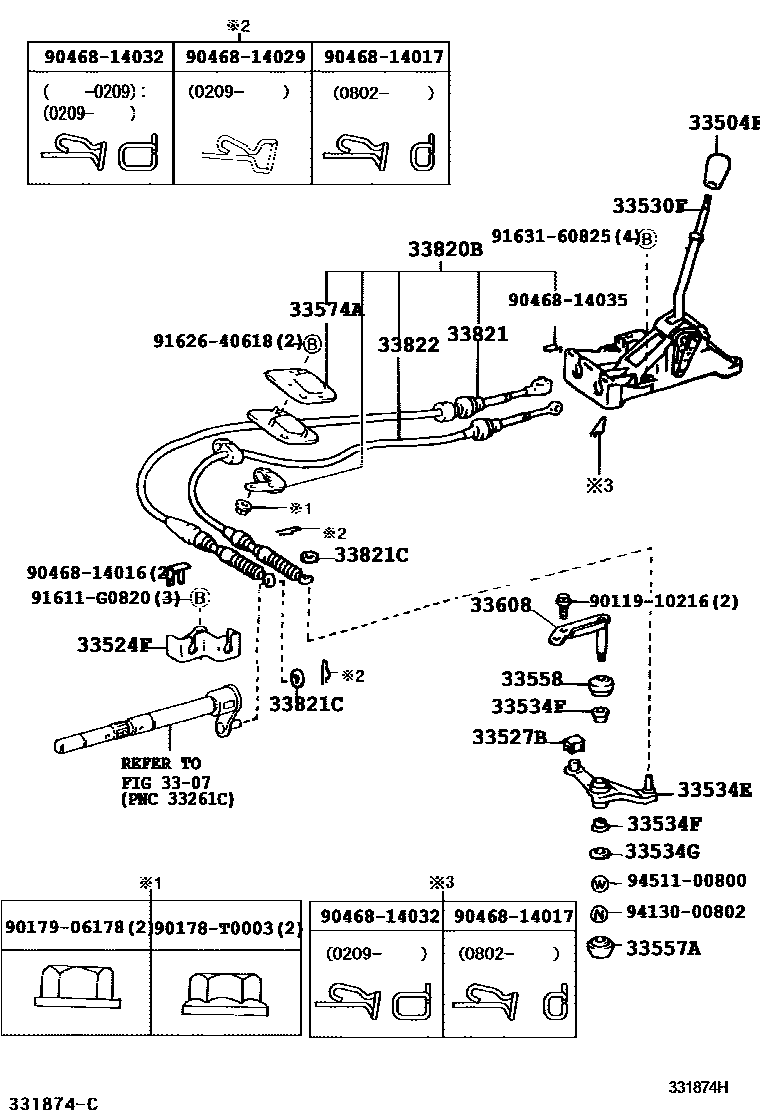

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-B7iCDE120,ZZE12#..MTM..(XEI,XLI)200408

DK.GRAY,TRIM1#

main33504-22140-B2iZZE122..MTM..VEN200209-200508

DK.GRAY,TRIM1#

main33542-06030-B2iZZE12#..ATM..BZ200205-200705

DK.GRAY,TRIM1#

main33542-12320-B0iZZE121..ATM..VEN200508

DK.GRAY,TRIM1#

main33542-12340-B0iZZE122..ATM..VEN200508

DK.GRAY,TRIM1#

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-28020iCDE120200408-200803

main33524-42020iZZE12#..MTM..BZ..SED200205-200408

33527BBUSH (FOR CONTROL SHIFT LEVER)

main33557-33010iCDE120,ZZE12#..MTM..BZ..SED200205-200408

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-02120iCDE120,ZZE12#..MTM..BZ..SED..(DCR,HTWC)200303-200408

main33530-12770iCDE120,ZZE12#..MTM..BZ200205-200303

33534ECRANK, SELECTING BELL, NO.2

main33534-28090iCDE120200408-200803

main33534-42010iZZE12#..MTM..VEN200205-200508

33534FBUSH (FOR SELECTING BELLCRANK NO.2)

main90386-12022×2iCDE120,ZZE12#..MTM..BZ..SED200205-200408

33534GWASHER, PLATE (FOR SELECTING BELLCRANK NO.2)

main90201-08028iCDE120,ZZE12#..MTM..BZ..SED200205-200408

33557ACOVER, SELECTING BELLCRANK DUST, NO.1

main33557-32010iCDE120,ZZE12#..MTM..BZ..SED200205-200408

33558COVER, SELECTING BELLCRANK DUST, NO.2

main33558-10030iCDE120,ZZE12#..MTM..BZ..SED200205-200408

33574ARETAINER, SHIFT CABLE GROMMET, NO.1

main33574-12090iZZE122..MTM..WGN200205-200705

main33574-12100iCDE120200205-200307

33608SUPPORT SUB-ASSY, SELECTING BELLCRANK

main33608-12031iCDE120200205-200408

main33608-42010iZZE122..MTM..WGN200205-200705

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-12890iZZE12#..ATM..VEN200209-200508

main33820-12D90iZZE122..ATM..BZ..SED..HTWC200612-200803

PERU SPEC

main33820-1A160iCDE120200205-200307

main33820-1A161iCDE120200307-200405

main33820-1A162iCDE120200408-200803

main33820-1A180iZZE12#..ATM..BZ200408

main33820-1A240iZZE12#..MTM..(GLI,XEI,XLI)200408

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-1A150iCDE120200205-200307

main33821-1A151iCDE120200307-200405

main33821-1A152iCDE120200408-200803

main33821-1A200iZZE12#..MTM..BZ..SED..HTWC200205-200408

33821CWASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)

main90201-08077×2iCDE120200211-200705

OD=30

main90201-08267×2iCDE120,ZZE12#..MTM200211-200705

OD=28

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-12490iCDE120200205-200307

main33822-12491iCDE120200408-200803

main33822-12520iZZE12#..MTM..BZ..SED..HTWC200205-200408

9011910216

main90119-10216

90178T0003

main90178-T0003

9017906178

main90179-06178

9046814016

main90468-14016

9046814017

main90468-14017

9046814029

main90468-14029

9046814032

main90468-14032

9046814035

main90468-14035

91611G0820

main91611-G0820

9162640618

main91626-40618

9163160825

main91631-60825

9413000802

main94130-00802

9451100800

main94511-00800

29 parts on this diagram · 5 diagrams in section
