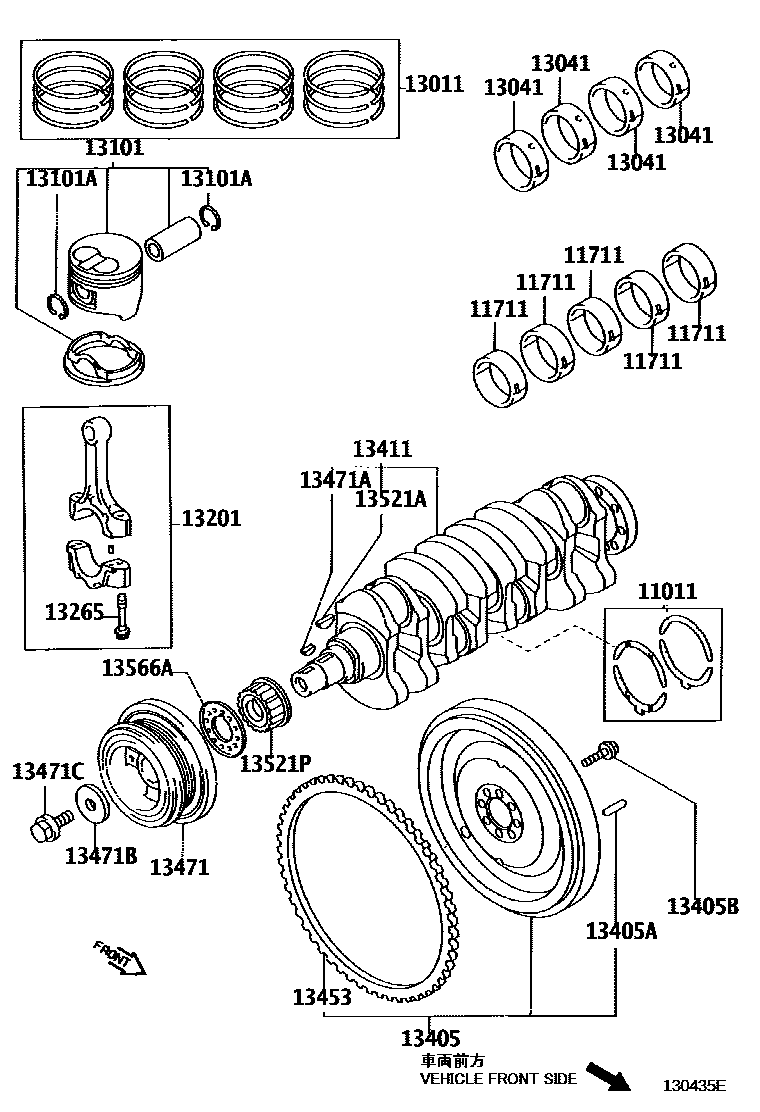

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
O/S 0.125
O/S 0.250
11711BEARING, CRANKSHAFT
MARK 1,(L),FEDERAL MOGUL
MARK 2,(L),FEDERAL MOGUL
MARK 3,(L),FEDERAL MOGUL
MARK 4,(L),FEDERAL MOGUL
MARK1,(L),FEDERAL MOGUL
MARK1,(L)
MARK2,(L)
MARK2,(L),FEDERAL MOGUL
MARK3,(L)
MARK3,(L),FEDERAL MOGUL
MARK4,(L),FEDERAL MOGUL
MARK4,(L)
PERU SPEC,MARK1,(L)
PERU SPEC,MARK2,(L)
PERU SPEC,MARK3,(L)
PERU SPEC,MARK4,(L)
MARK 1,(L),MAHLE
MARK 2,(L),MAHLE
MARK 3,(L),MAHLE
MARK 4,(L),MAHLE
MARK 1,(J)
MARK 2,(J)
MARK 3,(J)
MARK 4,(J)
main11701-22011-01i1ZZFE..ZZE122..WGN;1ZZFBE,3ZZFE..ZZE12#;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200407-200705
MARK1,(J)
main11701-22011-02i1ZZFE..ZZE122..WGN;1ZZFBE,3ZZFE..ZZE12#;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200407-200705
MARK2,(J)
MARK3,(J)
MARK4,(J)
REFER TO REPAIR MANUAL,MARK 1
REFER TO REPAIR MANUAL,MARK 2
REFER TO REPAIR MANUAL,MARK 3
REFER TO REPAIR MANUAL,MARK 4
REFER TO REPAIR MANUAL,MARK 5
REFER TO REPAIR MANUAL,MARK1
REFER TO REPAIR MANUAL,MARK2
REFER TO REPAIR MANUAL,MARK3
REFER TO REPAIR MANUAL,MARK4
REFER TO REPAIR MANUAL,MARK5
13011RING SET, PISTON
STD
STD
STD,PERU SPEC
STD
STD
STD
STD
13041BEARING, CONNECTING ROD
PERU SPEC,MARK1,(L):REFER R/M
PERU SPEC,MARK2,(L):REFER R/M
PERU SPEC,MARK3,(L):REFER R/M
REFER TO REPAIR MANUAL,MARK 1,(L),MAHLE
REFER TO REPAIR MANUAL,MARK 2,(L),MAHLE
REFER TO REPAIR MANUAL,MARK 3,(L),MAHLE
REFER TO REPAIR MANUAL,MARK 1,(L),FEDERAL MOGUL
REFER TO REPAIR MANUAL,MARK 2,(L),FEDERAL MOGUL
REFER TO REPAIR MANUAL,MARK 3,(L),FEDERAL MOGUL
REFER TO REPAIR MANUAL,MARK1,(L),FEDERAL MOGUL
REFER TO REPAIR MANUAL,MARK2,(L),FEDERAL MOGUL
REFER TO REPAIR MANUAL,MARK3,(L),FEDERAL MOGUL
REFER TO REPAIR MANUAL,MARK 1,(J)
REFER TO REPAIR MANUAL,MARK 2,(J)
REFER TO REPAIR MANUAL,MARK 3,(J)
main13041-22024-01i1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE,3ZZFE..ZZE12#..(GLI,XEI,XLI)..SED200407-200705
REFER TO REPAIR MANUAL,MARK1,(J)
MARK1,(J)
main13041-22024-01i1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE,3ZZFE..ZZE12#..(XEI,XLI)..BZ..SED200612-200803
PERU SPEC,MARK1,(J):REFER R/M
MARK2,(J)
REFER TO REPAIR MANUAL,MARK2,(J)
main13041-22024-02i1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE,3ZZFE..ZZE12#..(XEI,XLI)..BZ..SED200612-200803
PERU SPEC,MARK2,(J):REFER R/M
main13041-22024-03i1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE,3ZZFE..ZZE12#..(XEI,XLI)..BZ..SED200612-200803
PERU SPEC,MARK3,(J):REFER R/M
REFER TO REPAIR MANUAL,MARK3,(J)
MARK3,(J)
MARK 1:REFER TO REPAIR MANUAL,MARK 1
MARK 2:REFER TO REPAIR MANUAL,MARK 2
MARK 3:REFER TO REPAIR MANUAL,MARK 3
MARK 4:REFER TO REPAIR MANUAL,MARK 4
MARK 5:REFER TO REPAIR MANUAL,MARK 5
13101PISTON SUB-ASSY, W/PIN
STD,PERU SPEC
STD
STD
STD
main13101-22032i1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200508-200705
STD
STD
STD,MARK A:REFER TO REPAIR MANUAL,MARK A
STD,MARK B:REFER TO REPAIR MANUAL,MARK B
STD,MARK C:REFER TO REPAIR MANUAL,MARK C
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
PERU SPEC,(L)
(L)
MARK A
MARK B
MARK C
main13201-29176i1ZZFBE..ZZE122;1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200407-200712
PERU SPEC,(J)
13265BOLT, CONNECTING ROD
13405FLYWHEEL SUB-ASSY
PERU SPEC,TYPE A:REFER ILLUST.
PERU SPEC,(L),T/P A:REF.ILLUST
(L),T/P A:REF.ILLUST
TYPE A:REFER ILLUST.
(J),T/P A:REF.ILLUST
TYPE B:REFER ILLUST.
13405APIN, STRAIGHT(FOR FLYWHEEL)
L=23,OD=8
L=18,OD=8,PERU SPEC
L=18,OD=8
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
(L)
(J)
13453GEAR, FLYWHEEL RING
PERU SPEC,(L)
(L)
(J)
13471PULLEY, CRANKSHAFT
main13470-22021i1ZZFBE..ZZE122;1ZZFE..ZZE122..WGN;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200205-200705
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471BWASHER, PLATE(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-12127i1ZZFE..ZZE122..WGN;1ZZFBE,3ZZFE..ZZE12#;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200205-200705
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0D020i1ZZFE..ZZE122..WGN;1ZZFBE,3ZZFE..ZZE12#;1ZZFE..ZZE122..ATM..SEG..SED;1ZZFE..ZZE122..(GLI,XEI)..SED200205-200705
(L)
PERU SPEC,(L)
(J)
13521AKEY(FOR CRANKSHAFT TIMING GEAR)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
21 parts on this diagram · 2 diagrams in section
