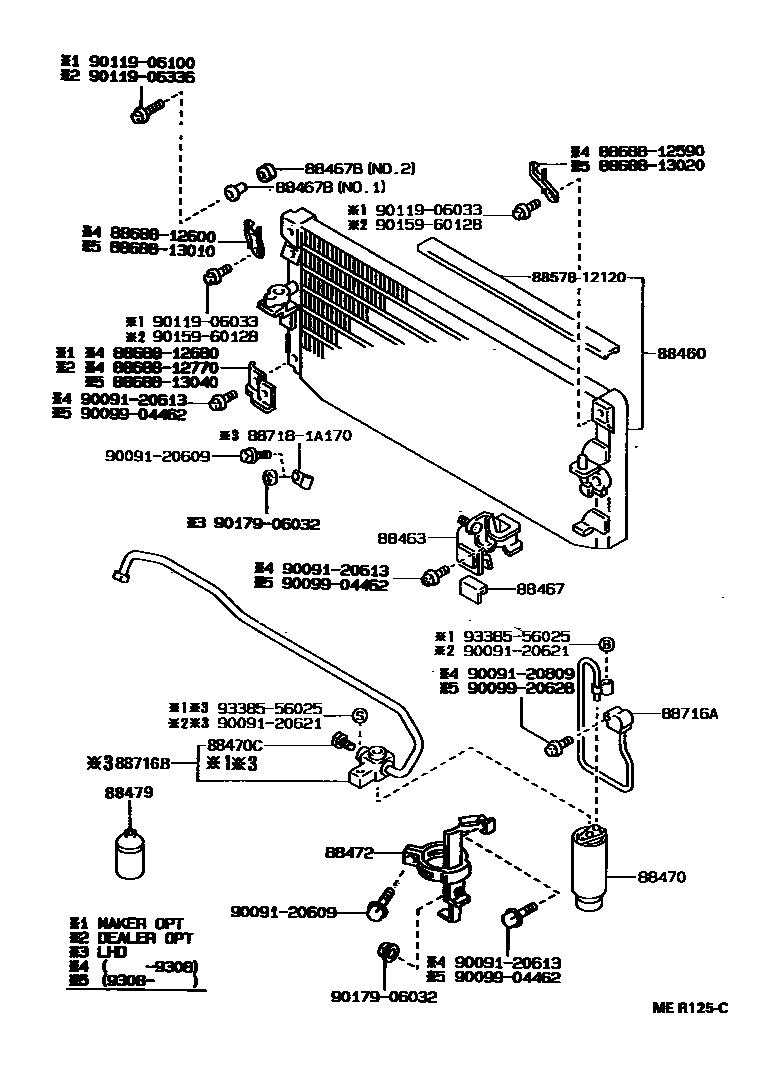

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1MAKER OPT 0004 1DEALER OPT 0005 1 0006 1O RING

88460CONDENSER ASSY, COOLER

main88460-12370iAE95199009-199308

main88460-12430iAE95199308-199508

88463BRACKET, COOLER CONDENSER, NO.1

main88463-12041iAE95199009-199308

main88463-13010iAE95199308-199508

88467CUSHION, COOLER CONDENSER, NO.1

main88467-12081×2iAE95199009-199508

88467BINSULATOR, COOLER CONDENSER MOUNTING

main88467-14070×4iAE95; AE95..GEN199009-199508

NO.1

main88467-20040×2iAE95; AE95..GEN199009-199508

NO.2

88470RECEIVER & DRYER ASSY, COOLER

main88471-16040iAE95199009-199308

main88471-34010iAE95199308-199508

88470CBOLT, FUSE

main88475-12020iAE95199009-199308

88472BRACKET, RECEIVER TANK, NO.1

main88473-12070iAE95199009-199308

main88473-13010iAE95199308-199508

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02004×2iAE95199009-199301

250G

main90986-02007iAE95..GEN199308-199508

250G

main90986-02008×2iAE95..GEN199308-199508

200G

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88726-12340iAE95199009-199308

main88726-12390iAE95199308-199508

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88726-12251iAE95..LHD199009-199308

main88726-12280iAE95..RHD199009-199308

main88726-12380iAE95..RHD199308-199508

main88726-13020iAE95..LHD199308-199508

8857812120PAKING, COOLER AIR DUCT

main88578-12120

8868812590BRACKET, COOLER DIAPHRAGM

main88688-12590

8868812600BRACKET, COOLER DIAPHRAGM

main88688-12600

8868812680BRACKET, COOLER DIAPHRAGM

main88688-12680

8868812770BRACKET, COOLER DIAPHRAGM

main88688-12770

8868813010BRACKET, COOLER DIAPHRAGM

main88688-13010

8868813020BRACKET, COOLER DIAPHRAGM

main88688-13020

8868813040BRACKET, COOLER DIAPHRAGM

main88688-13040

887181A170PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A170

9009120609

main90091-20609

9009120613

main90091-20613

9009120621

main90091-20621

9009120809

main90091-20809

9009904462

main90099-04462

9009920628

main90099-20628

9011906033

main90119-06033

9011906100

main90119-06100

9011906336

main90119-06336

9015960128

main90159-60128

9017906032

main90179-06032

9338556025

main93385-56025

31 parts on this diagram · 6 diagrams in section
