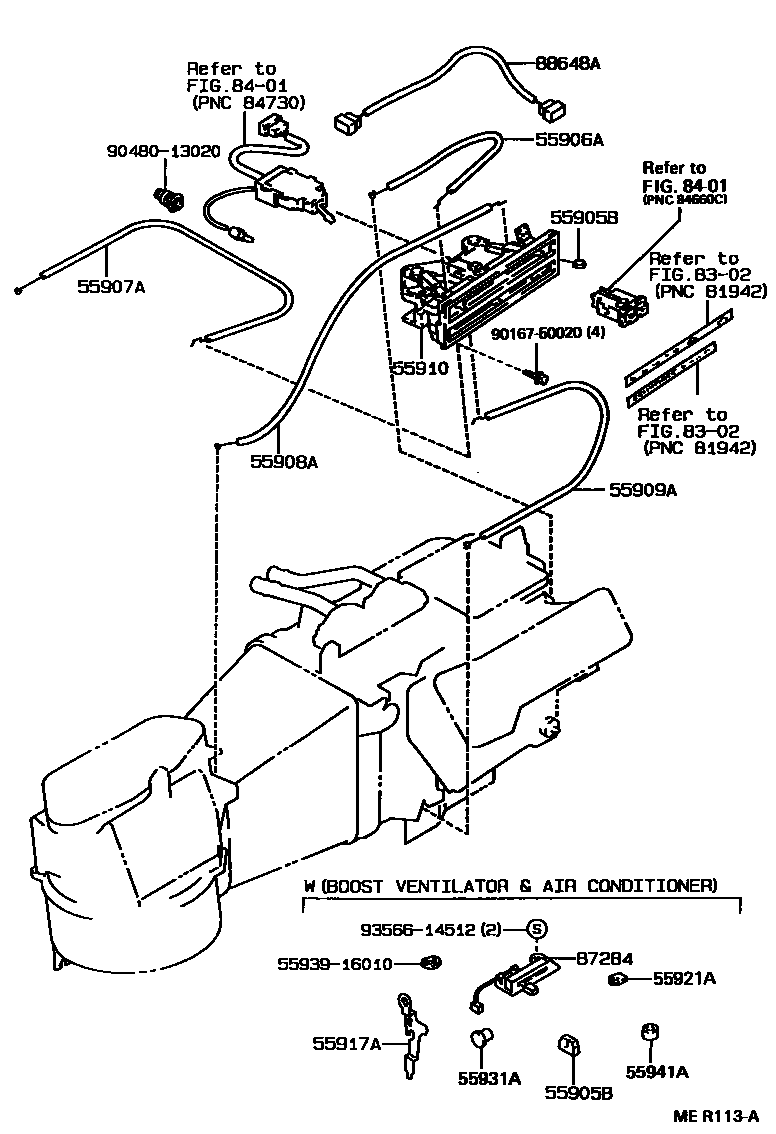

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1

55905BKNOB, HEATER CONTROL, NO.2

main55905-12130iAE95..GEN199009-199308

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-12250iAE95..RHD199009-199508

main55906-12300iAE95..LHD199009-199508

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-12320iAE95..RHD199009-199508

main55907-12330iAE95..LHD199009-199508

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-12230iAE95199009-199508

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-12190iAE95199009-199508

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-12441iAE95..RHD199308-199508

main55910-12451iAE95..RHD..GEN199009-199308

W(*BV)

main55910-12461iAE95..LHD199009-199308

main55910-12480iAE95..LHD199009-199308

W(*BV & AIR CONDITIONER)

main55910-12491iAE95..LHD199009-199308

W(*BV)

main55910-12521iAE95..RHD..GEN199009-199308

W(*BV & AIR CONDITIONER)

55917ALEVER, TEMPERATURE DAMPER CONTROL

main55917-12100iAE95..GEN199009-199308

55921ARETAINER, HEATER CONTROL

main55921-14110iAE95..GEN199009-199308

55931ASHAFT, HEATER CONTROL LEVER

main55931-12020iAE95..GEN199009-199308

55941AGUIDE, HEATER CONTROL

main55941-12020iAE95..GEN199009-199308

8302INDICATOR

→ Go to FIG 83-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87284RESISTOR SUB-ASSY, VARIABLE

main88032-12100iAE95..LHD; AE95..RHD..GEN199009-199308

88648AWIRING, COOLER

main88648-12340iAE95..LHD199009-199508

5593916010ORNAMENT, HEATER CONTROL

main55939-16010

9016750020

main90167-50020

9048013020

main90480-13020

9356614512

main93566-14512

18 parts on this diagram · 3 diagrams in section
