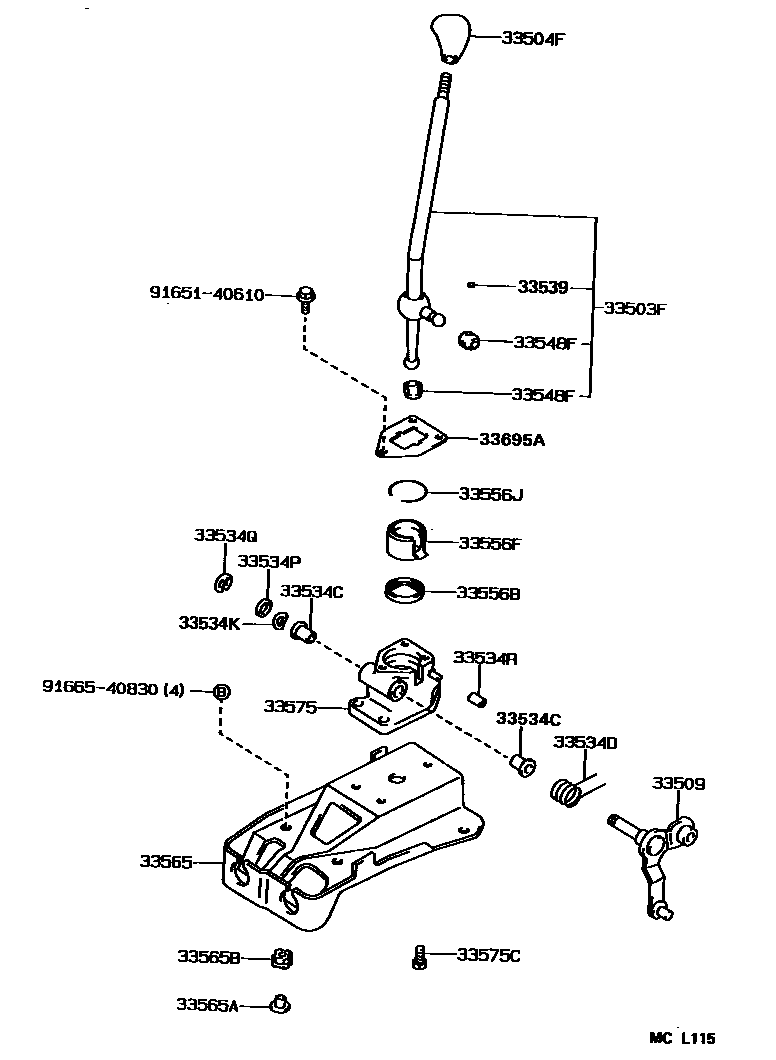

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33503-12382iAE95..RHD..5F199009-199109

main33503-12402iAE95..LHD199009-199109

main33503-12470iAE95..4FC199009-199508

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-12180-J2iAE95..LHD199308-199508

DARK BLUE,TRIM8#

main33504-12180-P0iAE95..5F199109-199508

SHADOW GRAY,TRIM1#

main33504-24010-B3iAE95..5F199009-199109

SHADOW GRAY,TRIM1#

main33504-24010-J0iAE95..5F199009-199109

DARK BLUE,TRIM8#

main33542-20080-03iAE95..4FC199009-199508

GRAY,TRIM1#

main33542-20080-04iAE95..4FC199009-199308

BLUE,TRIM8#

33509CRANK SUB-ASSY, SELECTING BELL, NO.1

main33509-12071iAE95..5F199009-199109

33534CBUSH (FOR SELECTING BELLCRANK NO.1)

main90386-12034×2iAE95..5F199009-199109

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-20084iAE95..5F199009-199109

33534KWASHER, WAVE (FOR SELECTING BELLCRANK NO.1)

main90206-12003iAE95..5F199009-199109

33534PWASHER, PLATE (FOR SELECTING BELLCRANK NO.1)

main90201-12052iAE95..5F199009-199109

33534QRING, E (FOR SELECTING BELLCRANK NO.1)

main96160-00900iAE95..5F199009-199109

33534RCUSHION (FOR SELECTING BELLCRANK NO.1)

main90540-06029iAE95..5F199009-199109

33539CUSHION, SHIFT LEVER ANTI-RATTLE

main33539-12010×2iAE95..5F199009-199109

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12040×2iAE95..5F199009-199109

33556BBUSH (FOR TRANSMISSION SHIFT LEVER BALL SEAT)

main90385-34001iAE95..5F199009-199109

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20020iAE95..5F199009-199109

33556JRING, SHAFT SNAP (FOR TRANSMISSION SHIFT LEVER SEAT)

main90520-36018iAE95..5F199009-199109

33565PLATE, CONTROL SHIFT LEVER RETAINER

main33565-12030iAE95..5F199009-199109

33565ABUSH, NO.1 (FOR CONTROL SHIFT LEVER RETAINER PLATE)

main90389-08031×4iAE95..5F199009-199109

33565BBUSH, NO.2 (FOR CONTROL SHIFT LEVER RETAINER PLATE)

main90389-10020×4iAE95..5F199009-199109

33575RETAINER, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33575-12133iAE95..5F199009-199109

33575CBOLT (FOR CONTROL SHIFT LEVER RETAINER)

main90119-08622×3iAE95..5F199009-199109

33695ACOVER, SHIFT LEVER BALL

main33695-12031iAE95..5F199009-199109

9165140610

main91651-40610

9166540830

main91665-40830

22 parts on this diagram · 5 diagrams in section
