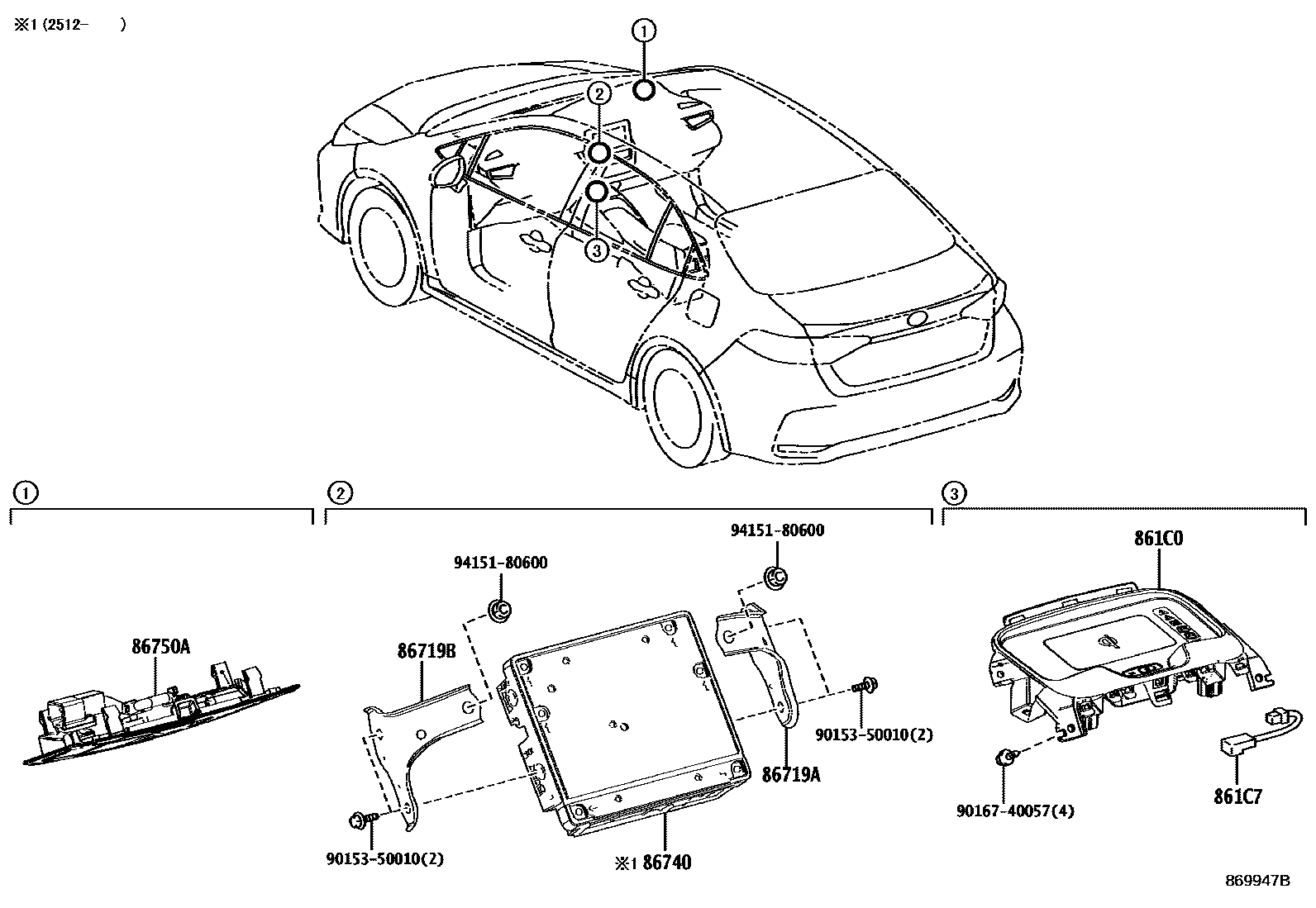

TELEPHONE & MAYDAY

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-02110i202306-202410

861C7CORD, MOBILE WIRELESS CHARGER

main861C7-02030i202306-202410

86719ABRACKET, TELEPHONE NO.1

main86719-0A030i202305-202404

SAUDI ARABIA SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL); SAUDI ARABIA SPEC&UP GRADE PACKAGE&DATA COMMUNICATION MODULE-WITH(E-CALL)

main86719-12010i202405

SAUDI ARABIA SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL),MARK = 4R; SAUDI ARABIA SPEC&UP GRADE PACKAGE&DATA COMMUNICATION MODULE-WITH(E-CALL),MARK = 4R

86719BBRACKET, TELEPHONE NO.2

main86719-0A040i202305-202404

SAUDI ARABIA SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL); SAUDI ARABIA SPEC&UP GRADE PACKAGE&DATA COMMUNICATION MODULE-WITH(E-CALL)

main86719-12020i202405

SAUDI ARABIA SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL),MARK = 4L; SAUDI ARABIA SPEC&UP GRADE PACKAGE&DATA COMMUNICATION MODULE-WITH(E-CALL),MARK = 4L

86740TRANSCEIVER ASSY, TELEPHONE

86750ASWITCH ASSY, MAYDAY

main86750-16010-A0i202305

SAUDI ARABIA SPEC&DATA COMMUNICATION MODULE-WITH(E-CALL),FROMAGE,TRIM0#

9015350010

main90153-50010

9016740057

main90167-40057

9415180600

main94151-80600

9 parts on this diagram · 1 diagram in section
