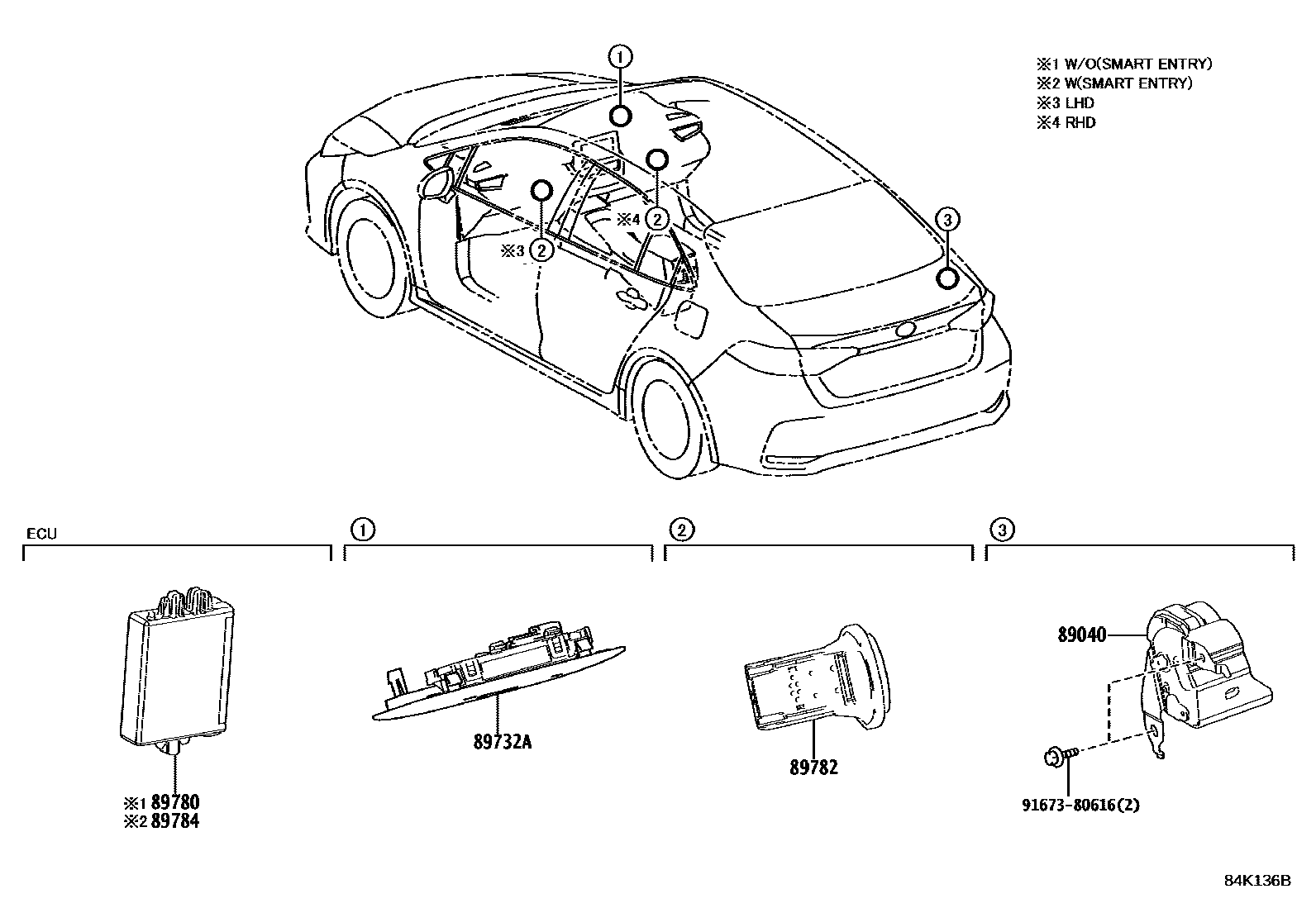

ANTI-THEFT DEVICE

89040SIREN ASSY, THEFT WARNING

main89040-02070iZRE211..MA202306

89732ASENSOR, THEFT WARNING ULTRASONIC

main897E0-12020-A0iZRE211..E..MA202306

FROMAGE,TRIM0#,2#

main897E0-12020-C0iZRE211..X..MA202411

BLACK,TRIM2#

89780COMPUTER ASSY, TRANSPONDER KEY

main897H0-02040iZRE210..D..GEN201908-202306

main897H0-26010iMZEA12,ZRE210,ZWE211..D..GCC201904-202005

UP GRADE PACKAGE

main897H0-V3010iMZEA1#,ZRE210,ZWE211..D..GCC202006-202305

UP GRADE PACKAGE

89782COIL, TRANSPONDER KEY

main89782-02130iZWE211..E201908-202112

main89782-12060iMZEA17,18,ZRE217,ZWE211..D202305

89784COMPUTER, IMMOBILIZER CODE

main89784-02140iZWE211..MA201908-202112

main89784-02200iZRE211..X..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..(E,G,V,X)..(GEN,IDN,MA,SGP,TH,VN)202306

main89784-12040iMZEA1#,ZRE21#,ZWE211..(G,N,V)..(GCC,TAIW)201904-202209

main89784-42060iMZEA1#,ZRE210,ZWE211..D..GCC; MZEA1#,ZRE210,ZWE211..N..GCC202209-202305

UP GRADE PACKAGE

9167380616

main91673-80616

6 parts on this diagram · 1 diagram in section
