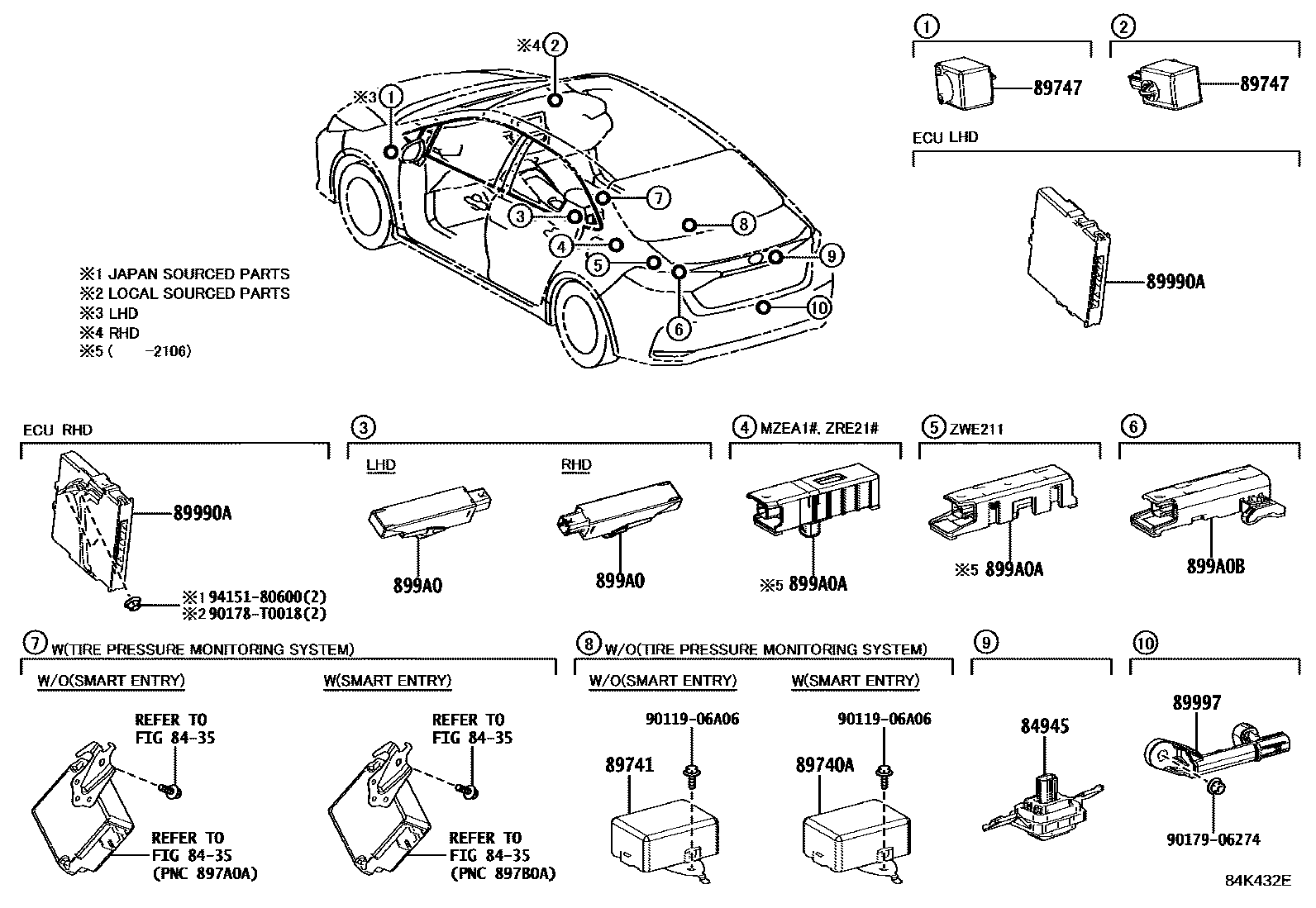

WIRELESS DOOR LOCK

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

84945SWITCH, LUGGAGE ELECTRICAL KEY

main84945-12100iZRE211,ZWE211..(G,V)..TAIW201904-202304

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-02250iZRE211,ZWE211..(G,V)..PHL202306-202410

89741RECEIVER, DOOR CONTROL

main89741-02450iZRE210,211..D202306

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iZWE211..MA201904-202112

89990ACOMPUTER ASSY, SMART KEY

main899H0-12120iZRE211..E..TAIW; ZRE211..G..TAIW;MZEA1#,ZRE210..N,V201904-202108

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main899H0-12121iZRE210..V;ZRE211..VN202108-202306

main899H0-12130iZWE211..LHD..(N,V)201904-202108

main899H0-12131iZWE211..(E,N,V)..(GCC,TAIW)202304-202405

main899H0-12132iZWE211..(E,N,V)..(GCC,TAIW); ZWE211..D202406

UP GRADE PACKAGE

main899H0-12140iZRE210..TH; ZRE211..IDN201908-202011

LOW GRADE PACKAGE

main899H0-12141iZRE210,211..(E,G)..(GEN,MA,SGP,TH)202108-202306

main899H0-12150iZWE211..(G,V)..TH;ZWE211..GEN,MA,SGP201908-202108

main899H0-12151iZWE211..MA202108-202112

main899H0-12240iZRE211..IDN202011-202108

main899H0-12241iZRE211..IDN202108-202207

main899H0-12242iZRE211..IDN202208-202306

main899H0-12243iZRE211..IDN202402

main899H0-12250iZWE211..IDN202011-202108

main899H0-12251iZWE211..IDN202108-202207

main899H0-12252iZWE211..IDN202306-202401

main899H0-12253iZWE211..IDN202402

main899H0-12261iZRE210,211..LHD..(E,G,V)..(GEN,PHL,VN)202306-202410

main899H0-12262iZRE211..X..PHL;ZRE210,211..LHD..(GEN,VN)202411

main899H0-12271iZWE211..PHL,VN202306-202410

main899H0-12272iZWE211..VN;ZWE211..X..PHL202411

main899H0-12282iZRE210,211..(E,G,X)..(GEN,MA,SGP,TH)202306

main899H0-12291iZWE211..V..TH202306-202410

89997ANTENNA, ELECTRICAL KEY

main89997-30100iZRE211..X..PHL;ZRE211..IDN,MA,TH,VN;ZWE211..(G,X)..(PHL,TH);ZWE211..(E,N,V,X)..(GCC,GEN,IDN,SGP,TAIW,VN);MZEA11,12,ZRE210,218..(E,G,N,V,X)..(GCC,GEN,SGP,TAIW,TH)202304

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-02260iZRE211..X..PHL;ZRE211..IDN,MA,TH,VN;ZWE211..(G,X)..(PHL,TH);ZWE211..(E,N,V,X)..(GCC,GEN,IDN,SGP,TAIW,VN);MZEA11,12,ZRE210,218..(E,G,N,V,X)..(GCC,GEN,SGP,TAIW,TH)202304

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-02270iZRE210..V;ZRE211..G..TAIW;ZRE211..RHD..(E,G);MZEA1#,ZRE210..(E,G,N)..(GCC,GEN,SGP,TH); ZRE211..E..TAIW201904-202106

WIRELESS DOOR LOCK-WITH(SMART ENTRY & PANIC BUTTON)

main899A0-02290iZWE211..(G,V)..TH;ZWE211..(N,V)..(GCC,GEN,IDN,MA,PHL,SGP,TAIW)201904-202106

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-02280iZRE211..G..PHL;ZWE211..V..(PHL,TH)202304-202410

9011906A06

main90119-06A06

90178T0018

main90178-T0018

9017906274

main90179-06274

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
