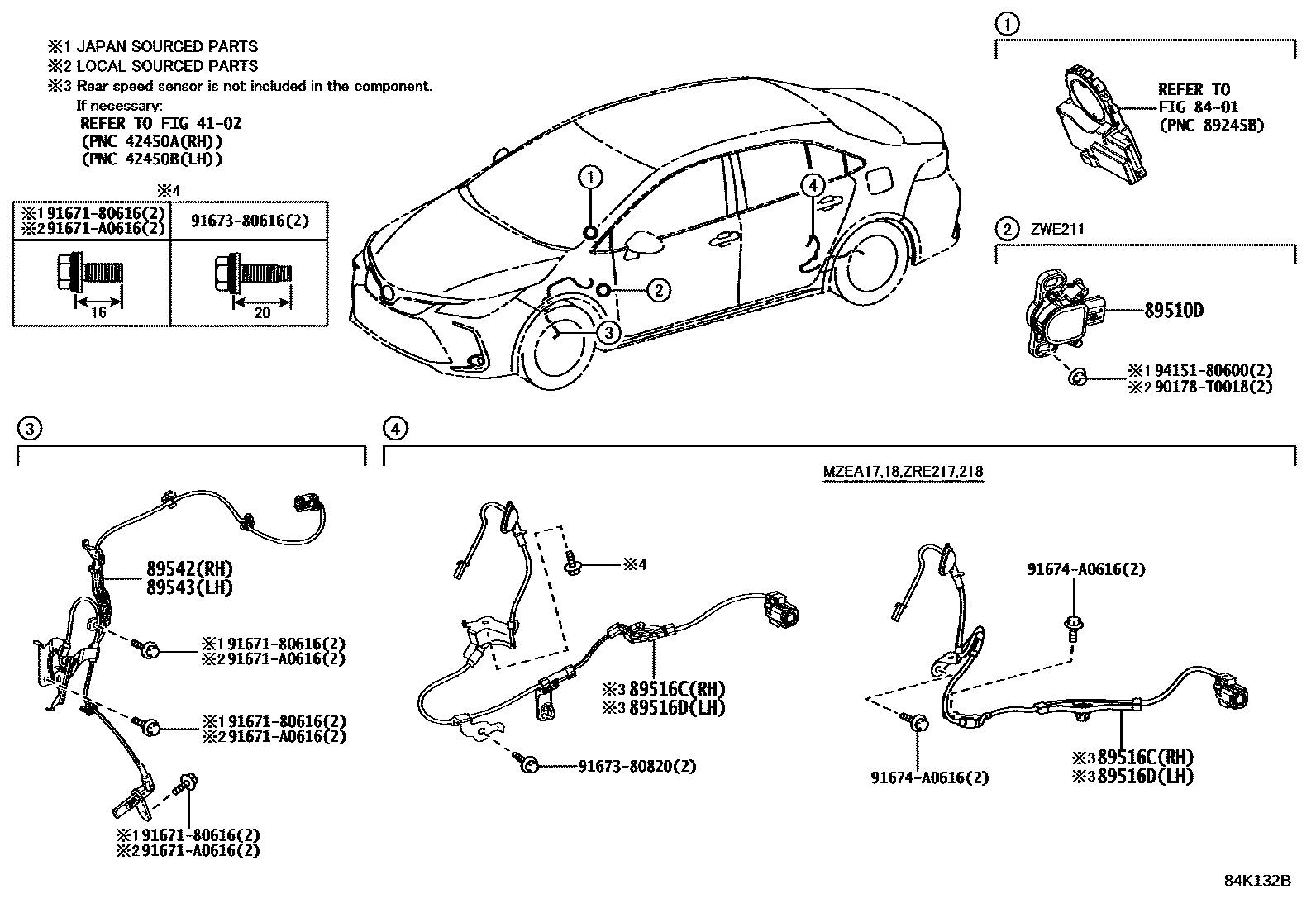

ABS & VSC

0001 1 0002 1

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iZWE211..(G,X)..TH;ZWE211..GEN,IDN,SGP202306

main89510-47040iZWE211..X..PHL;ZWE211..GCC,TAIW,VN202304

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-02310iZRE210..6F201908-202112

main89516-12210iMZEA17,18,ZRE217,218202304

main89516-47110iMZEA1#,ZRE210,ZWE211..GCC201904-202305

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-02320iZRE210..6F201908-202112

main89516-12220iMZEA17,18,ZRE217,218202304

main89516-47120iZWE211..GCC,TAIW;MZEA11,12,ZRE210..N,X202304

89542SENSOR, SPEED, FRONT RH

main89542-02190iZRE211..TAIW202304-202405

89543SENSOR, SPEED, FRONT LH

main89543-02190iZRE211,ZWE211..TAIW201904-202304

90178T0018

main90178-T0018

9167180616

main91671-80616

91671A0616

main91671-A0616

9167380616

main91673-80616

9167380820

main91673-80820

91674A0616

main91674-A0616

9415180600

main94151-80600

14 parts on this diagram · 2 diagrams in section
