SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-02120-C0iZWE211..V..TH;ZRE211..G..PHL201908-202410

BLACK,TRIM0#,2#

main73023-02120-C0iZWE211..V..TH;ZRE211..G..PHL201908-202410

BLACK,TRIM2#

main73023-02120-C0iZRE210..D..PHL201908-202112

BLACK,TRIM0#,1#

main73023-02120-C0iZRE210..D..PHL201908-202306

BLACK,TRIM1#

main73023-02120-C0iZRE211,ZWE211..IDN201908-202306

BLACK,TRIM0#,1#,2#

main73023-02130-C0iZRE211,ZWE211..(G,V)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main73023-02130-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#

main73023-02130-C0iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

main73023-02130-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

main73023-02130-C0iZWE211..V..TAIW202304

BLACK,TRIM2#,3#

main73023-02130-C0iZWE211..V..TAIW202304

BLACK,TRIM2#

main73023-02130-C0iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-02120-C0iZRE210..D..PHL201908-202306

BLACK,TRIM1#

main73024-02120-C0iZRE210..D..PHL201908-202112

BLACK,TRIM0#,1#

main73024-02120-C0iZRE210..D..PHL201908-202410

BLACK,TRIM0#,2#

main73024-02120-C0iZRE211..X;ZWE211..IDN;ZRE210,211..IDN,TH;ZWE211..(G,X)..(PHL,SGP,TH)201908-202410

BLACK,TRIM2#

main73024-02120-C0iZRE211,ZWE211..IDN201908-202306

BLACK,TRIM0#,1#,2#

main73024-02130-C0iZWE211..V..TAIW202304

BLACK,TRIM2#,3#

main73024-02130-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#

main73024-02130-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#,3#

main73024-02130-C0iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

main73024-02130-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

main73024-02130-C0iZWE211..V..TAIW202304

BLACK,TRIM2#

main73024-02130-C0iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iMZEA11,12,ZRE210..N,X;ZWE211..(G,X)..(PHL,TH);ZWE211..GCC,GEN,IDN,SGP,TAIW,VN;ZRE210,211..GEN,IDN,MA,SGP,TH,VN;MZEA17,18,ZRE211,217,218..(D,E,X)..(GCC,PHL,TAIW)201904-202410

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02130iZRE211..TAIW201904-202405

main73200-02140iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN201908-202410

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02750-C1iZWE211..V..TAIW202304

BLACK,TRIM2#

main73210-02750-C1iZRE218,ZWE211..TAIW202304

LOW GRADE PACKAGE,BLACK,TRIM2#,3#

main73210-02750-C1iZRE211..TAIW202304-202405

BLACK,TRIM3#

main73210-02750-C1iZRE211,ZWE211..(D,E,V)..TAIW201904-202304

BLACK,TRIM1#,2#

main73210-02750-C1iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

main73210-02750-C1iZRE211..G..TAIW201904-202108

BLACK,TRIM1#,2#,3#

main73210-02750-C1iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

main73210-02750-D0iMZEA12..TAIW202405

BLACK/RED,TRIM2#

main73210-02780-C2iZWE211..GEN;ZRE211..E..MA;ZWE211..(G,V)..TH201908-202410

BLACK,TRIM2#

main73210-02780-C2iZWE211..GEN;ZRE211..E..MA;ZWE211..(G,V)..TH201908-202306

BLACK,TRIM0#,2#

main73210-02780-C2iZRE210..RHD201908-202306

BLACK,TRIM0#,1#,2#

main73210-02780-C2iZWE211..E201908-202112

BLACK,TRIM0#,1#

main73210-02780-D0iZRE211,ZWE211..RHD..X202411

BLACK/RED,TRIM2#

main73210-06450-C4iZRE211..D;ZRE210,211,ZWE211..LHD..(E,G,V)..(GEN,VN)201908-202410

BLACK,TRIM0#,2#

main73210-06450-C4iZWE211..PHL202306-202410

BLACK,TRIM2#

main73210-06450-C4iZRE210..E..PHL201908-202306

BLACK,TRIM1#

main73210-06450-D0iZRE211,ZWE211..LHD..X202411

BLACK/RED,TRIM2#

73214PLATE, FRONT SEAT BELT ANCHOR

main73214-0K010iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202410

(L)

main73214-75010iZRE211..(D,X)..PHL;ZRE211..IDN,MA,TH,VN;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);MZEA12,ZRE210..GEN,SGP,TAIW,TH201908-202410

(J)

main73214-75010iZRE211,ZWE211..TAIW201904-202305

main73214-75010iZRE211..TAIW202304-202405

X PACKAGE,(J)

main73214-75010iMZEA11,12,ZRE210..N;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

LOW GRADE PACKAGE,(J)

73219STOPPER, TONGUE PLATE

main73219-33010iZRE211,ZWE211..TAIW201904-202410

BLACK

main73219-33020iMZEA1#,ZRE210,ZWE211..GCC201904-202410

GRAY

main73219-33030iZRE211..G..PHL;ZWE211..V..(PHL,TH)201904-202410

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02670-C1iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

main73220-02670-C1iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

main73220-02700-C2iZRE211..G..PHL201908-202410

BLACK,TRIM0#,2#

main73220-02700-C2iZRE211..G..PHL202306-202410

BLACK,TRIM2#

main73220-02700-C2iZRE210..CVT..D..PHL201908-202306

BLACK,TRIM1#

main73220-02700-D0iZRE211,ZWE211..LHD..X202411

BLACK/RED,TRIM2#

main73220-02710-C0iZWE211..V..TAIW202304

LOW GRADE PACKAGE,BLACK,TRIM2#,3#

main73220-02710-C0iZRE211..G..TAIW201904-202108

BLACK,TRIM1#,2#,3#

main73220-02710-C0iZRE211,ZWE211..(D,E,V)..TAIW201904-202304

BLACK,TRIM1#,2#

main73220-02710-C0iZWE211..V..TAIW202304

BLACK,TRIM2#

main73220-02710-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

main73220-02710-D0iMZEA12..TAIW202405

BLACK/RED,TRIM2#

main73220-06420-C4iZRE210,211,ZWE211..RHD..(D,E,G,N,V)..(GEN,MA,SGP)201908-202306

BLACK,TRIM0#,2#

main73220-06420-C4iZWE211..E201908-202112

BLACK,TRIM0#,1#

main73220-06420-C4iZRE210..RHD201908-202306

BLACK,TRIM0#,1#,2#

main73220-06420-C4iZRE210..RHD201908-202410

BLACK,TRIM2#

main73220-06420-D0iZRE211,ZWE211..RHD..X202411

BLACK/RED,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02D60-C0iMZEA1#,ZRE210,ZWE211..GCC201904-202102

BLACK,TRIM1#,2#

main73230-02D60-C0iZRE211,ZWE211..(G,V)..TAIW201904-202102

BLACK,TRIM1#,2#,3#

main73230-02D60-C0iZRE211,ZWE211..(G,V)..TAIW201904-202102

BLACK,TRIM0#,1#

main73230-02D60-C0iZRE211,ZWE211..(G,V)..TAIW201904-202102

FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM1#,2#

main73230-02D61-C0iZRE218,ZWE211..(D,E)..TAIW202304

BLACK,TRIM2#

main73230-02D61-C0iZRE211..G..TAIW202102-202108

BLACK,TRIM1#,2#,3#

main73230-02D61-C0iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

main73230-02D61-C0iZRE211,ZWE211..(D,E,V)..TAIW202102-202304

BLACK,TRIM1#,2#

main73230-02D61-C0iMZEA1#,ZRE210,ZWE211..GCC202102-202305

BLACK,TRIM0#,1#

main73230-02F70-C0iMZEA12,ZWE211..(V,X)..TAIW202304

BLACK,TRIM2#

main73230-02F70-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

main73230-02F70-C0iZWE211..V..TAIW202304

LOW GRADE PACKAGE,BLACK,TRIM2#,3#

main73230-06830-C0iZRE211..IDN201908-202306

BLACK,TRIM0#,1#,2#

main73230-06830-C0iZRE211..IDN201908-202306

BLACK,TRIM2#

main73230-06830-C0iZWE211..E201908-202112

BLACK,TRIM0#,1#

main73230-06840-C0iZRE211..IDN201908-202306

FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM2#

main73230-06840-C0iZRE211..IDN201908-202306

FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM0#,1#,2#

main73230-06840-C0iZRE210..SGP201908-202306

BLACK,TRIM2#

main73230-06840-C0iZRE210..SGP201908-202306

BLACK,TRIM0#,1#,2#

main73230-06840-C0iZRE210..SGP201908-202306

BLACK,TRIM0#,2#

main73230-06860-C0iZRE210..CVT..D..PHL201908-202306

BLACK,TRIM1#

main73230-06860-C0iZRE210..CVT..D..PHL201908-202306

BLACK,TRIM0#,2#

main73230-0A060-C0iZRE210,ZWE211..RHD..(D,G,V)..(GEN,SGP)202306

BLACK,TRIM2#

main73230-0A060-C0iZRE210..TH202306

BLACK,TRIM0#,2#

main73230-0A070-C0iZRE210,211,ZWE211..RHD..(E,N)202306

BLACK,TRIM0#,2#

main73230-0A070-C0iZWE211..V..TH202306-202410

BLACK,TRIM2#

main73230-0A070-C0iZRE210,211,ZWE211..RHD..(E,N)202306

FRONT SEAT-*DRS:POWER SEAT & *PAS:MANUAL SEAT,BLACK,TRIM0#,2#

main73230-0A080-C0iZRE211,ZWE211..LHD..X202306-202410

BLACK,TRIM2#

main73230-0A080-C0iZRE211..D;ZRE210,211,ZWE211..LHD..(E,G,V)..(GEN,VN)202306

BLACK,TRIM0#,2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C1iZWE211..MA;ZRE210..E..PHL201908-202306

BLACK,TRIM1#

main73233-60020-C1iZWE211..MA;ZRE210..E..PHL201908-202410

BLACK,TRIM0#,2#

main73233-60020-C1iZRE211,ZWE211..(D,E,V)..TAIW201904-202304

BLACK,TRIM1#,2#

main73233-60020-C1iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

main73233-60020-C1iZRE211,ZWE211..IDN201908-202410

BLACK,TRIM2#

main73233-60020-C1iZRE211,ZWE211..IDN201908-202306

BLACK,TRIM0#,1#,2#

main73233-60020-C1iZRE211..G..TAIW201904-202108

BLACK,TRIM1#,2#,3#

main73233-60020-C1iZWE211..V..TAIW202304

LOW GRADE PACKAGE,BLACK,TRIM2#,3#

main73233-60020-C1iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

main73233-60020-C1iZRE211..TAIW202304-202405

BLACK,TRIM3#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02D00-C0iZRE211..G..TAIW201904-202304

BLACK,TRIM1#,2#

main73230-02D00-C0iZWE211..V..TAIW202304

BLACK,TRIM2#

main73230-02D10-C0iMZEA1#,ZRE210,217,ZWE211..GCC202305

BLACK,TRIM0#

main73230-02D10-C0iZRE211..G..TAIW201904-202108

BLACK,TRIM1#,2#,3#

main73230-02D10-C0iZRE211..(D,E)..TAIW201904-202304

BLACK,TRIM1#,2#

main73230-02D10-C0iZRE211..(D,E)..TAIW201904-202304

FRONT SEAT-*DRP:MANUAL SEAT,BLACK,TRIM1#,2#,3#

main73230-02D10-C0iMZEA1#,ZRE210,ZWE211..GCC201904-202305

BLACK,TRIM0#,1#

main73230-02D10-C0iZRE211..TAIW202304-202405

BLACK,TRIM3#

main73230-02D10-C0iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

BLACK,TRIM2#

main73230-02D10-C0iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW202304

LOW GRADE PACKAGE,BLACK,TRIM2#,3#

main73230-02G10-C0iZWE211..V..TH202306-202410

BLACK,TRIM2#

main73230-06830-C0iZRE210..D..PHL201908-202306

BLACK,TRIM0#,2#

main73230-06830-C0iZRE210..D..PHL201908-202306

BLACK,TRIM1#

main73230-06840-C0iZRE211..VN;ZRE210,ZWE211..V..(PHL,VN)201908-202306

BLACK,TRIM0#,2#

main73230-06860-C0iZRE211,ZWE211..IDN201908-202306

BLACK,TRIM2#

main73230-06860-C0iZRE211,ZWE211..IDN201908-202306

BLACK,TRIM0#,1#,2#

main73230-06860-C0iZRE211,ZWE211..IDN201908-202306

BLACK,TRIM0#,2#

main73230-06860-C0iZWE211..MA201908-202112

BLACK,TRIM0#,1#

main73230-06860-C0iZWE211..SGP202201-202306

MIDDLE GRADE PACKAGE,BLACK,TRIM2#

main73230-06870-C0iZRE211..TH202201-202306

BLACK,TRIM2#

main73230-06870-C0iZWE211..V..TH201908-202306

BLACK,TRIM0#,2#

main73230-0A060-C0iZRE211..D202306

BLACK,TRIM0#,2#

main73230-0A070-C0iZRE211,ZWE211..LHD..X202306-202410

BLACK,TRIM2#

main73230-0A070-C0iZRE210,211,ZWE211..LHD..(E,G,V)..(GEN,VN)202306

BLACK,TRIM0#,2#

main73230-0A080-C0iZRE210,211,ZWE211..RHD..(D,E,G,N,V)..(GEN,MA,SGP)202306

BLACK,TRIM0#,2#

main73230-0A080-C0iZRE210,211,ZWE211..RHD..(D,E,G,N,V)..(GEN,MA,SGP)202306

BLACK,TRIM2#

9010510523

main90105-10523

9010511053

main90105-11053

90105T0056

main90105-T0056

90105T0064

main90105-T0064

90105T0378

main90105-T0378

9010911066

main90109-11066

9017811002

main90178-11002

90178T0017

main90178-T0017

90178T0106

main90178-T0106

9017911010

main90179-11010

9155380612

main91553-80612

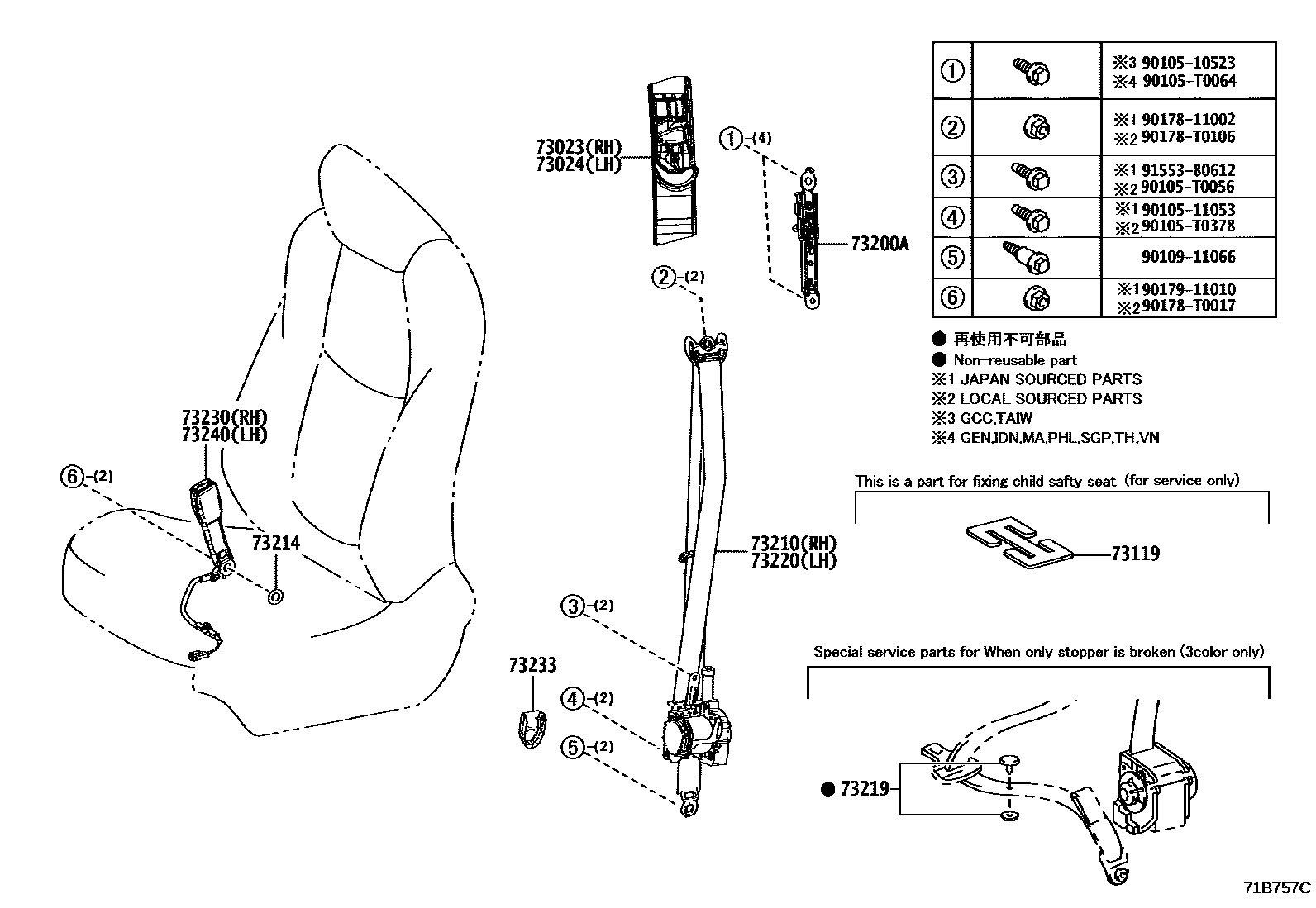

22 parts on this diagram · 2 diagrams in section
