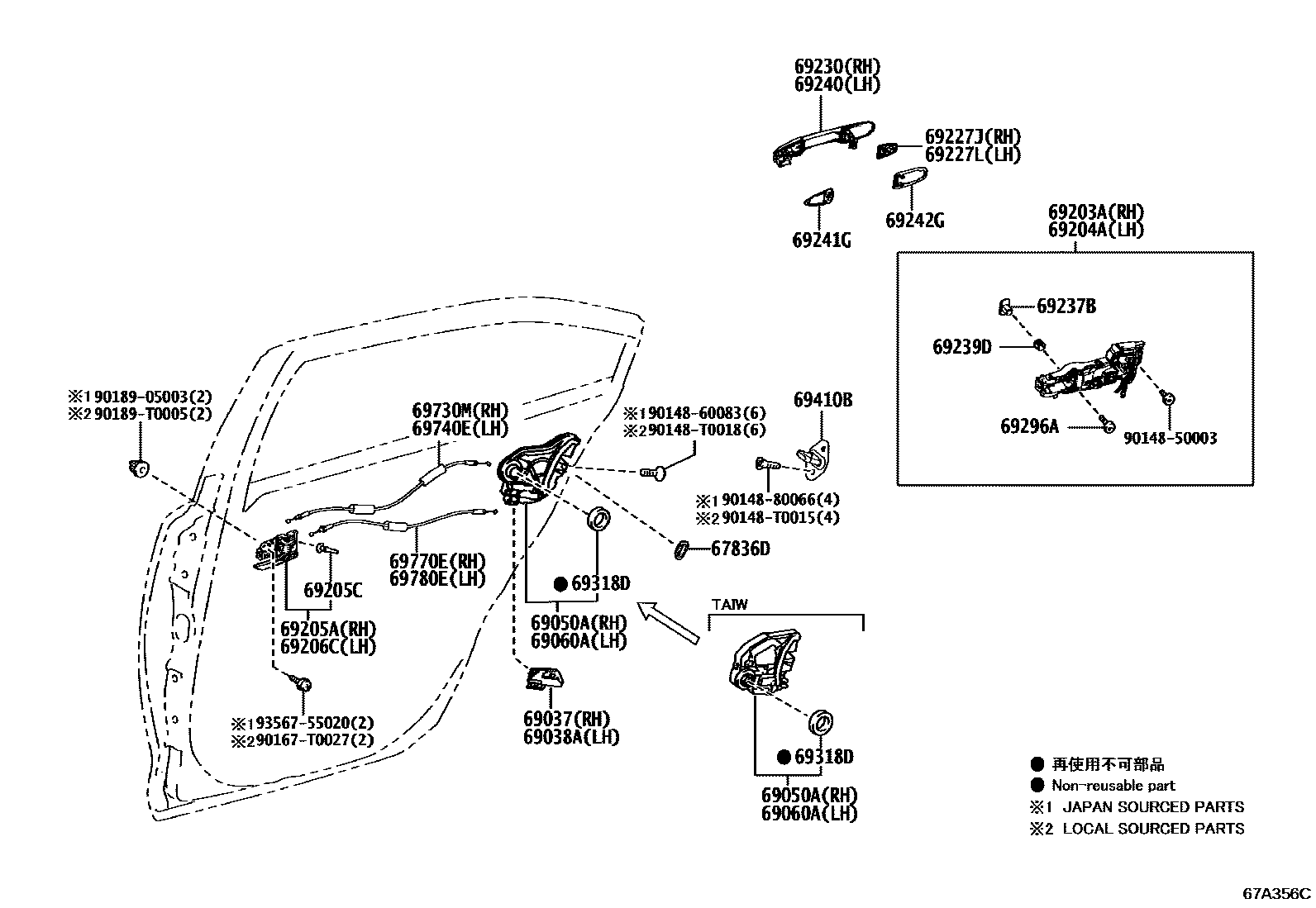

REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-33030×2iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201904-202306

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02040iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main69037-02050iMZEA1#,ZRE210,ZWE211..GCC201904-202305

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02040iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main69038-02050iMZEA1#,ZRE210,217,ZWE211..GCC202305

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-02530iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main69050-02540iMZEA1#,ZRE210,217,ZWE211..GCC202305

main69050-02660iZRE211,ZWE211..TAIW201904-202304

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-02530iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main69060-02540iMZEA1#,ZRE210,217,ZWE211..GCC202305

main69060-02660iMZEA12,ZRE218,ZWE211..TAIW202304

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-02420iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

main69203-02430iZRE211..TAIW202304-202405

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-02420iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main69204-02430iZRE211..TAIW202304-202405

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-02390-A0iMZEA1#,ZRE210,ZWE211..N..GCC202108-202305

FROMAGE,TRIM0#

main69205-02390-B0iMZEA1#,ZRE210,ZWE211..N..GCC202108-202305

LT.GRAY,TRIM1#

main69205-02390-C0iZRE218,ZWE211..(D,E)..TAIW; ZWE211..V..TAIW202304

BLACK,TRIM2#; BLACK,TRIM2#,3#

main69205-02430-A0iZRE210,ZWE211..E..(PHL,TH)201908-202112

FROMAGE,TRIM0#

main69205-02430-B0iZWE211..E;ZRE210..D..PHL201908-202112

LT.GRAY,TRIM1#

main69205-02430-C0iZRE210..E..PHL201908-202112

BLACK,TRIM2#

main69205-02450-A0iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

FROMAGE,TRIM0#

main69205-02450-B0iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

LT.GRAY,TRIM1#

main69205-02460-A0iMZEA1#,ZRE210,ZWE211..N..GCC201904-202108

FROMAGE,TRIM0#

main69205-02460-B0iZRE211,ZWE211..TAIW201904-202004

LT.GRAY,TRIM1#

main69205-02460-C0iZRE211,ZWE211..(G,V)..TAIW; ZRE211..(D,E)..TAIW201904-202004

BLACK,TRIM2#; BLACK,TRIM2#,3#

main69205-02510-A0iZRE210..SGP; ZWE211..(N,V)..(GEN,SGP,VN);ZRE210,211..(D,E,G,V)..(GEN,MA,VN)202306

FROMAGE,TRIM0#; UP GRADE PACKAGE,FROMAGE,TRIM0#

main69205-02510-C0iZRE210..SGP; ZWE211..G;ZWE211..(N,V)..(GEN,IDN,SGP,VN);ZRE210,211..(D,E,G,V)..(GEN,IDN,MA,TH,VN)202306

BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#

main69205-02530-C0iZRE211,ZWE211..X202411

BLACK,TRIM2#

main69205-02540-C0iMZEA12..TAIW202405

BLACK,TRIM2#

main69205-06180-A0iZRE210..GEN,TH;ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,VN);ZRE210,ZWE211..(N,V)..(GEN,PHL,SGP,VN); ZRE210..SGP201908-202306

FROMAGE,TRIM0#; UP GRADE PACKAGE,FROMAGE,TRIM0#

main69205-06180-B1iZRE210,ZWE211..(D,E,V)..(GEN,SGP); ZRE210..SGP201908-202306

LT.GRAY,TRIM1#; UP GRADE PACKAGE,LT.GRAY,TRIM1#

main69205-06180-C0iZRE210,211..IDN,SGP; ZWE211..(G,V)..TH;ZRE210,211..(D,E,G)..(GEN,MA,TH,VN);ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04014×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-02410-A0iZRE210..G..(PHL,SGP)201908-202306

FROMAGE,TRIM0#

main69206-02410-B0iZWE211..E;ZRE210..D..PHL201908-202112

LT.GRAY,TRIM1#

main69206-02410-C0iZRE210..E..PHL201908-202112

BLACK,TRIM2#

main69206-02430-A0iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

FROMAGE,TRIM0#

main69206-02430-B0iMZEA1#,ZRE210,ZWE211..D..GCC201904-202305

LT.GRAY,TRIM1#

main69206-02440-A0iMZEA1#,ZRE210,ZWE211..N..GCC201904-202108

FROMAGE,TRIM0#

main69206-02440-B0iMZEA1#,ZRE210,ZWE211..N..GCC201904-202108

LT.GRAY,TRIM1#

main69206-02440-C0iZRE211,ZWE211..(G,V)..TAIW; ZRE211..(D,E)..TAIW201904-202004

BLACK,TRIM2#; BLACK,TRIM2#,3#

main69206-02490-A0iMZEA1#,ZRE210,ZWE211..N..GCC202108-202305

FROMAGE,TRIM0#

main69206-02490-B0iMZEA1#,ZRE210,ZWE211..N..GCC202108-202305

LT.GRAY,TRIM1#

main69206-02490-C0iZRE211,ZWE211..(G,V)..TAIW; ZRE211..(D,E)..TAIW202004-202304

BLACK,TRIM2#; BLACK,TRIM2#,3#

main69206-02500-A0iZRE210..SGP; ZWE211..(N,V)..(GEN,SGP,VN);ZRE210,211..(D,E,G,V)..(GEN,MA,VN)202306

FROMAGE,TRIM0#; UP GRADE PACKAGE,FROMAGE,TRIM0#

main69206-02500-C0iZRE210..SGP; ZWE211..G;ZWE211..(N,V)..(GEN,IDN,SGP,VN);ZRE210,211..(D,E,G,V)..(GEN,IDN,MA,TH,VN)202306

BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#

main69206-02520-C0iZRE211,ZWE211..X202411

BLACK,TRIM2#

main69206-02530-C0iMZEA12..TAIW202405

BLACK,TRIM2#

main69206-06180-A0iZRE210..GEN,TH;ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,VN);ZRE210,ZWE211..(N,V)..(GEN,PHL,SGP,VN); ZRE210..SGP201908-202306

FROMAGE,TRIM0#; UP GRADE PACKAGE,FROMAGE,TRIM0#

main69206-06180-B1iZRE210,ZWE211..(D,E,V)..(GEN,SGP); ZRE210..SGP201908-202306

LT.GRAY,TRIM1#; UP GRADE PACKAGE,LT.GRAY,TRIM1#

main69206-06180-C0iZRE210,211..IDN,SGP; ZWE211..(G,V)..TH;ZRE210,211..(D,E,G)..(GEN,MA,TH,VN);ZRE210,ZWE211..(N,V)..(GEN,IDN,PHL,SGP,VN)201908-202306

BLACK,TRIM2#; UP GRADE PACKAGE,BLACK,TRIM2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-02420iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

main69227-06140iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-02420iZRE211..TAIW202304-202405

main69227-06140iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-02420supersedes 69211-02938iMZEA11,12,ZRE210,ZWE211..N..GCC; MZEA17,18,ZRE217,ZWE211..D202305

PLATED; PLATED,UP GRADE PACKAGE

main69211-02938iZRE211..TAIW202304-202405

PAINT REQ.

main69211-02940iZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

PAINT REQ.

main69211-06170iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

PLATED

69237BNUT, REAR DOOR HANDLE

main69237-0K040×2iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main69237-62010×2iZRE211,ZWE211..TAIW201904-202304

69239DBUSH, REAR DOOR HANDLE

main69239-02080×2iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main69239-06060×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-02420supersedes 69211-02938iMZEA1#,ZRE210,ZWE211..N..GCC201904-202305

PLATED

main69211-02938iZRE211..TAIW202304-202405

PAINT REQ.

main69211-02940iZRE210,211,ZWE211..(D,X)..(GEN,IDN,MA,PHL,SGP,TH,VN)202306

PAINT REQ.

main69211-06170iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

PLATED

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-02300×2iZRE211..TAIW202304-202405

main69241-06140×2iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-02290×2iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

main69242-06140×2iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

69296ASCREW, DOOR INSIDE HANDLE

main69296-0M010×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

main90148-50006×2iZRE211..G..PHL;ZWE211..V..(PHL,TH)202304-202410

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-02040×2iMZEA1#,ZRE210,ZWE211..GCC201904-202305

(L)

main69410-0K070×2iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main69410-20110×2iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

(J)

69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69730-02340iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main69730-02350iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main69730-02480iZRE211..TAIW202304-202405

69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69730-02340iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main69730-02350iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main69730-02480iZRE211..TAIW202304-202405

69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69770-02440iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

main69770-02450iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main69770-02580iMZEA12,ZRE218,ZWE211..TAIW202304

69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69770-02440iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

main69770-02450iMZEA1#,ZRE210,ZWE211..GCC201904-202305

main69770-02580iZRE211,ZWE211..TAIW201904-202304

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

90148T0015

main90148-T0015

90148T0018

main90148-T0018

90167T0027

main90167-T0027

9018905003

main90189-05003

90189T0005

main90189-T0005

9356755020

main93567-55020

34 parts on this diagram · 1 diagram in section
