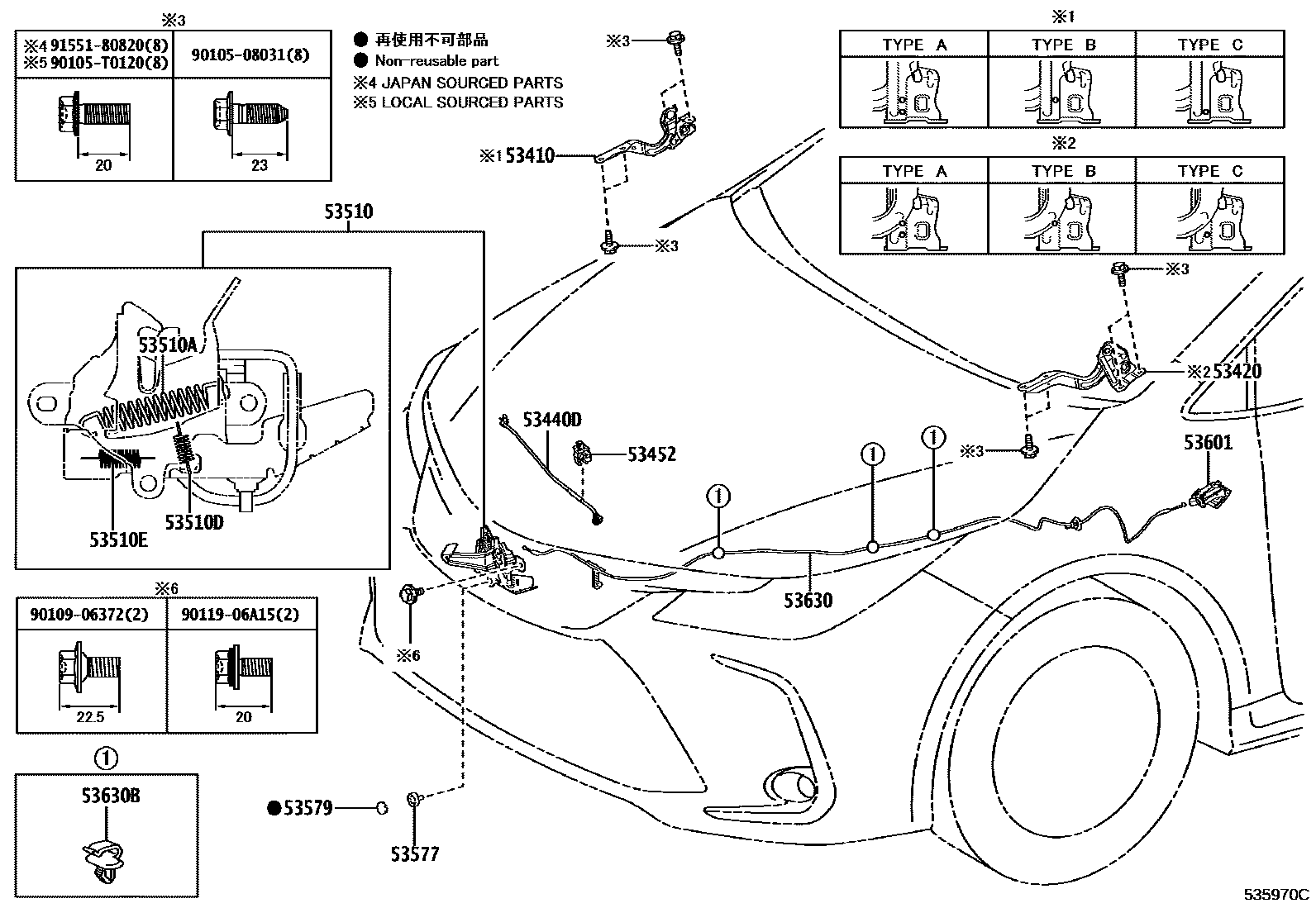

HOOD LOCK & HINGE

0001 1 0002 1

53410HINGE ASSY, HOOD, RH

main53410-02570iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

TYPE A:REFER ILLUST.

main53410-02580iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

TYPE B:REFER ILLUST.

main53410-02590iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

TYPE C:REFER ILLUST.

main53410-02610iMZEA11,12,ZRE210..N,X;MZEA17,18,ZRE217,218,ZWE211..GCC,TAIW202304

53420HINGE ASSY, HOOD, LH

main53420-02570iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

TYPE A:REFER ILLUST.

main53420-02580iZRE211..(D,X)..PHL;ZWE211..GEN,IDN,SGP,VN;ZWE211..(G,X)..(PHL,TH);ZRE210,211..GEN,IDN,MA,SGP,TH,VN202306

TYPE B:REFER ILLUST.

main53420-02590iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

TYPE C:REFER ILLUST.

main53420-02610iZRE211..TAIW202304-202405

53440DSUPPORT ASSY, HOOD

main53440-02310iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

main53440-02320iZRE211..TAIW202304-202405

53452HOLDER, HOOD STAY

main53452-02360iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

(L)

main53452-02380iMZEA1#,ZRE210,ZWE211..GCC201904-202305

(L)

main53452-15020iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

(J)

53510LOCK ASSY, HOOD

main53510-02A10iMZEA12,ZRE218,ZWE211..TAIW202304

main53510-02A20iMZEA1#,ZRE210,217,ZWE211..GCC202305

main53510-12C30iZRE210,ZWE211..CVT..PHL201908-202306

main53510-12C40iZWE211..(G,X)..TH;ZWE211..GEN,IDN,SGP;ZRE210,211..RHD..(E,G,X)202306

main53510-12C50iZRE210..D202306

main53510-12C90iZRE211,ZWE211..VN202201-202306

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-16077iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

WD=1.6,CW=12

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201908-202112

WD=1.2,CW=8.5

main90506-T0004iMZEA1#,ZRE210,ZWE211..GCC201904-202305

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-09055iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

WD=0.9,CW=21

53577BOLT, HOOD LOCK

main53577-33010iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

53579CAP, HOOD LOCK NUT

main53579-50010iZWE211..MA;ZRE210,ZWE211..(D,E)..(PHL,TH)201904-202112

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D040-C1iZRE210..CVT..D..PHL; ZRE210..RHD;ZWE211..SGP; ZRE211,ZWE211..IDN; ZWE211..(G,V)..TH;ZRE211..(E,G)..(MA,TH,VN);ZRE210,ZWE211..(G,N,V)..(GEN,PHL,VN)201908-202306

BLACK,TRIM0#,1#,2#; BLACK,TRIM0#,2#; BLACK,TRIM1#; BLACK,TRIM2#

main53601-0D080-C0iMZEA12,ZRE218,ZWE211..(D,E,X)..TAIW; ZWE211..V..TAIW202304

BLACK,TRIM2#; BLACK,TRIM2#,3#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-02460iZRE210..6F201908-202112

main53630-02470iZRE210,211..RHD;ZWE211..(G,X)..TH;ZWE211..GEN,IDN,SGP202306

main53630-02480iZRE211,ZWE211..TAIW201904-202304

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iZWE211..(G,V)..TH;ZWE211..GEN,IDN,PHL,SGP,VN;ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,SGP,TH,VN)201908-202306

(J)

main90469-T0003×3iZRE211..G..PHL;ZWE211..V..(PHL,TH)202306-202410

(L)

9010508031

main90105-08031

90105T0120

main90105-T0120

9010906372

main90109-06372

9011906A15

main90119-06A15

9155180820

main91551-80820

18 parts on this diagram · 2 diagrams in section
