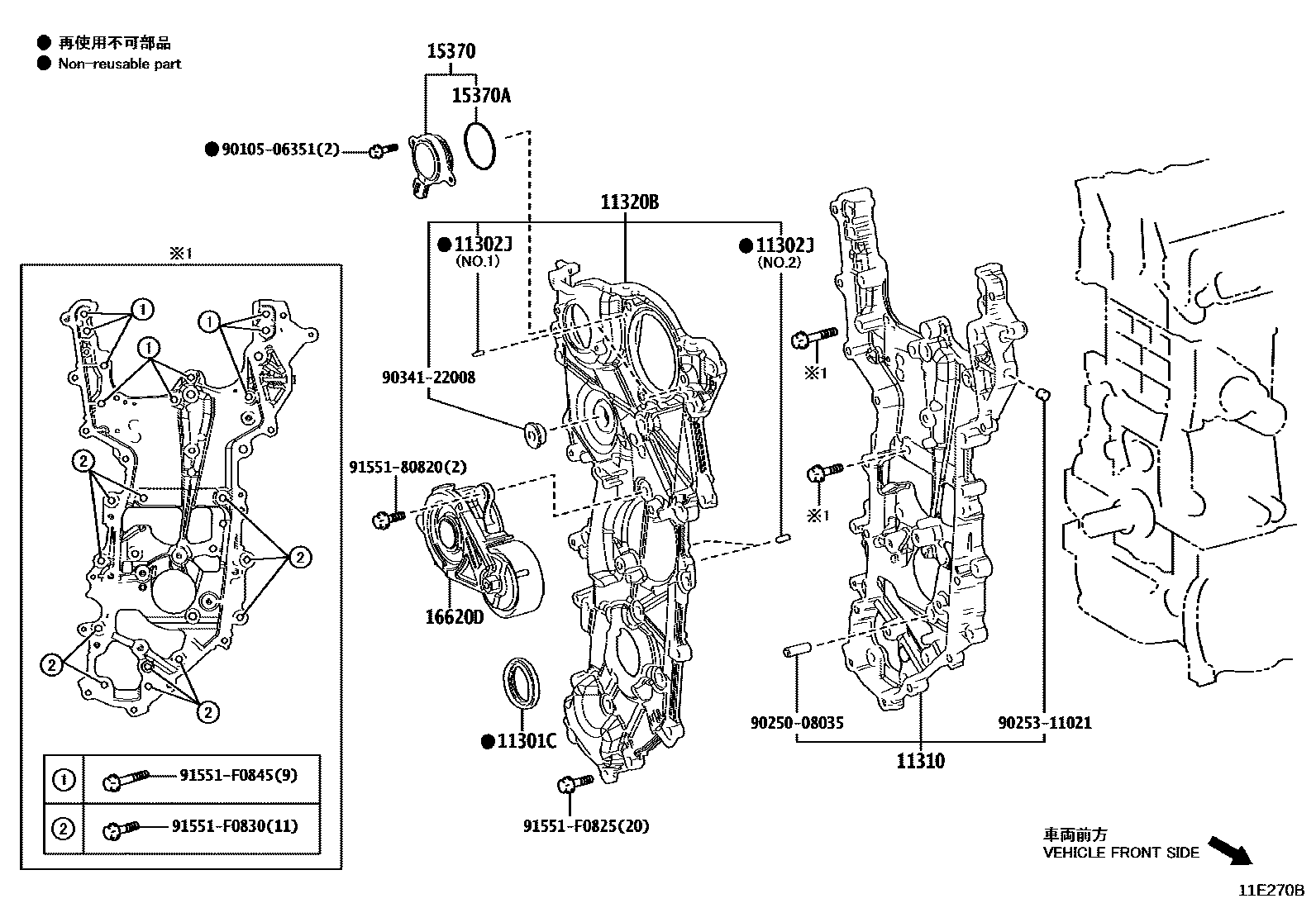

TIMING GEAR COVER & REAR END PLATE
11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11302COVER SUB-ASSY, TIMING CHAIN OR BELT
main11310-0T140i1ZRFE..ZRE210..N;1ZRFE,2ZRFE..ZRE211,217,218..D,E,X;1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..GEN,IDN,TH,VN201904-202410
(L)
main11310-37040i1ZRFBE,1ZRFE,2ZRFBE,2ZRFE..ZRE210,211..CVT..(D,E,G,V)..(GEN,IDN,MA,PHL,TH,VN)201904-202410
(J)
11302JPIN, STRAIGHT(FOR TIMING CHAIN COVER)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
11310COVER ASSY, TIMING CHAIN
11320BCOVER ASSY, TIMING CHAIN, NO.2
15370SOLENOID ASSY, CAM TIMING OIL CONTROL
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
15370ARING, O(FOR CAM TIMING OIL CONTROL SOLENOID)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
16620DTENSIONER ASSY, V-RIBBED BELT
9010506351
main90105-06351
9025008035
main90250-08035
9025311021
main90253-11021
9034122008
main90341-22008
9155180820
main91551-80820
91551F0825
main91551-F0825
91551F0830
main91551-F0830
91551F0845
main91551-F0845
16 parts on this diagram · 5 diagrams in section
