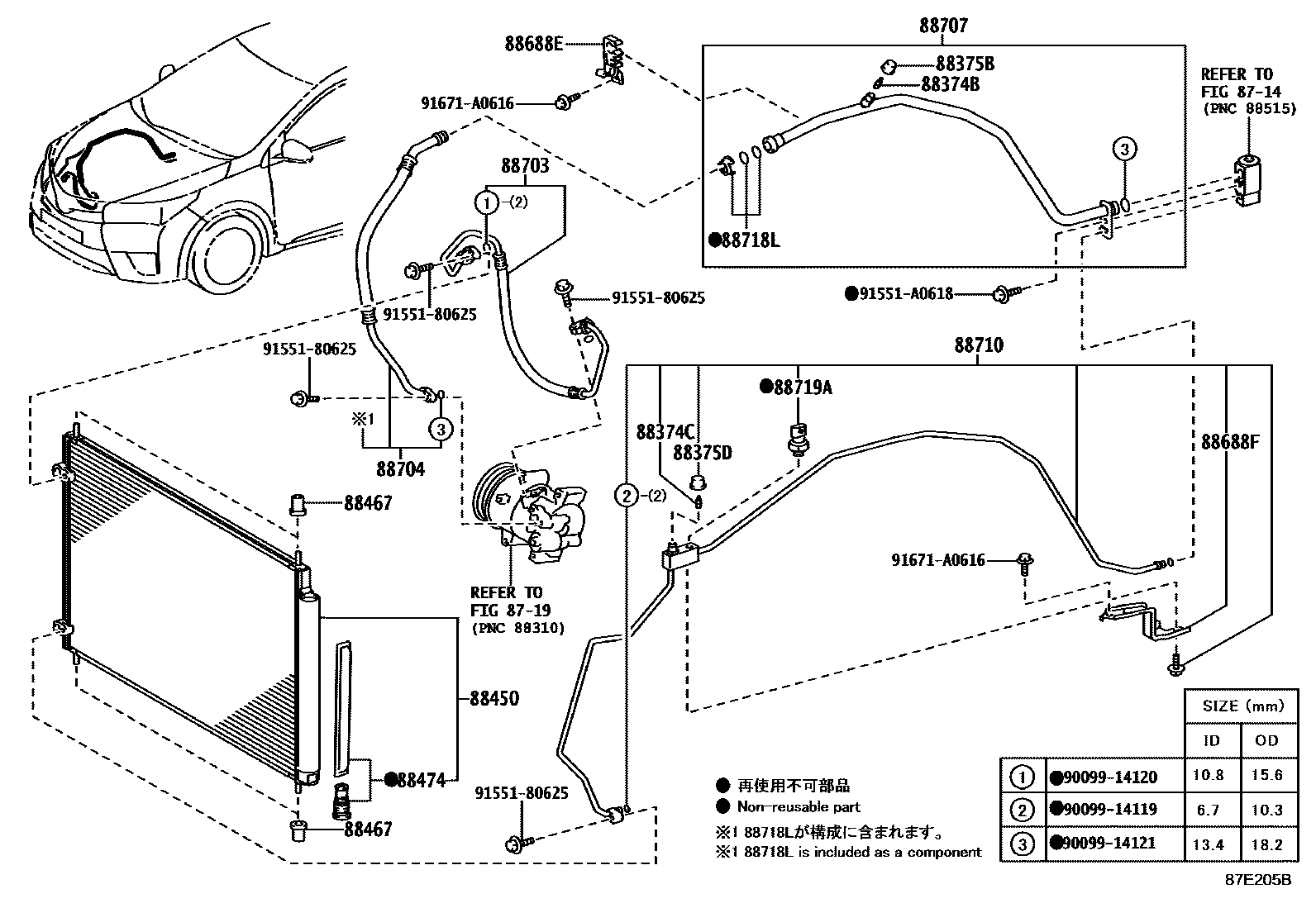

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iZRE173..6F;ZRE171..6F..GLI201310-201511

88374CVALVE, SERVICE, NO.2

main88374-30010iZZE172201310-201409

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iNDE170,ZRE172..IND201310-201702

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iZZE172201310-201409

88450CONDENSER ASSY, W/RECEIVER

main88450-02350iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,MA,TH;ZRE171,173..GEN,MA,PHL,SGP,TH,VN201611-202201

main88450-02360iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

main88450-02370iZRE172..6F..PKN201707-202109

main88450-02380iNDE170,ZRE172..IND201405-201702

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010×4iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201512

88474DRYER, COOLER

main88474-17010iZRE172..CVT..VN201610-202201

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-02720iZRE172,173..VN201312-201709

main88688-02840iZRE173..6F;ZRE171..6F..GLI201310-201511

main88688-02A10iNDE170,ZRE172..IND201703-201906

main88688-02A30iNZE170,ZRE171,172..PKN201407-201707

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-02810iZRE171..HTWC..TH201312-201601

main88688-02A00iZRE173..6F;ZRE171..6F..GLI201310-201511

88703HOSE SUB-ASSY, DISCHARGE

main88703-02A00iZRE171..16J..CNG201312-201512

main88703-02A10iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

main88703-02A20iZRE172..IND201405-201702

main88703-02A21iZRE172..IND201703-201906

main88703-02A30iNDE170201405-201702

main88703-02A31iNDE170201703-201906

main88703-02A40iZZE172201310-201409

main88703-02A50iNZE170201407-201707

main88703-02A51iNZE170201707-201911

main88703-02A60iZRE171,172..PKN201407-201707

main88703-02A61iZRE171..4FC..N201707-202208

88704HOSE SUB-ASSY, SUCTION

main88704-02840iZRE172..VN201312-201709

main88704-02A00iZRE173..20G,20V201611-202007

main88704-02A10iZRE172..TAIW201610-201903

main88704-02A20iZRE171..CVT..GCC201512-201609

main88704-02A21iZRE171..GCC201811-201903

main88704-02A30iZRE173..4FC201310-201512

main88704-02A31iZRE173..GCC201811-201903

main88704-02A40iZRE172..IND201405-201702

main88704-02A50iNDE170201703-201906

main88704-02A60iZZE172201310-201409

main88704-02A70iNZE170201407-201707

main88704-02A80iZRE171,172..PKN201407-201707

88707PIPE SUB-ASSY, SUCTION

main88707-02260iZRE171..HTWC..TH201312-201601

main88707-02261iZRE17#..RHD..(ARL,GEN,IDN,MA,SGP,TH)201611-201907

main88707-02270iZRE172..CVT..VN;ZRE17#..LHD..(16E,16G,16V,18E,20V,XLI)..(GEN,PHL,VN)201611-202201

main88707-02280iZRE172..TAIW201610-201903

main88707-02290iZRE172..IND201405-201702

main88707-02291iZRE172..IND201703-201906

main88707-02300iNDE170201405-201702

main88707-02310iNZE170,ZRE171,172..PKN201407-201704

main88707-02311iNZE170;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201707

main88707-02340iZRE173..6F;ZRE171..6F..GLI201310-201511

88710TUBE ASSY, AIR CONDITIONER

main88710-02700iZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH201312-201610

main88710-02701iZRE17#..RHD..(ARL,GEN,IDN,MA,SGP,TH)201611-201907

main88710-02770iZRE172..CVT..VN;ZRE17#..LHD..(16E,16G,16V,18E,20V,XLI)..(GEN,PHL,VN)201611-202201

main88710-02830iZRE171..CVT..GCC201512-201609

main88710-02A20iZRE172..IND201405-201702

main88710-02A21iZRE172..IND201703-201906

main88710-02A30iNDE170201405-201702

main88710-02A31iNDE170201703-201906

main88710-02A40iNZE170,ZRE171,172..PKN201407-201704

main88710-02A41iNZE170,ZRE171,172..PKN201704-201707

main88710-02B30iZRE173..GCC201610-201903

88718LCLAMP, PIPING

main88718-52260iZRE173..20G201610-201703

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZZE172201310-201409

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9155180625

main91551-80625

91551A0618

main91551-A0618

91671A0616

main91671-A0616

23 parts on this diagram · 6 diagrams in section
