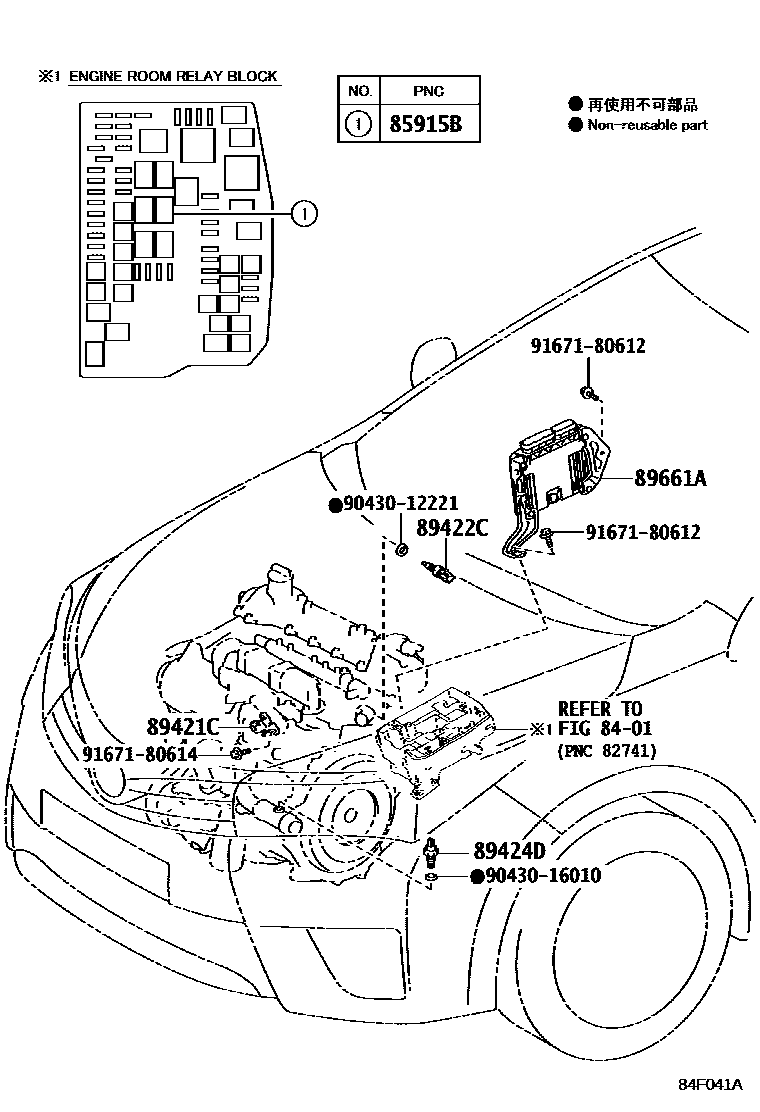

ELECTRONIC CONTROLED DIESEL (ECD)

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85915BRELAY, MAIN (FOR DIESEL TURBO)

main90987-02027iNDE170201712-201906

main90987-T2001iNDE170201405-201702

89421CSENSOR, TURBO PRESSURE (FOR DIESEL TURBO)

main89421-20200iNDE170201405-201702

89422CSENSOR, DIESEL ENGINE WATER TEMPERATURE

main89422-33030iNDE170201405-201702

89424DSENSOR, INLET AIR TEMPERATURE

main89424-60010iNDE170201405-201702

89661ACOMPUTER, ENGINE CONTROL

main89660-0ZM50iNDE170201405-201702

9043012221

main90430-12221

9043016010

main90430-16010

9167180612

main91671-80612

9167180614

main91671-80614

10 parts on this diagram · 1 diagram in section
