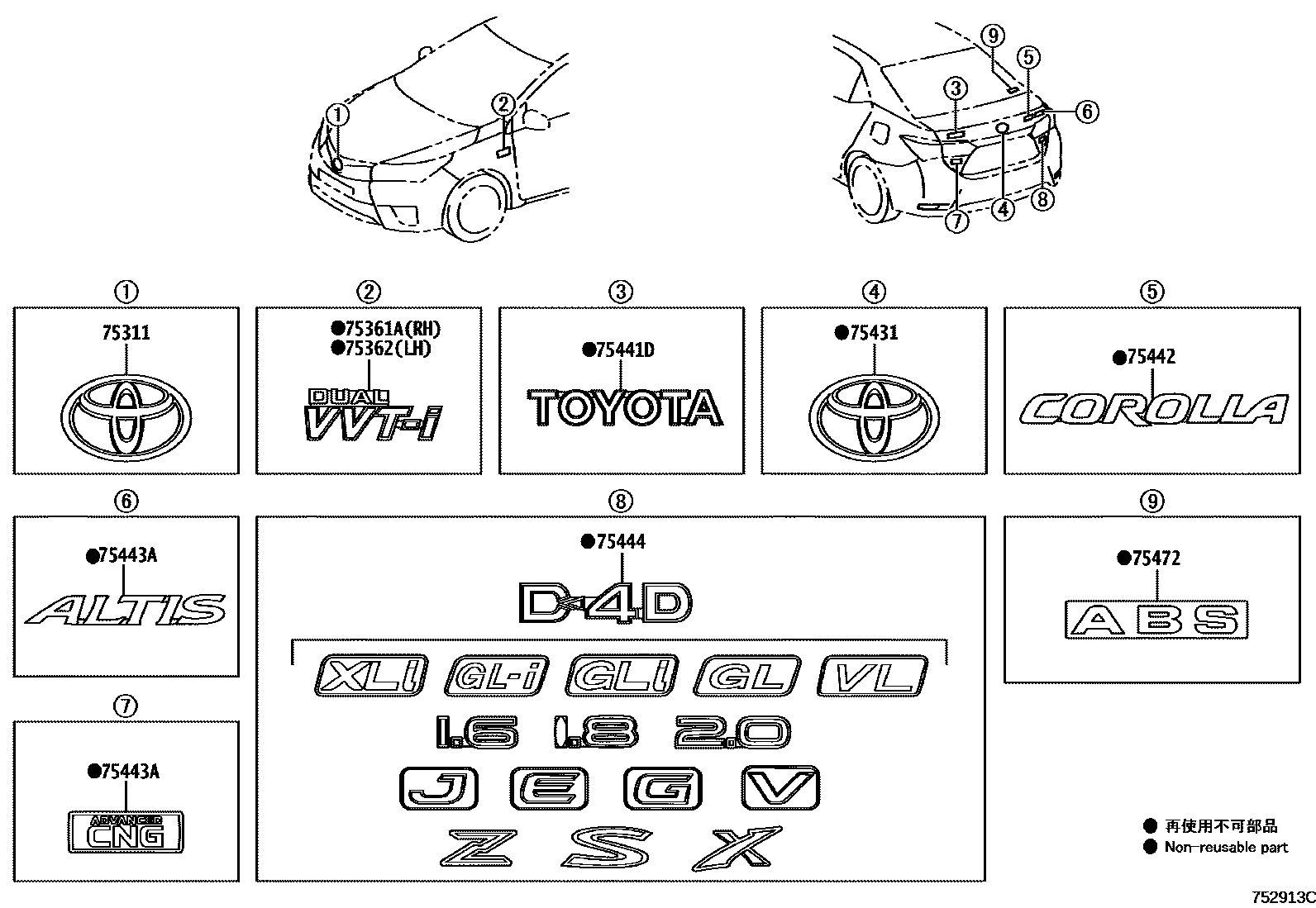

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-02190iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201310-201610

main90975-T2010iZRE172..TAIW..E; ZRE172..TAIW;ZRE171,173..GLI..GCC201601-201609

SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X"); X PACKAGE(REAR EMBLEM "X")

75361APLATE, FRONT FENDER NAME, NO.1

main75444-02700iZRE171..HTWC..TH201312-201601

DUAL VVT-I,RH

main75444-02B80iZRE172..IND201405-201702

DUAL VVT-I,RH

75362PLATE, FRONT FENDER NAME, NO.2

main75444-02A20iZRE172,173..(18E,20V)..VN201709-202007

DUAL VVT-I

main75444-02B90iZRE172..IND201405-201605

DUAL VVT-I,LH

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75431-02090iZRE171..4FC..N201610-202208

75441DPLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-02300iZRE172..6F..PKN201610-202109

TOYOTA

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-02320supersedes 75442-02330iZRE171,173..CVT..GCC201512-201609

COROLLA

main75442-02330iZRE172..18E..VN;ZRE172..18G..IDN;ZRE171..6F..(PHL,PKN);ZRE172..CVT..(IDN,MA,PKN,TAIW,TH);ZRE171,173..CVT..(MA,PHL,PKN,SGP,TH,VN)201610

COROLLA

main75442-02400iNDE170,ZRE172..IND201703-201906

COROLLA

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75442-02340iZRE171..16G..TH201310-201601

ALTIS

main75442-02390iZRE171..16E..TH201312-201610

ADVANCED CNG

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-02710iNDE170201703-201906

D-4D

main75444-02720iZRE171..16J..CNG201312-201512

J

main75444-02730supersedes 75447-02320iZRE172..18E..VN201611-202007

E

main75444-02740iZRE171..16G..TH201312-201601

G

main75444-02750iZRE17#..(16V,18V,20V)..(IDN,MA,PHL,TH)201312-201610

V

main75444-02760iZRE172..18E..TH; ZRE172..18GS201611-201907

S; S,SPORTY PACKAGE

main75444-02780iNDE170,ZRE172..GL201405-201702

GL

main75444-02790iZRE172..VL201703-201906

VL

main75444-02800iZRE171..6F..GLI201310-201511

GL-I

main75444-02810iZRE171,173..XLI..GCC201610-201903

XLI

main75444-02A30iNDE170..G; ZRE172..J201405-201702

J; J,HE PACKAGE; J,NEW J PACKAGE

main75444-02A40iNDE170,ZRE172..G201703-201906

G

main75444-02A60iNZE170..XLI201407-201707

XLI

main75444-02B70iNZE170..GLI201707-201911

GLI

main75447-02280iZRE171..16J..CNG;ZRE171..4FC..GCC201310-201512

1.6

main75447-02290iZRE172..PKN201407-201707

1.8

main75447-02300iZRE173..GCC; ZRE173..GLI201512-201609

2.0; 2.0,X PACKAGE(REAR EMBLEM "X")

main75447-02320iZRE172..18E..VN201611-202007

1.8

main75444-02A10supersedes 75444-02800iZRE171,173..4FC..GLI..GCC201410-201512

Z,SPORTY PACKAGE

main75444-02C90iZRE172..TAIW;ZRE171,173..GLI..GCC201601-201609

X,X PACKAGE(REAR EMBLEM "X")

main75444-02G00supersedes 75447-02290iZRE172..CVT..N202012

X,UP GRADE PACKAGE

75472PLATE, REAR WINDOW NAME

main75485-02050iNZE170..GLI;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201707

ABS

9 parts on this diagram · 1 diagram in section
