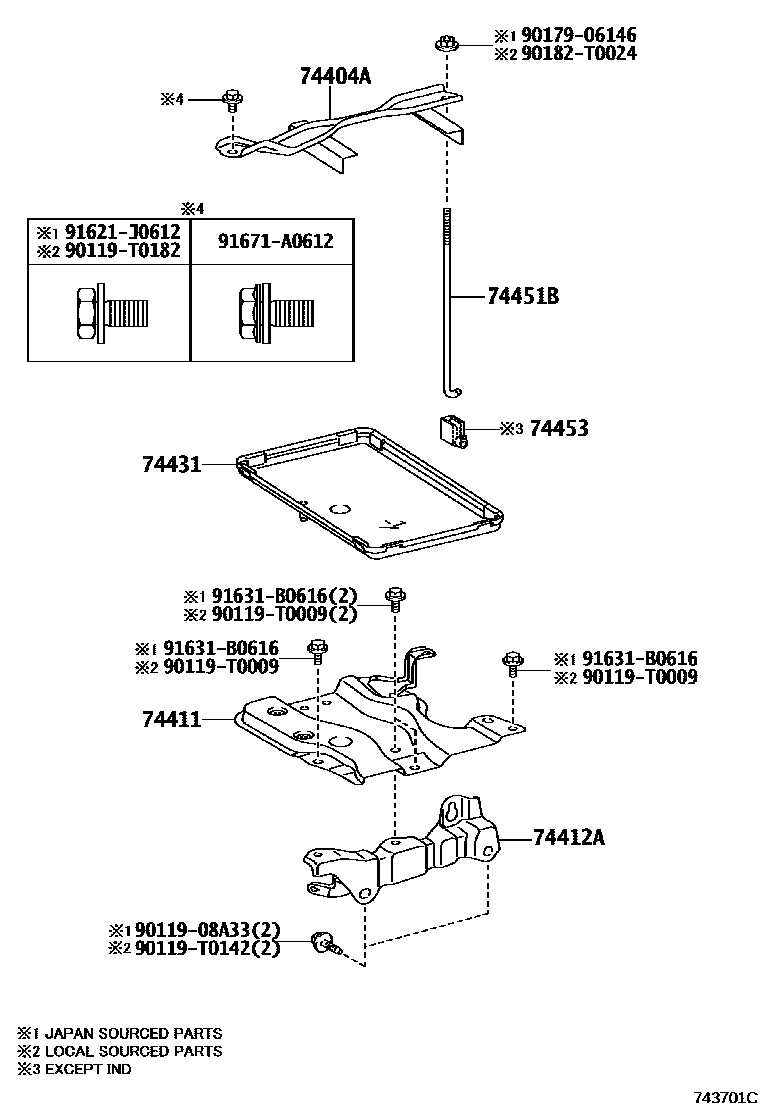

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-02420iZRE172..IND201405-201702

main74404-02430iZRE171..4FC..N201707-202208

main74404-02450iNDE170201405-201702

main74404-02550iZRE171..HTWC..TH201310-201601

74411CARRIER, BATTERY

main74401-02070iNDE170,ZRE172..IND201405-201702

main74401-02100iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201512

74412ACARRIER, BATTERY, NO.2

main74410-02090iNDE170,ZRE172..IND201703-201906

main74410-02220iZRE171..HTWC..TH201310-201601

74431TRAY, BATTERY

main74431-02280iZRE171..HTWC..TH201312-201601

main74431-02300iNDE170201703-201906

main74431-02340iZRE17#..GCC,TAIW201610-201903

74451BBOLT, BATTERY CLAMP

main74451-0D010iZRE171..4FC..N201707-202208

main74451-12140iZRE172,173..VN201310-201709

main74451-30110iNDE170,ZRE172..IND201703-201906

74453SUPPORT, BATTERY CARRIER

main74454-28020iZZE172201310-201409

9011908A33

main90119-08A33

90119T0009

main90119-T0009

90119T0142

main90119-T0142

90119T0182

main90119-T0182

9017906146

main90179-06146

90182T0024

main90182-T0024

91621J0612

main91621-J0612

91631B0616

main91631-B0616

91671A0612

main91671-A0612

15 parts on this diagram · 1 diagram in section
