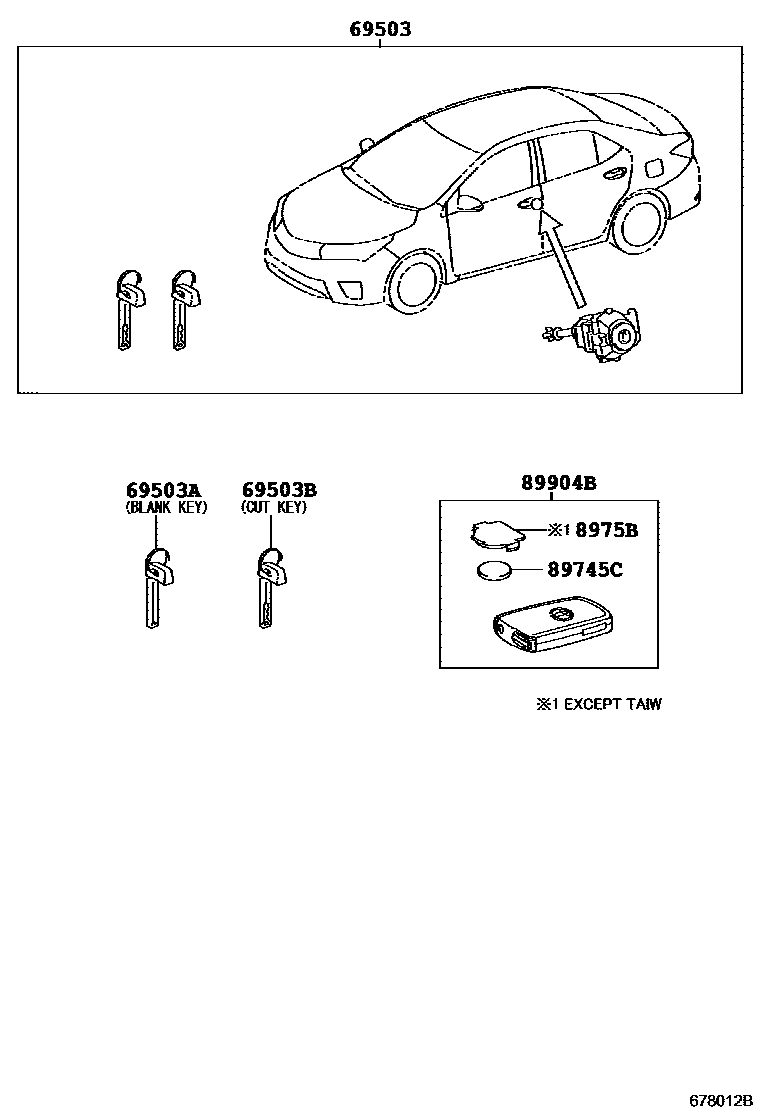

LOCK CYLINDER SET
69503CYLINDER SET, LOCK
main69005-02B70supersedes 89704-02351iZRE171,172..(ARL,SGP)..(E,G,N);ZRE172,173..RHD..(18G,18GS,18V,20V)201312-201610
main89704-02C00supersedes 89704-02780iZRE171,172..(16E,18E)..TH; ZRE171..G; ZRE172..18E..TH201611-201907
LOW GRADE PACKAGE; SPORTY PACKAGE&KEY PLATE-SMART KEY, WITH(PANIC BUTTON)
LOW FLEET PACKAGE
HE PACKAGE&KEY PLATE-MASTER KEY(2)+SUB KEY(1),W/O(WIRELESS)
LOW FLEET PACKAGE
UP GRADE PACKAGE
UP GRADE PACKAGE
UP GRADE PACKAGE
UP GRADE PACKAGE
SPORTY PACKAGE; SPORTY PACKAGE&KEY PLATE-SMART KEY,WITH(PANIC BUTTON)
HE PACKAGE; HE PACKAGE&KEY PLATE-MASTER KEY(2)+SUB KEY(1),W/O(WIRELESS)
KEY PLATE-JACK KNIFE TYPE KEY(2)
KEY PLATE-JACK KNIFE TYPE KEY(2)
KEY PLATE-JACK KNIFE TYPE KEY(2)
HE PACKAGE&KEY PLATE-MASTER KEY(2)&SUB KEY(1), W/O(WIRELESS)
KEY PLATE-JACK KNIFE TYPE KEY(2)
69503AKEY, BLANK
MASTER KEY,W(*68),FOR SMART KEY
MASTER KEY,W(*68)
MASTER KEY,W(*68),FOR SMART KEY
SUB KEY
MASTER KEY,W(*68)
69503BKEY, CUT
MASTER KEY,W(*68)
MASTER KEY,W(*68),FOR SMART KEY
MASTER KEY,W(*68),FOR SMART KEY
89745CBATTERY, TRANSMITTER
8975BCOVER, TRANSMITTER BATTERY HOUSING
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
UP GRADE PACKAGE
QATAR SPEC
6 parts on this diagram · 7 diagrams in section
