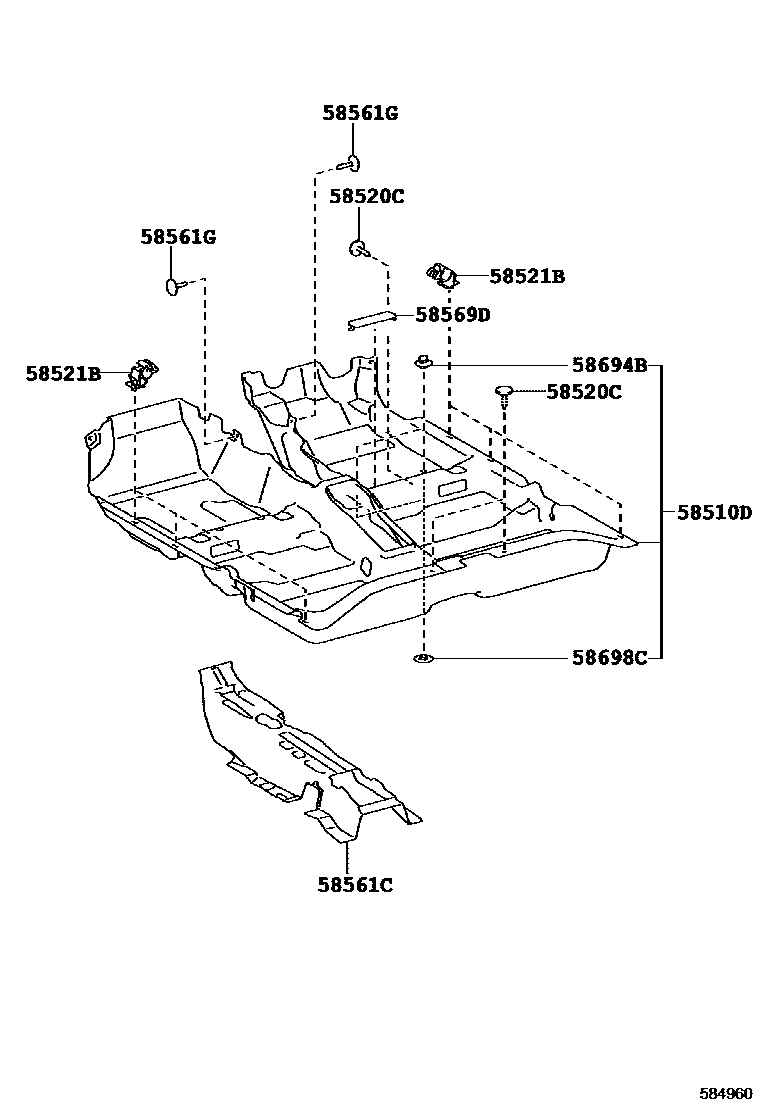

MAT & CARPET

58510DCARPET ASSY, FLOOR, FRONT

main58510-02G71-C0iZRE171,173..CVT..GCC201512-201609

BLACK,TRIM0#,1#

main58510-02G72-C0iZRE171,173..GLI..GCC201610-201903

BLACK,TRIM0#,1#,2#

main58510-02G72-C0iZRE171,173..GLI..GCC201610-201903

BLACK,TRIM0#,1#

main58510-02K10-C0iZRE171,173..(16G,16V,20V)..PHL201312-201509

BLACK,TRIM0#,1#,2#

main58510-02K10-C0iZRE171,173..(16G,16V,20V)..PHL201312-201509

BLACK,TRIM0#,2#

main58510-02K11-C0iZRE173..PHL201510-201610

BLACK,TRIM0#,1#

main58510-02K11-C0iZRE173..PHL201510-201610

BLACK,TRIM2#

main58510-02K11-C0iZRE171..(16G,16V)..PHL201510-201610

BLACK,TRIM0#,2#

main58510-02K12-C0iZRE173..PHL201611-201907

BLACK,TRIM0#,2#

main58510-02K12-C0iZRE173..PHL201611-201907

BLACK,TRIM2#

main58510-02K12-C0iZRE173..PHL201611-201907

BLACK,TRIM0#,1#

main58510-02K20-C0iZRE171..LHD..GEN201312-201509

BLACK,TRIM0#,1#

main58510-02K21-C0iZRE171..LHD..GEN201510-201610

BLACK,TRIM0#,1#

main58510-02K22-C0iZRE171..6F..XLI..GEN201611-201907

BLACK,TRIM0#,1#,2#

main58510-02K22-C0iZRE171..LHD..4FC201611-201907

BLACK,TRIM0#,1#

main58510-02K40-C0iZRE172..18G..IDN201312-201610

BLACK,TRIM2#

main58510-02K40-C0iZRE171..16J..HTWC201312-201601

BLACK,TRIM1#

main58510-02K40-C0iZRE172..6F..ARL201312-201610

BLACK,TRIM0#,1#

main58510-02K40-C0iZRE172..6F..ARL201312-201610

BLACK,TRIM0#

main58510-02K41-C0iZRE172..18G..IDN201611-201907

BLACK,TRIM0#

main58510-02K41-C0iZRE172..6F..ARL201611-201907

BLACK,TRIM2#

main58510-02K41-C0iZRE172..6F..ARL201611-201907

BLACK,TRIM0#,1#

main58510-02K50-C0iZRE172..TAIW..D201310-201509

BLACK,TRIM0#,2#

main58510-02K50-C0iZRE172..TAIW..D201310-201509

BLACK,TRIM2#

main58510-02K51-C0iZRE172..TAIW..D201510-201609

BLACK,TRIM0#,2#

main58510-02K51-C0iZRE172..TAIW..(E,G)201510-201609

BLACK,TRIM2#

main58510-02K52-C0iZRE172..TAIW..D201610-201903

BLACK,TRIM0#,2#

main58510-02K52-C0iZRE172..TAIW..D201610-201903

BLACK,TRIM2#

main58510-02K60-C0iZZE172201310-201409

BLACK,TRIM0#,1#,2#

main58510-02K60-C0iZRE171,173..GCC201310-201509

BLACK,TRIM0#,1#

main58510-02K61-C0iZRE173..6F;ZRE171..6F..GLI201510-201609

BLACK,TRIM0#,1#

main58510-02K70-C0iNDE170,ZRE172..6F..IND201405-201509

BLACK,TRIM0#

main58510-02K80-C0iNZE170,ZRE171..MTM..PKN201407-201707

BLACK,TRIM0#

main58510-02K80-C0iZRE172..6F..PKN201707-202109

BLACK,TRIM0#,2#

main58510-02L20-C0iZRE171..RHD..4FC..GEN201312-201610

BLACK,TRIM2#

main58510-02L20-C0iZRE172..18V..IDN201312-201610

BLACK,TRIM0#,1#

main58510-02L20-C0iZRE172..18V..IDN201312-201610

BLACK,TRIM0#

main58510-02L20-C0iZRE172..18V..IDN201312-201610

BLACK,TRIM0#,2#

main58510-02L21-C0iZRE171..G201611-201907

BLACK,TRIM0#

main58510-02L21-C0iZRE171..G201611-201907

BLACK,TRIM2#

main58510-02L21-C0iZRE171..G201611-201907

BLACK,TRIM0#,2#

main58510-02L21-C0iZRE171..RHD..4FC..GEN201611-201907

BLACK,TRIM0#,1#

main58510-02L70-C0iZRE172..CVT..IND201405-201509

BLACK,TRIM0#

main58510-02L80-C0iNZE170,ZRE171,172..(ATM,CVT)..PKN201407-201707

BLACK,TRIM0#

main58510-02L80-C0iZRE172..CVT..PKN201707

BLACK,TRIM0#,2#

main58510-02M60-C0iZRE173..VN201409-201509

BLACK,TRIM2#

main58510-02M60-C0iZRE172..CVT..VN201409-201509

BLACK,TRIM0#,2#

main58510-02M60-C0iZRE172..CVT..VN201409-201509

BLACK,TRIM0#

main58510-02M61-C0iZRE173..VN201510-201709

BLACK,TRIM0#

main58510-02M61-C0iZRE173..VN201510-201709

BLACK,TRIM0#,2#

main58510-02M61-C0iZRE172..6F..VN201510-201709

BLACK,TRIM2#

main58510-02M62-C0iZRE172..18E..VN201709-202007

BLACK,TRIM0#

main58510-02M62-C0iZRE172,173..CVT..VN201709-202201

BLACK,TRIM0#,2#

main58510-02M80-C0iNDE170,ZRE172..6F..IND201509-201609

BLACK,TRIM0#

main58510-02M81-C0iNDE170,ZRE172..6F..IND201609-201906

BLACK,TRIM0#

main58510-02M90-C0iZRE172..CVT..IND201509-201906

BLACK,TRIM0#

main58510-02N60-C0iZRE171..16J..CNG201505-201610

BLACK,TRIM1#

main58510-02N61-C0iZRE171..16J201611-201907

BLACK,TRIM1#

main58510-02N70-C0iZRE171..CVT..(CNG,HTWCF)201505-201610

BLACK,TRIM0#,2#

main58510-02N70-C0iZRE171..CVT..(CNG,HTWCF)201505-201610

BLACK,TRIM2#

main58510-02N70-C0iZRE171..CVT..(CNG,HTWCF)201505-201610

BLACK,TRIM0#

main58510-02N71-C0iZRE172..(18GS,18V)..TH201611-201907

BLACK,TRIM0#,2#

main58510-02N71-C0iZRE172..18E..TH201611-201907

BLACK,TRIM0#

main58510-02N71-C0iZRE172..18E..TH201611-201907

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-07049-23iNZE170,ZRE171,172..PKN201610-201709

BLACK,TRIM0#

main90467-07049-23iZRE173..VN201610-202007

BLACK,TRIM2#

main90467-07049-23iZRE173..VN201610-201709

BLACK,TRIM0#,2#

main90467-07049-23iZRE171..LHD..4FC;ZRE171,173..GLI..GCC201610-201907

BLACK,TRIM0#,1#,2#

main90467-07049-23iZRE171..LHD..4FC;ZRE171,173..GLI..GCC201610-201907

BLACK,TRIM0#,1#

main90467-07049-23iZRE171..16J201611-201907

BLACK,TRIM1#

main90467-07049-C0iZRE171..16J..HTWCF201312-201610

BLACK,TRIM0#

main90467-07049-C0iZRE172..TAIW..(E,G)201310-201610

BLACK,TRIM2#

main90467-07049-C0iZRE172..TAIW..(E,G)201310-201610

BLACK,TRIM0#,2#

main90467-07049-C0iZRE171..(16E,GLI,GXLI,XLI)..(GEN,PHL)201310-201610

BLACK,TRIM0#,1#

main90467-07049-C0iZRE171..16J..HTWC201312-201610

BLACK,TRIM1#

58521BHOOK, FLOOR CARPET

main58521-02120iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201312-201709

main58521-02130iZRE173..6F;ZRE171..6F..GLI201310-201903

58561CSILENCER, FRONT FLOOR, NO.1

main58561-02310iZRE171..HTWC..TH201312-201907

main58561-02320iZRE171,173..CVT..GCC201310-201903

main58561-02330iNDE170,ZRE172..IND201405-201906

main58561-02350iNZE170,ZRE171,172..PKN201407-201707

main58561-02380iZRE172,173..VN201312-202201

58561GCLIP(FOR FRONT FLOOR SILENCER)

main90467-05164-B2iZRE171,173..CVT..GCC201310-201903

DK.GRAY

main90467-T0004-C1iZRE172..RHD;ZRE172..CVT..VN;ZRE172..18E..VN;NDE170,NZE170,ZRE171,173..GEN,IND,MA,PHL,PKN,SGP,TH,VN201312-201709

BLACK

58569DCOVER, FRONT FLOOR CAUTION PLATE

main58569-02040-C2iZRE171..16J201312-201907

BLACK,TRIM0#,1#

main58569-02040-C2iZRE171..16J201312-201907

BLACK,TRIM1#

main58569-02040-C2iZRE171..RHD..GEN;ZRE171..6F..(16E,XLI)..(GEN,PHL)201312-201907

BLACK,TRIM2#

main58569-02040-C2iZRE171..RHD..GEN;ZRE171..6F..(16E,XLI)..(GEN,PHL)201312-201907

BLACK,TRIM0#,1#,2#

main58569-02040-C2iZRE172..PKN;ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE172,173..CVT..(18E,18G,20V)..(TH,VN)201312-201709

BLACK,TRIM0#,2#

main58569-02040-C2iZRE172..PKN;ZRE171..6F..16G;ZRE171..CVT..(PHL,SGP);ZRE172,173..CVT..(18E,18G,20V)..(TH,VN)201312-201709

BLACK,TRIM0#

main58569-02050-C1iZRE171,173..XLI..GCC201310-201903

BLACK,TRIM2#

main58569-02050-C1iZRE172..TAIW..D201310-201903

BLACK,TRIM0#,1#

main58569-02050-C1iZRE171..6F..XLI..GCC201310-201903

BLACK,TRIM0#,2#

main58569-02050-C1iZRE172..TAIW..D201610-201903

BLACK,TRIM0#,1#,2#

main58569-02060-C1iNDE170,ZRE172..IND201405-201906

BLACK,TRIM0#

58694BPLATE, MAT SET, UPPER

main58694-0K010iZRE17#..ARL,GEN,IDN,MA,PHL,SGP,TH201707-201907

main58694-76010iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201709

58698CPLATE, MAT SET, LOWER

main58698-0K070iZRE17#..ARL,GEN,IDN,MA,PHL,SGP,TH201707-201907

main58698-76010iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201709

8 parts on this diagram · 1 diagram in section
