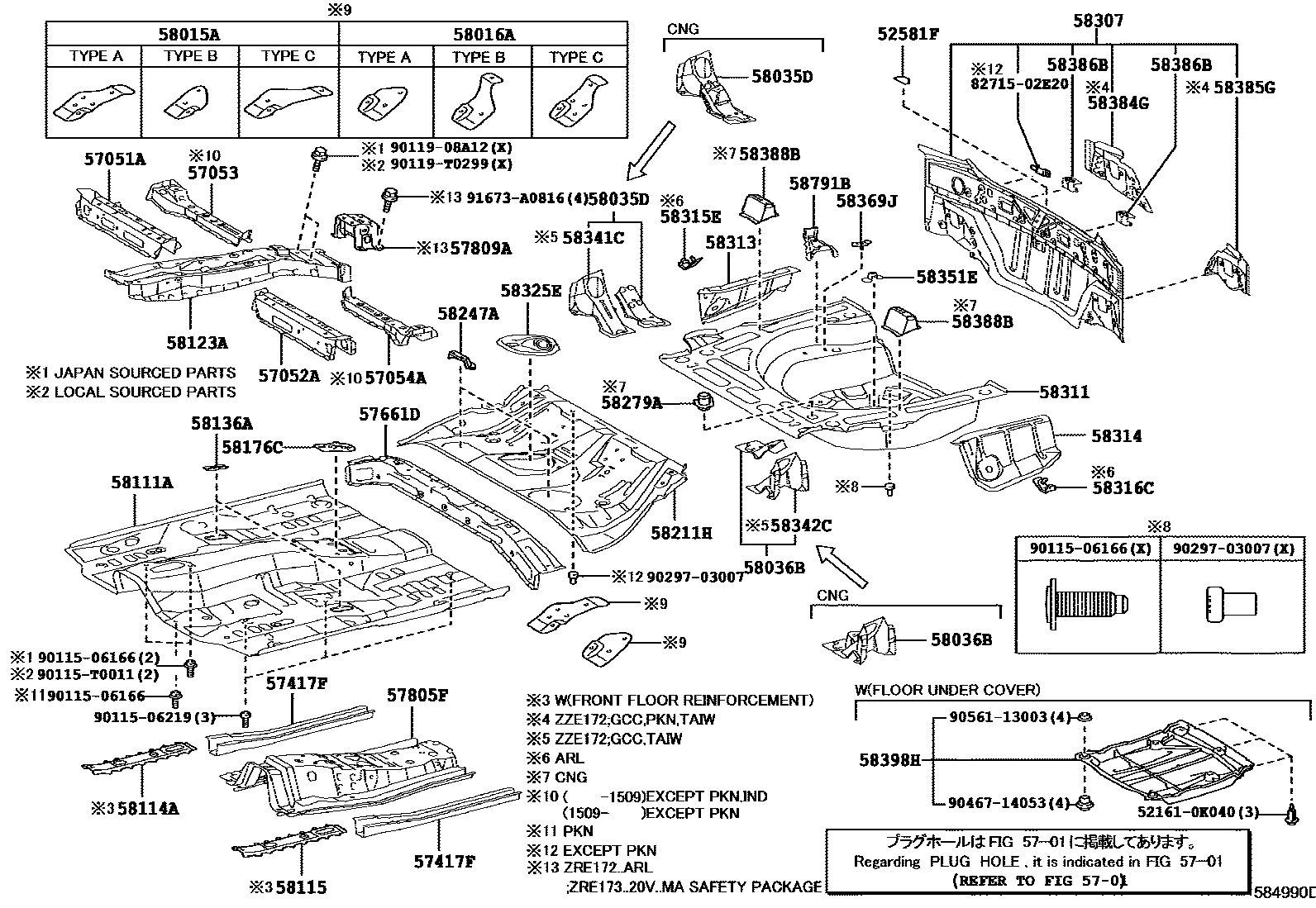

FLOOR PAN & LOWER BACK PANEL
52581FPROTECTOR, REAR BUMPER
5701HOLE PLUG
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57661DMEMBER, REAR FLOOR CROSS, FRONT
main57661-02130iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201312-201610
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
57809AREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.3
SAFETY PACKAGE
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
main58015-02100iZRE172..CVT..VN;ZRE171,172..RHD..(ARL,GEN,SGP);ZRE17#..LHD..(16G,16V,18E,20V)201611-202201
TYPE A:REFER ILLUST.
REAR SEAT-6:4 FOLDING TYPE,W(RECLINING),TYPE C:REFER ILLUST.; TYPE C:REFER ILLUST.
main58015-02200iZRE171..(CVT,MTM)..(PKN,TH);ZRE171..LHD..(16E,XLI)..(GEN,PHL);NZE170,ZRE172..(18E,18G,18GS,GLI,XLI)..(IDN,PKN,TH)201611
TYPE B:REFER ILLUST.
TYPE A:REFER ILLUST.
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
main58016-02100iZRE172..ARL;ZRE171..4FC..GEN;ZRE172..18G..IDN;ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH);NZE170,ZRE172,173..(18E,18GS,20V,GLI,XLI)..(PHL,PKN,TH,VN)201611
TYPE A:REFER ILLUST.
TYPE C:REFER ILLUST.
REAR SEAT-6:4 FOLDING TYPE,W(RECLINING),TYPE B:REFER ILLUST.; TYPE B:REFER ILLUST.
58035DEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, RH
58036BEXTENSION SUB-ASSY, REAR FLOOR SIDE PANEL, LH
58111APAN, FRONT FLOOR, RH
58114AREINFORCEMENT, FRONT FLOOR PANEL
main58114-02030iZRE171..16J..HTWCF;ZRE171..RHD..(GEN,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH201312-201610
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58123ASUPPORT, SHIFT & SELECT LEVER
58136ACOVER, FRONT FLOOR SERVICE HOLE
58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2
58211HPAN, CENTER FLOOR
main58211-02330iZRE172..18GS;ZRE171,172..RHD..(ARL,GEN,SGP);ZRE171,173..(16G,16V,20V)..PHL201312-201610
58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH
58279APROTECTOR, FUEL HOSE
58307PANEL SUB-ASSY, BODY LOWER BACK
main58307-02380iZRE172..CVT..VN;ZRE172..18E..VN;ZRE172..ARL,IDN,IND,MA,TH;NDE170,ZRE171,173..GEN,IND,MA,PHL,SGP,TH,VN201611-202201
58311PAN, REAR FLOOR
main58311-02310iZRE172..ARL..E;ZRE171,172..CVT..(PKN,SGP);NDE170,ZRE172,173..18GS,18V,20V,GL,VL201611
main58311-12270iZRE172..TAIW..E;ZRE172..18G..IDN;NZE170,ZRE171..HTWC,HTWCF;ZRE172..(ARL,TAIW)..(D,G,N);NDE170,ZRE172,173..18E,20G,G,GLI,J,XLI201610-202107
58313PANEL, REAR FLOOR SIDE, RH
58314PANEL, REAR FLOOR SIDE, LH
58315EEXTENSION REAR FLOOR SIDE PANEL, FRONT RH
58316CEXTENSION, REAR FLOOR SIDE PANEL, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58351EBRACKET, SPARE WHEEL CLAMP
58369JBRACKET, REAR FLOOR BRACE
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58386BBRACKET, REAR BUMPER COVER, NO.2
main58386-02040×2iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201310-201610
58388BBRACKET, PLATE REAR FLOOR
RH
LH
58398HCOVER, FLOOR UNDER, NO.1
SPORTY PACKAGE
58791BCARRIER, JACK
main58791-12200iZRE172..18E..VN;ZRE172..RHD..CVT;ZRE171..4FC..GEN;ZRE172..6F..(ARL,IDN,IND);NDE170,NZE170,ZRE173..IND,MA,PHL,PKN,VN;ZRE171..(CVT,MTM)..(GEN,PHL,PKN,SGP,TH)201611
521610K040CUSHION, REAR BUMPER GUARD, NO.1
main52161-0K040
8271502E20BRACKET,WIRING HARNESS CLAMP
main82715-02E20
9011506166
main90115-06166
9011506219
main90115-06219
90115T0011
main90115-T0011
9011908A12
main90119-08A12
90119T0299
main90119-T0299
9029703007
main90297-03007
9046714053
main90467-14053
9056113003
main90561-13003
91673A0816
main91673-A0816
51 parts on this diagram · 1 diagram in section
