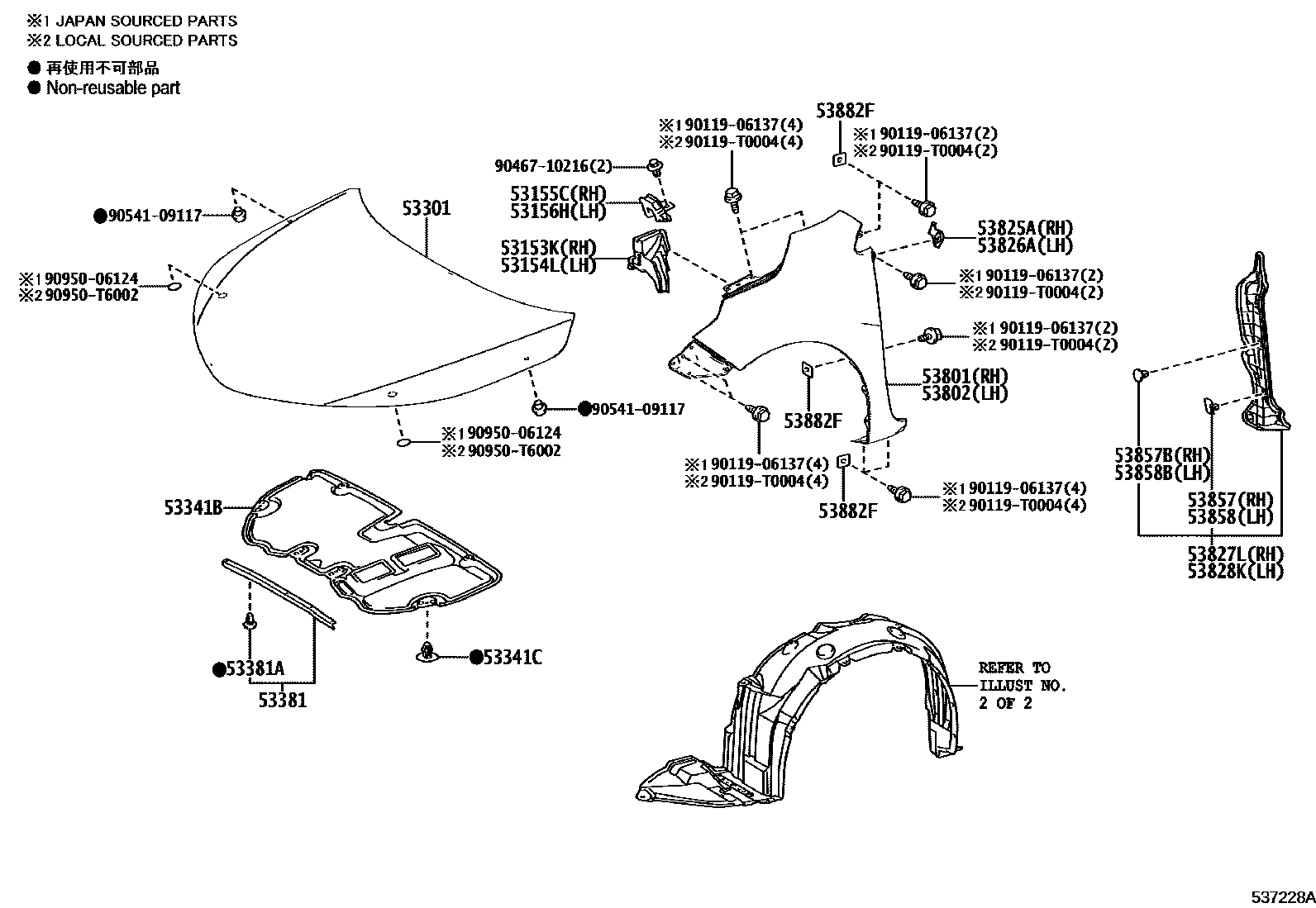

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-02060iZRE172..CVT..VN201610-202201

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-02060iZZE172201310-201409

53155CSEAL, RADIATOR GRILLE, NO.1

main53155-02080iZRE171..CVT,MTM;ZRE172..18E..VN;ZRE171..4FC..GEN;NDE170,NZE170,ZRE173;ZRE172..6F..(ARL,IDN,IND);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW,TH)201610

53156HSEAL, RADIATOR GRILLE, NO.2

main53156-02070iZZE172201310-201409

53301HOOD SUB-ASSY

main53301-02310iZZE172201310-201409

53341BINSULATOR, HOOD

main53341-02290iZRE171..16G..TH201312-201601

main53341-02310iNDE170,ZRE172..IND201703-201906

main53341-02330iZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201707

main53341-12330iZRE172..TAIW201610-201903

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×10iNDE170,ZRE172..IND201405-201503

main90467-T0014×6iZRE172..CVT..VN;ZRE172..ARL,IDN,MA,TH;ZRE171,173..(ATM,CVT)..(GEN,MA,PHL,SGP,TH,VN);ZRE171,172..6F..(16E,16G,18E,GXLI,XLI)..(GEN,PHL,VN)201611-202201

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-02210iZZE172201310-201409

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×5iZRE172..6F..PKN201610-202109

(J)

main90467-T0013×5iNZE170,ZRE171,172..PKN201310-201707

(L)

53801FENDER SUB-ASSY, FRONT RH

main53801-02230iZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N;ZRE17#..(16V,18GS,20V)..(PHL,TH,VN)201611

main53801-02240supersedes 53801-02230iZRE171,173..CVT..GCC; ZRE172..TAIW..E201512-201609

SPORTY PACKAGE&X PACKAGE(REAR EMBLEM "X")

53802FENDER SUB-ASSY, FRONT LH

main53802-02210iZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N;ZRE17#..(16V,18GS,20V)..(PHL,TH,VN)201611

main53802-02220supersedes 53802-02210iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,TH201310-201610

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-02110iZZE172201310-201409

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-02110iZZE172201310-201409

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-02220iZZE172201310-201409

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-02210iZZE172201310-201409

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-12010iZRE171..CVT,MTM;ZRE172..18E..VN;ZRE171..4FC..GEN;NDE170,NZE170,ZRE173;ZRE172..6F..(ARL,IDN,IND);ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW,TH)201610

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iZRE173..6F;ZRE171..6F..GLI201310-201511

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-12010iNDE170,ZRE172..IND201310-201702

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iZZE172201310-201409

53882FSEAL, FRONT FENDER

main53882-0D010×8iZRE171..16J..HTWCF;ZRE171..GEN,PHL,SGP;ZRE171..CVT..(CNG,HTWCF);ZRE172,173..ARL,IDN,MA,PHL,TH201310-201610

9011906137

main90119-06137

90119T0004

main90119-T0004

9046710216

main90467-10216

9054109117

main90541-09117

9095006124

main90950-06124

90950T6002

main90950-T6002

26 parts on this diagram · 2 diagrams in section
