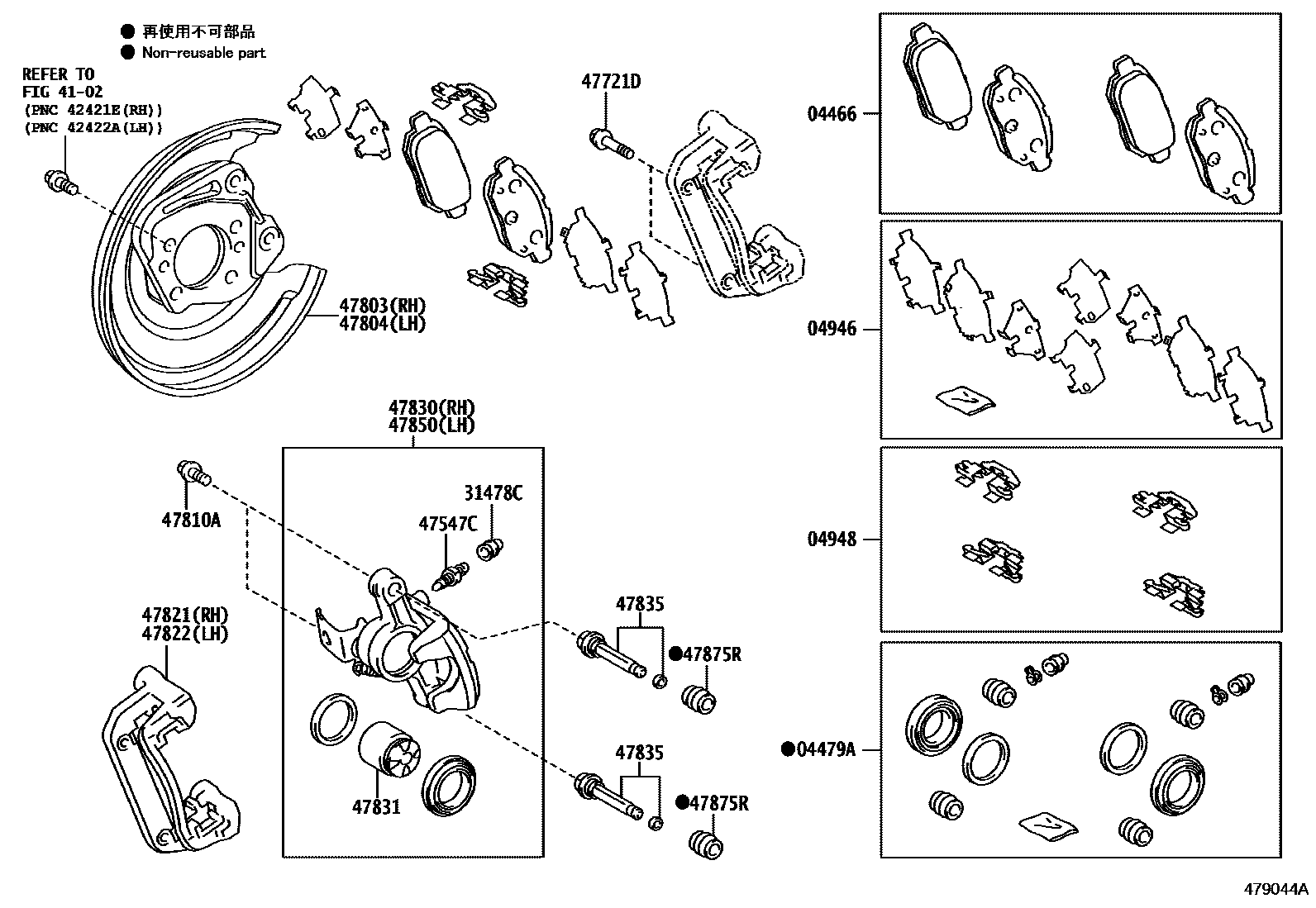

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-02310iNDE170,ZRE172..IND201703-201906

MARK AK NS254

main04466-12150iZRE171..HTWC..TH201310-201601

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02330iNDE170,ZRE172..IND201703-201906

main04479-12260iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-02050iNDE170,ZRE172..IND201703-201906

main04946-12100iZRE172,173..VN201310-201709

04948FITTING KIT, DISC BRAKE, REAR

main04948-02101iNDE170,ZRE172..IND201703-201906

main04948-12060iZRE171..4FC..N201610-202208

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-02160×2iNDE170,ZRE172..IND201405-201702

main31478-52010×2iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201512

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-02160×2iNDE170,ZRE172..IND201703-201906

main47847-52050×2iZRE171..4FC..N201610-202208

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main91552-C1035×4iZRE173..6F;ZRE171..6F..GLI201310-201511

*10-1.25PX35-26

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-02040iNDE170,ZRE172..IND201312-201702

main47803-02050iZZE172..GLI201310-201409

main47803-02060iZRE172..6F..PKN201707-202109

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-02040iZRE172,173..VN201312-201709

main47804-02050iZZE172..GLI201310-201409

main47804-02060iNZE170;ZRE172..CVT..PKN;ZRE171..(CVT,MTM)..N201707

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102×4iZRE171..GEN,SGP;ZRE172..6F..ARL;ZRE171..16J..HTWCF;ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH);ZRE171,173..(16V,20G,20V)..(MA,PHL)201310-201610

main90016-AA104×4iNDE170,ZRE172..IND201405-201702

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-02160iNDE170,ZRE172..IND201703-201906

main47821-12150iZRE171..4FC..N201610-202208

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-02160iNDE170,ZRE172..IND201703-201906

main47821-12150iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201512

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-02180iNDE170,ZRE172..IND201703-201906

main47830-12260iZRE172..CVT..VN201610-202201

47831PISTON, REAR DISC BRAKE

main47831-02180×2iNDE170,ZRE172..IND201405-201702

main47831-52050×2iZRE171,173..CVT..GCC201512-201609

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-02160×4iNDE170,ZRE172..IND201703-201906

main47835-12150×4iNZE170,ZRE173;ZRE172..6F..ARL;ZRE172..CVT..(ARL,IDN,MA,PKN,TAIW,TH);ZRE171..(CVT,MTM)..(GCC,GEN,PKN,SGP,TH);ZRE171..(ATM,CVT)..(16V,GLI,XLI)..(GEN,PHL)201610

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-02180iNDE170,ZRE172..IND201703-201906

main47850-12260iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201512

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150×4iZZE172..GLI201310-201409
