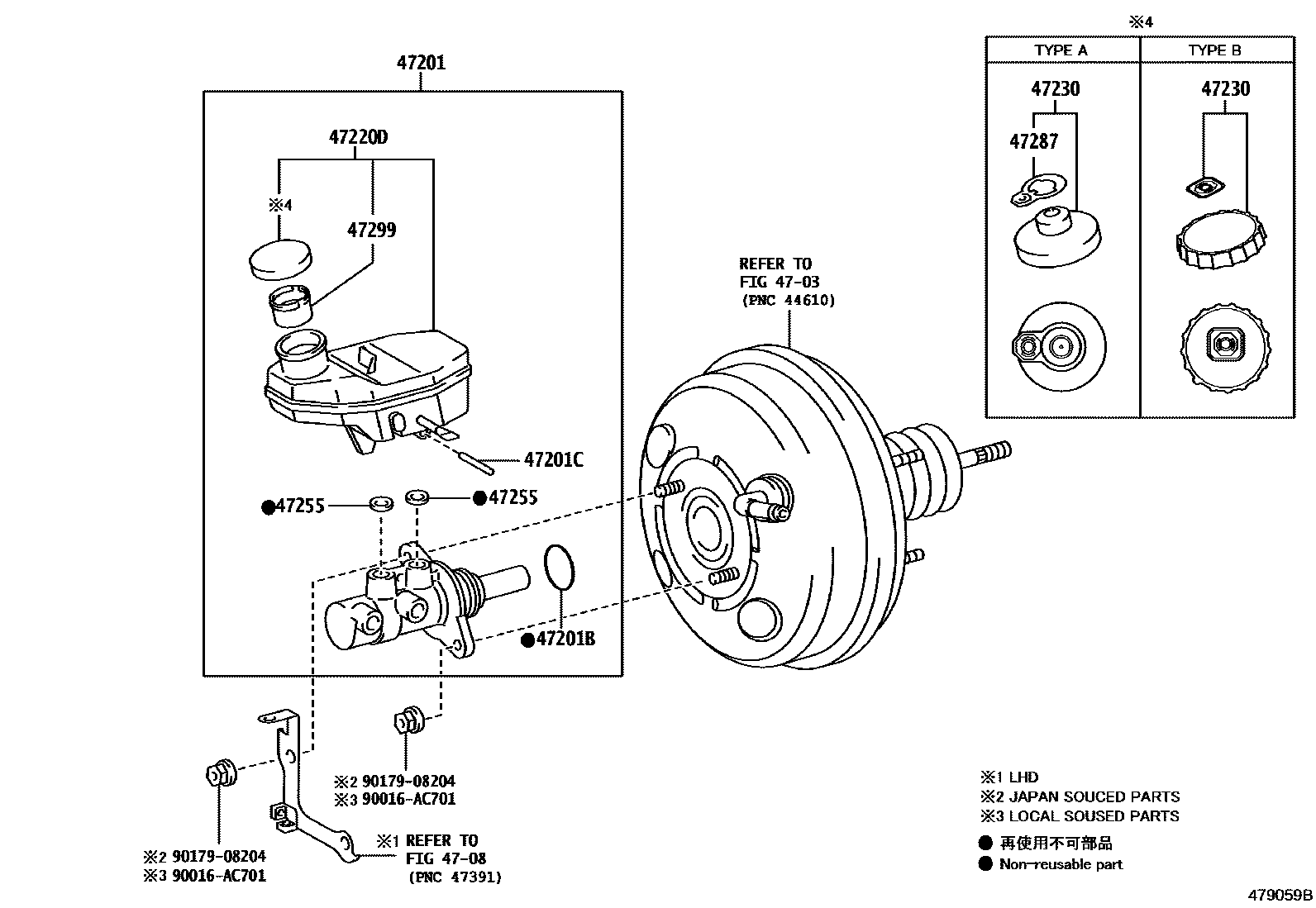

BRAKE MASTER CYLINDER

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

4708BRAKE TUBE & CLAMP

→ Go to FIG 47-08

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-02650iZRE171..6F..GCC201610-201903

main47201-02710iZRE171..16J..CNG201312-201512

main47201-02720iZRE172..VN201312-201709

main47201-02730iZZE172..4FC201310-201409

main47201-02740iZZE172..5F201310-201409

main47201-02750iZRE171..GLI..GEN;ZRE17#..(HTWC,HTWCF,HTWVM)..(ARL,IDN,MA,SGP,TH); ZRE171..RHD..XLI201611-201907

VSC-WITH(WITH CUT OFF SWITCH)

main47201-02760supersedes 47201-02720iZRE172..CVT..VN;ZRE17#..LHD..(16E,16G,16V,18E,20V)201611-202201

main47201-02770iZRE17#..CVT..(GCC,TAIW)201610-201903

main47201-12C00supersedes 47201-12C10iZRE172..GL,VL201703-201906

main47201-12C10iNZE170,ZRE171,172..PKN201405-201707

main47201-02610iZRE171..CNG201601-201610

CNG PACKAGE

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iZRE171,173..4FC..GCC201310-201512

main90016-AH903iZRE171..HTWC..TH201312-201601

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iZZE172201310-201409

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-02230iZRE17#..RHD..(ARL,GEN,IDN,MA,SGP,TH)201611-201907

main47220-02240iZRE172..CVT..VN;ZRE17#..LHD..(16E,16G,16V,18E,20V,XLI)..(GEN,PHL,VN)201611-202201

main47220-02320iZRE171..6F..GCC201610-201903

main47220-02390iZRE172..TAIW201310-201609

main47220-12240iZRE171..4FC..N201703-202208

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D221iZRE171..16J..CNG201508-201512

TYPE A:REFER ILLUST.

main47230-0K010iZRE17#..ARL,GEN,IDN,MA,PHL,SGP,TH,VN201312-201502

TYPE A:REFER ILLUST.

main47230-0K011iZRE17#..ARL,GEN,IDN,MA,PHL,SGP,TH,VN201502-201508

TYPE A:REFER ILLUST.

main47230-0K060iZZE172201310-201409

TYPE A:REFER ILLUST.

main47230-20100iNDE170,NZE170,ZRE171,172..IND,PKN201405-201612

TYPE A:REFER ILLUST.

main47230-47090iZRE171..4FC..N201703-202208

TYPE B:REFER ILLUST.

47255GROMMET, MASTER CYLINDER RESERVOIR

main90016-AT001×2iZRE172,173..VN201312-201709

main90029-48001×2iNDE170,ZRE172..IND201310-201702

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iZRE173..20V..(MA,PHL);ZRE171,172..ARL,GEN,IDN,MA,PHL,SGP,TH201611-201907

main47287-20010iZRE171,173..4FC..GCC201310-201512

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-0D100iZRE172..ARL;ZRE171..LHD..GEN;ZRE171..16J..HTWCF;ZRE171,172..(16E,16G,18V)..(CNG,HTWCF);ZRE17#..(16E,16G,16V,18G,20V,GLI,GXLI)..(GEN,IDN,MA,PHL)201312-201610

main47299-20060iNZE170,ZRE171,172..PKN201310-201707

90016AC701

main90016-AC701

9017908204

main90179-08204

12 parts on this diagram · 1 diagram in section
