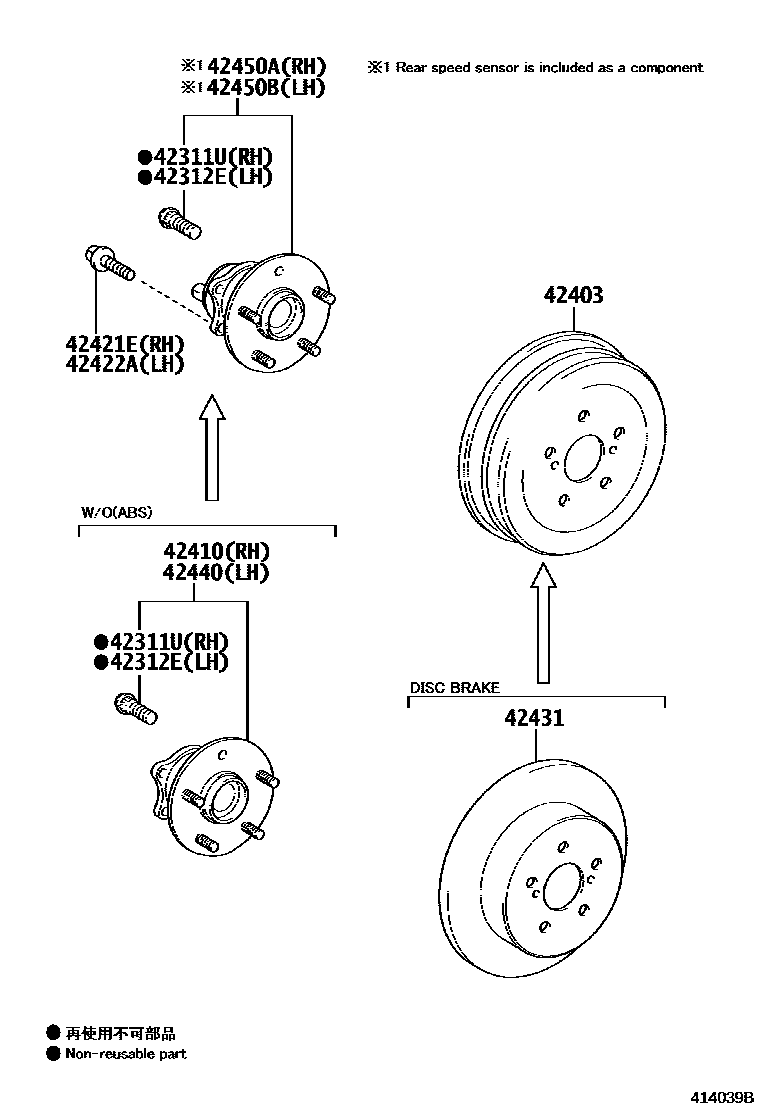

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iZRE171,173..CVT..GCC201512-201609

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iZRE172..TAIW;ZRE171..6F..XLI..GCC201310-201609

42403DRUM SUB-ASSY, REAR BRAKE

main42431-12300×2iZZE172..XLI201310-201409

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-02171iZRE171..16J..CNG201312-201512

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90119-12420×4iZZE172201310-201409

main90119-T0482×4iZRE172..CVT..VN201610-202201

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90119-12420×4iZRE171..16J..CNG;ZRE171,173..4FC..GCC201310-201512

main90119-T0482×4iZRE17#..GCC,TAIW201603-201609

(L)

42431DISC, REAR

main42431-02110×2iZRE171,173..GCC201610-201903

main42431-02250×2iZRE171..HTWC..TH201312-201601

main42431-02260×2iZRE172..TAIW201610-201903

main42431-02280×2iNZE170,ZRE171,172..PKN201407-201605

main42431-02281×2iNZE170,ZRE171,172..PKN201606-201707

main42431-02290×2iNDE170,ZRE172..IND201703-201906

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-02171iNZE170..XLI201707-201911

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-02211iZRE171..4FC..N201610-202208

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-02211iNZE170..GLI;ZRE171,172..PKN201310-201707

10 parts on this diagram · 1 diagram in section
