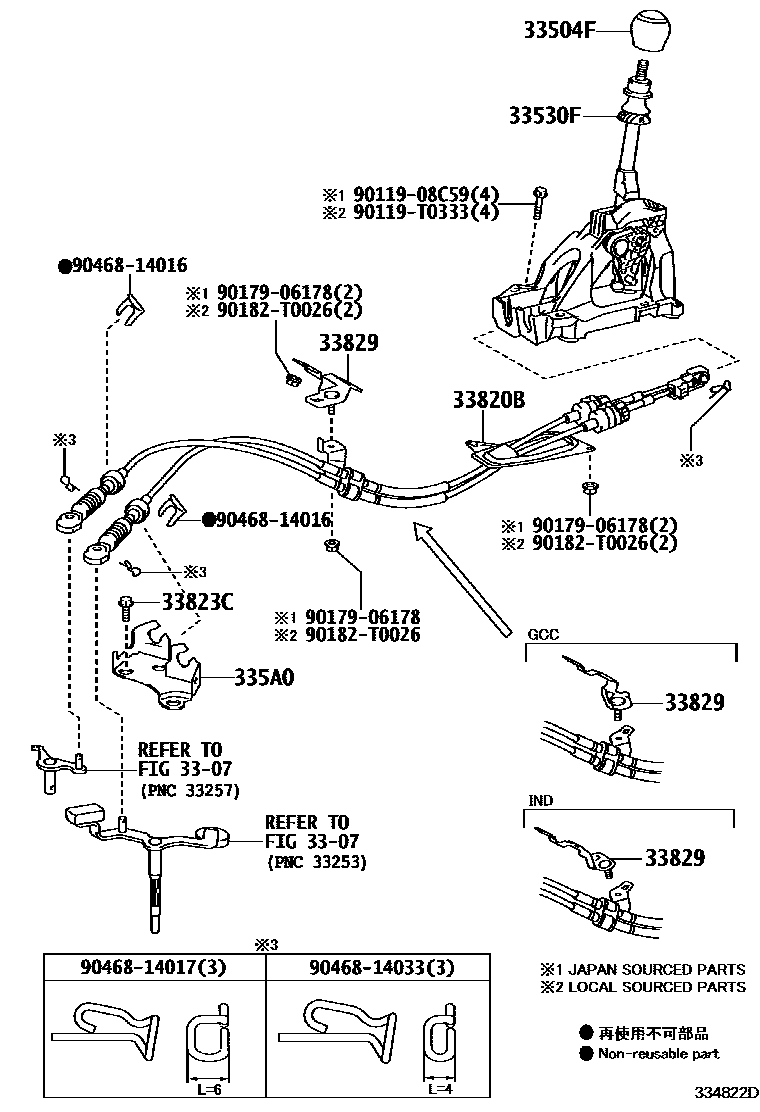

SHIFT LEVER & RETAINER
3307GEAR SHIFT FORK & LEVER SHAFT (MTM)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM0#
main33504-02350-C0iZRE171..16J..HTWCF; ZRE171..GXLI; ZRE172..6F..D; ZRE172..J;ZRE172..6F..(IDN,PKN)201312-201602
BLACK & MD.SILVER,TRIM0#; BLACK & MD.SILVER,TRIM1#; BLACK & MD.SILVER,TRIM2#; LOW GRADE PACKAGE,BLACK & MD.SILVER,TRIM0#,1#
main33504-02350-C2supersedes 33504-12630-C5iZRE171..16J; ZRE171..6F..(16E,XLI)..(GEN,PHL); ZRE171..GXLI; ZRE172..18G..IDN; ZRE172..6F..D201602-201610
BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM1#; BLACK,TRIM2#; LOW GRADE PACKAGE,BLACK,TRIM0#,1#
main33504-02440-C0supersedes 33542-02350-C0iZRE171,172..(16E,18E)..TH; ZRE171..4FC..XLI..GEN; ZRE172..CVT..ARL..D201312-201610
BLACK,TRIM0#; BLACK,TRIM0#,1#; BLACK,TRIM2#
main33504-02450-C0supersedes 33542-02340-C0iZRE171,173..CVT..(PHL,SGP); ZRE171..GLI..GEN; ZRE172,173..MA;ZRE172..(18GS,18V)..TH;ZRE172..CVT..ARL..(E,N); ZRE172..18E..TH; ZRE172..18V..IDN;ZRE171..16G..HTWCF201312-201610
BLACK & MD.SILVER,TRIM0#; BLACK & MD.SILVER,TRIM0#,1#; BLACK & MD.SILVER,TRIM0#,2#; BLACK & MD.SILVER,TRIM2#; SPORTY PACKAGE,BLACK & MD.SILVER,TRIM2#
BLACK & MD.SILVER,TRIM0#,1#; BLACK & MD.SILVER,TRIM0#,2#; SPORTY PACKAGE,BLACK & MD.SILVER,TRIM2#
main33504-02680-C0iZRE171..16G..TH;ZRE172..CVT..(IDN,IND); ZRE171..GLI..GEN; ZRE172..18E..TH; ZRE172..MA;ZRE172..CVT..ARL..(E,N);ZRE172,173..(18GS,18V,20G,20V)..(MA,PHL,TH)201611-201907
BLACK/SILVER,TRIM0#; BLACK/SILVER,TRIM0#,1#; BLACK/SILVER,TRIM2#; SPORTY PACKAGE,BLACK/SILVER,TRIM2#
BLACK,TRIM0#; NEW J PACKAGE,BLACK,TRIM0#
BLACK,TRIM0#,1#; BLACK,TRIM0#,2#; BLACK,TRIM2#
BLACK & MD.SILVER,TRIM0#
BLACK,TRIM0#
BLACK,TRIM0#,1#; BLACK,TRIM0#,2#; BLACK,TRIM2#
XLI PLUS,BLACK/SILVER,TRIM0#,1#
33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)
335A0BRACKET ASSY, CONTROL CABLE
33820BCABLE ASSY, TRANSMISSION CONTROL
33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1
main33823-02220iZRE171..CVT..(PHL,SGP);ZRE171..CVT..(CNG,HTWCF);ZRE172..CVT..(ARL,IDN,MA,TH)201312-201610
33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)
(L)
33829SUPPORT, TRANSMISSION CONTROL CABLE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
NO.2:REFER ILLUST.
9011908C59
main90119-08C59
90119T0333
main90119-T0333
9017906178
main90179-06178
90182T0026
main90182-T0026
9046814016
main90468-14016
9046814017
main90468-14017
9046814033
main90468-14033
15 parts on this diagram · 14 diagrams in section
