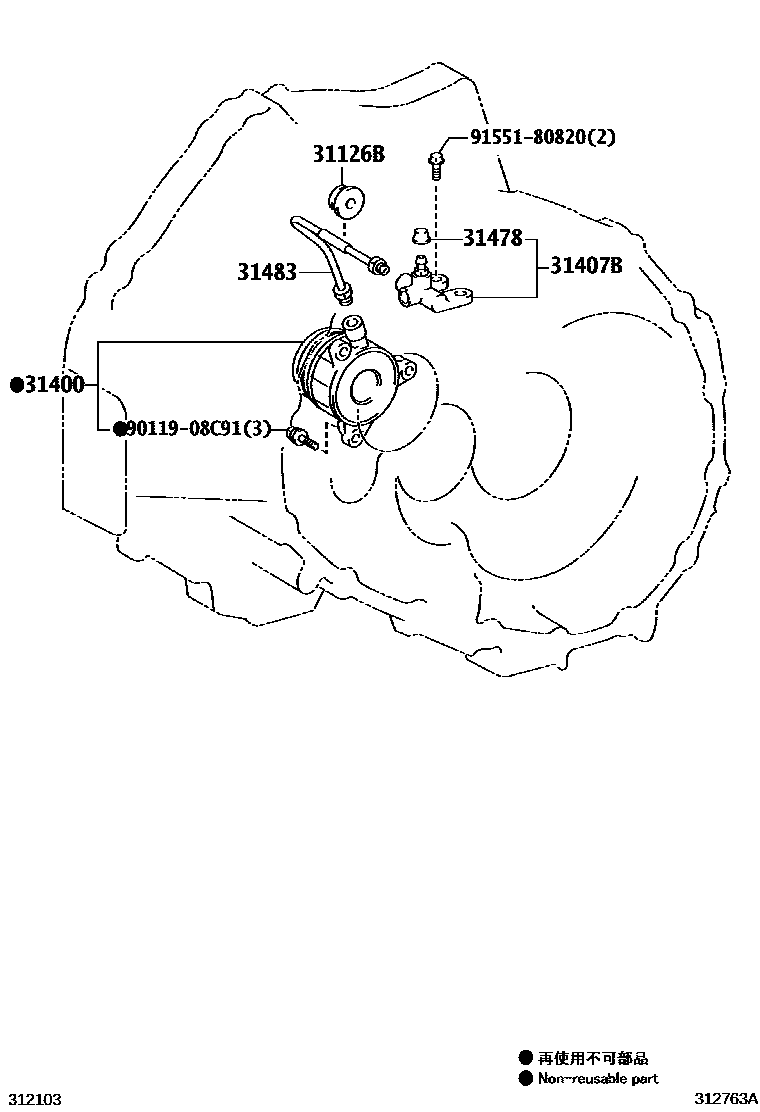

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1 0004 1

31126BBOOT, CLUTCH TUBE

main31126-20090iZRE173..6F;ZRE171..6F..GLI201310-201511

31400CYLINDER ASSY, CLUTCH RELEASE W/BEARING

main31400-39006iZRE173..6F201310-201511

main31400-59015iNDE170,ZRE171,172..6F201310-201511

main31400-59025iZRE171..16J201512-201601

31407BBLEEDER SUB-ASSY, CLUTCH RELEASE

main31407-20011iZRE173..6F201310-201511

main31407-52010iZRE171..6F..GLI201310-201511

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iZZE172..5F201310-201409

31483TUBE, BLEEDER CLUTCH RELEASE

main31482-20610iZRE173..6F201310-201511

main31482-52090iZRE171..6F..GLI201310-201511

9011908C91

main90119-08C91

9155180820

main91551-80820

7 parts on this diagram · 4 diagrams in section
