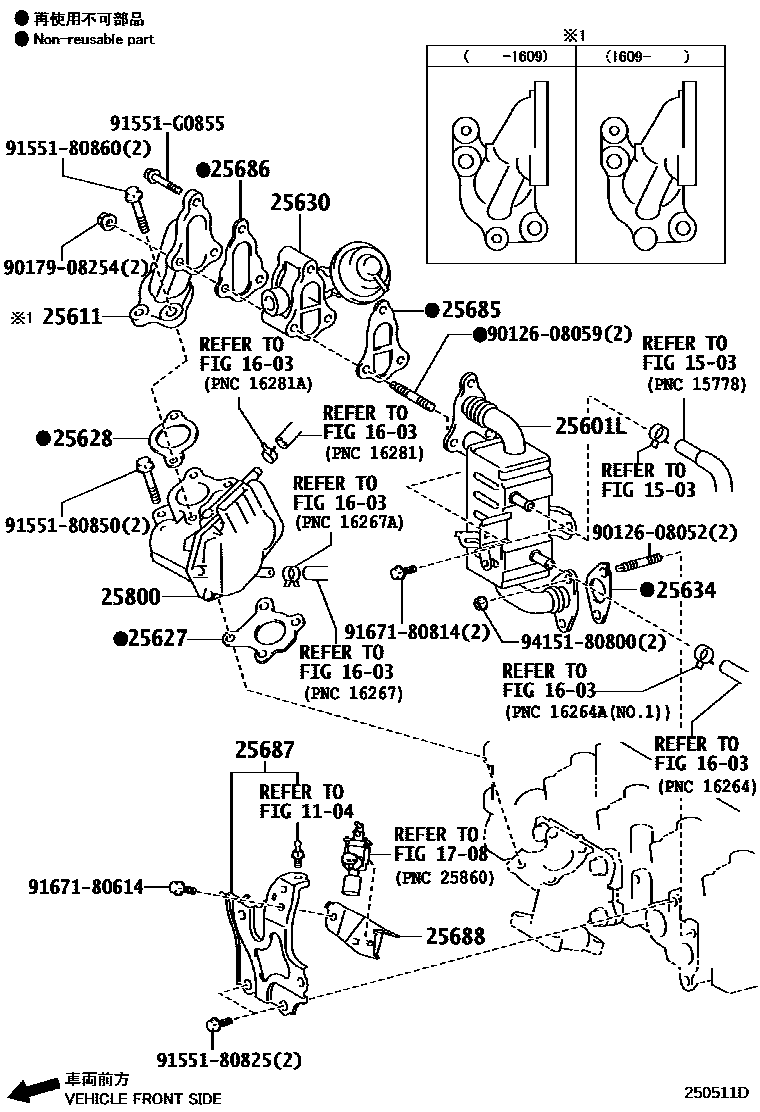

EXHAUST GAS RECIRCULATION SYSTEM

1104CYLINDER HEAD

→ Go to FIG 11-04

1503ENGINE OIL COOLER

→ Go to FIG 15-03

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

1708VACUUM PIPING

→ Go to FIG 17-08

25601LPIPE SUB-ASSY, EGR W/COOLER

main25601-33060i1NDTV..NDE170201405-201411

main25601-33061i1NDTV..NDE170201412-201702

25611CONNECTOR, EGR PIPE

main25611-33020i1NDTV..NDE170201405-201609

main25611-33021i1NDTV..NDE170201609-201702

25627GASKET, EGR VALVE

main25627-33010i1NDTV..NDE170201405-201702

25628GASKET, EGR INLET

main25628-33040i1NDTV..NDE170201405-201702

25630VALVE ASSY, EGR, NO.2

main25630-33010i1NDTV..NDE170201405-201411

main25630-33020i1NDTV..NDE170201411-201702

25634GASKET, EGR PIPE

main25634-33010i1NDTV..NDE170201405-201702

25685GASKET, EGR COOLER, NO.1

main25685-33010i1NDTV..NDE170201405-201702

25686GASKET, EGR COOLER, NO.2

main25686-33010i1NDTV..NDE170201405-201702

25687BRACKET, EGR COOLER, NO.1

main25687-33010i1NDTV..NDE170201405-201702

25688BRACKET, EGR COOLER, NO.2

main25688-33010i1NDTV..NDE170201405-201702

25800VALVE ASSY, ELECTRIC EGR CONTROL

main25800-33011i1NDTV..NDE170201405-201702

9012608052

main90126-08052

9012608059

main90126-08059

9017908254

main90179-08254

9155180825

main91551-80825

9155180850

main91551-80850

9155180860

main91551-80860

91551G0855

main91551-G0855

9167180614

main91671-80614

9167180814

main91671-80814

9415180800

main94151-80800

25 parts on this diagram · 1 diagram in section
