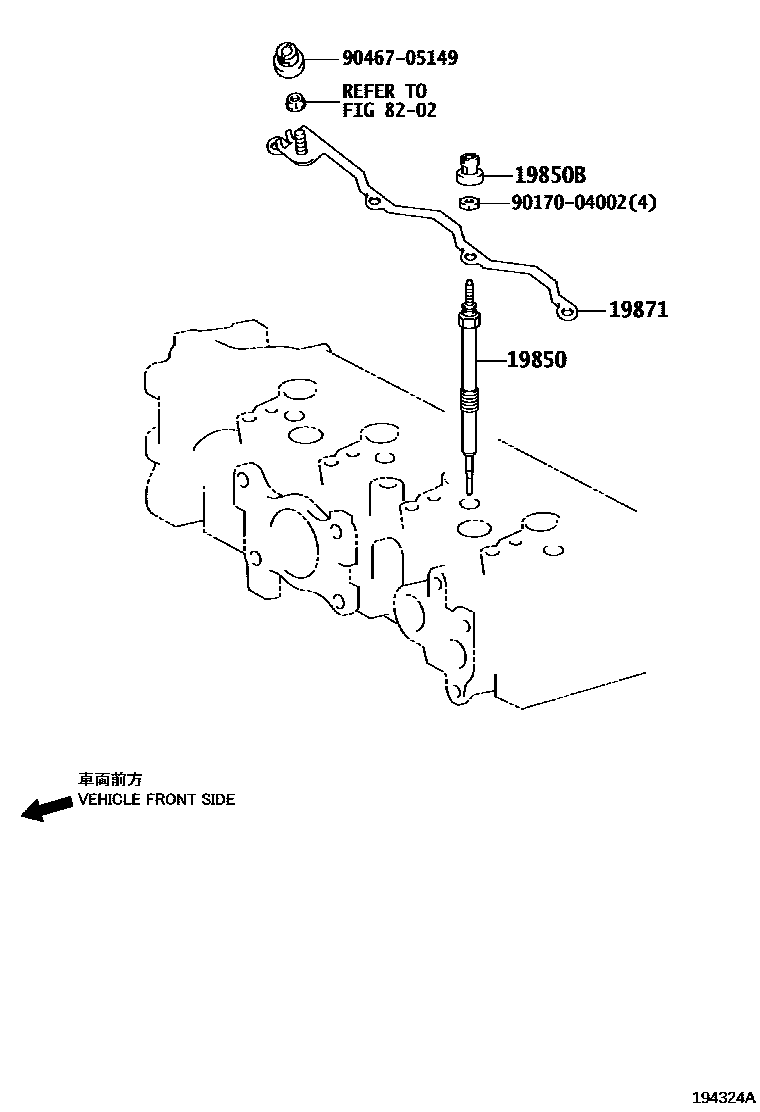

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19850PLUG ASSY, GLOW

main19850-33030×4i1NDTV..NDE170201405-201702

*BV-GV=12V-11V

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i1NDTV..NDE170201703-201906

19871CONNECTOR, GLOW PLUG NO.1

main19871-33020i1NDTV..NDE170201405-201702

8202WIRING & CLAMP

→ Go to FIG 82-02

9017004002

main90170-04002

9046705149

main90467-05149

6 parts on this diagram · 4 diagrams in section
