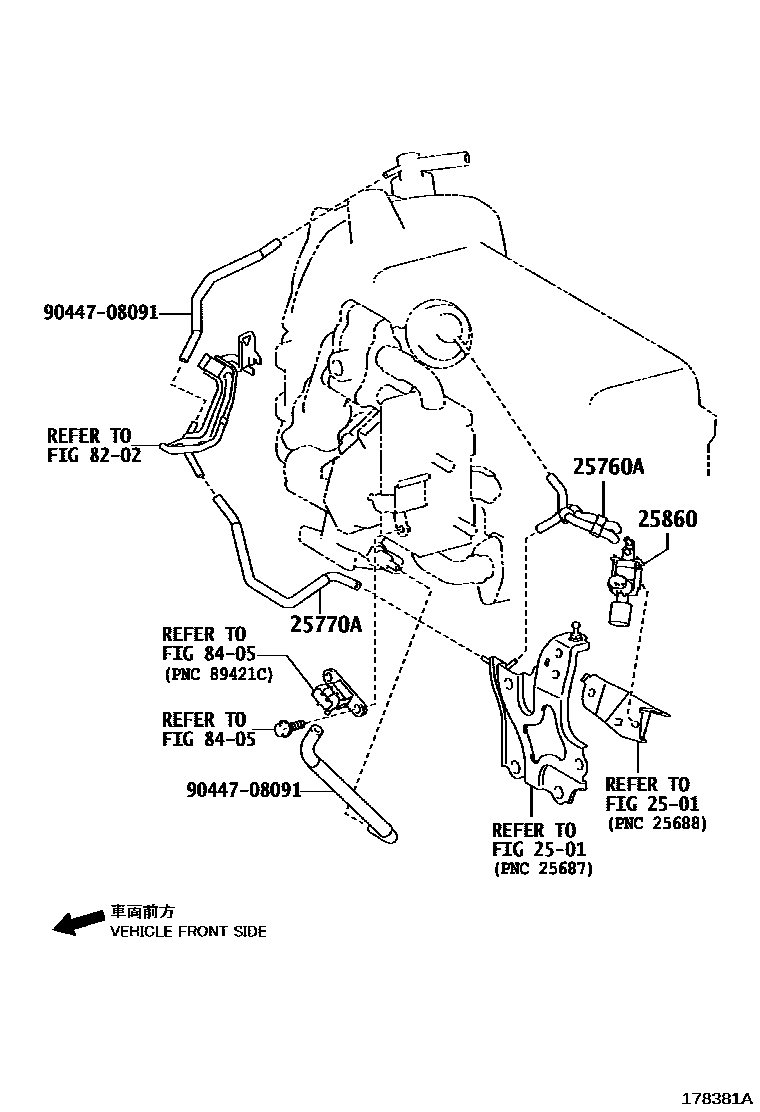

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0006 1 0007 1 0008 1 0009 1 0010 1 0012 1

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

25760AHOSE ASSY, VACUUM TRANSMITTING

main25760-33110i1NDTV..NDE170201405-201702

25770AHOSE ASSY, VACUUM TRANSMITTING, NO.2

main25760-33130i1NDTV..NDE170201405-201702

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0D100i2NZFE..NZE170201707-201911

main25860-21120i1ZZFE..ZZE172201310-201409

main25860-30070i1NDTV..NDE170201703-201906

main90910-12281i3ZRFE..ZRE173..20G201610-201703

8202WIRING & CLAMP

→ Go to FIG 82-02

8405ELECTRONIC CONTROLED DIESEL (ECD)

→ Go to FIG 84-05

9044708091

main90447-08091

7 parts on this diagram · 10 diagrams in section
