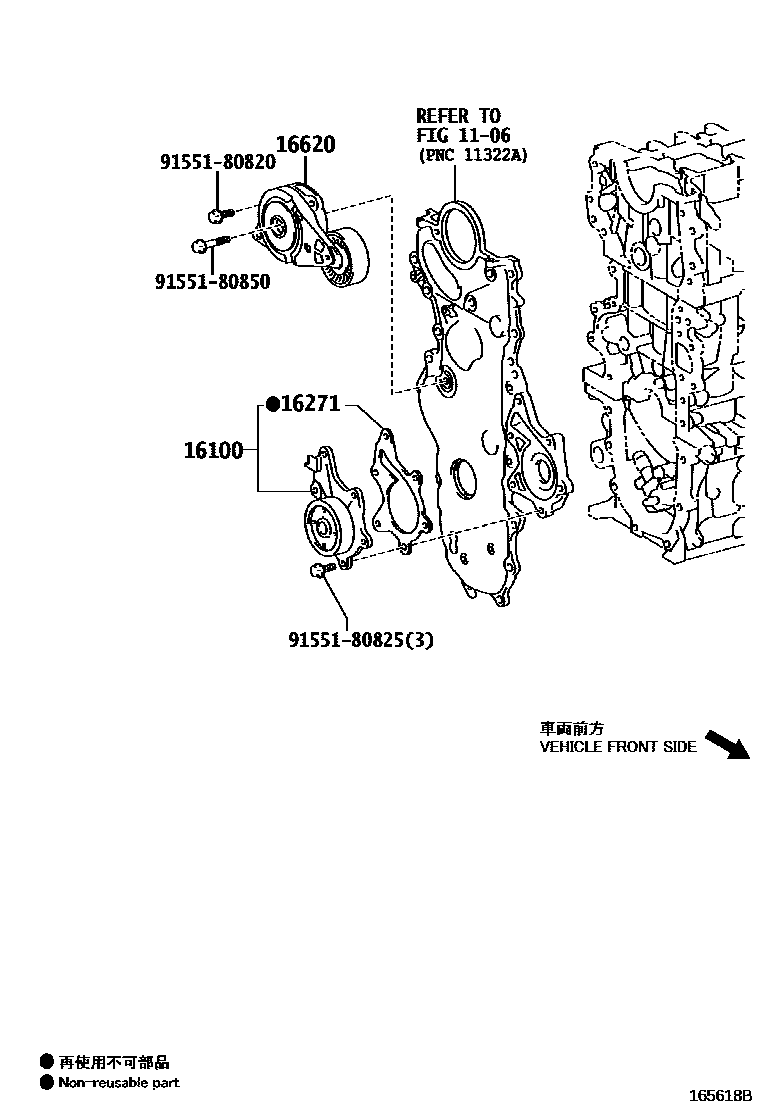

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0008 1

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-09740i1ZRFBE..ZRE171201512-201610

(L)

main16100-29157i2NZFE..NZE170201707-201812

main16100-29158i2NZFE..NZE170201812-201911

main16100-29415i1ZZFE..ZZE172201310-201409

main16100-39466i3ZRFE..ZRE173..6F;1ZRFE..ZRE171..6F..GLI201310-201511

main16100-39525i1NDTV..NDE170201405-201606

main16100-39526i1NDTV..NDE170201703-201906

main16100-39565i1ZRFBE..ZRE171201512-201610

(J)

16271GASKET, WATER PUMP

main16271-21021i2NZFE..NZE170201707-201911

main16271-33030i1NDTV..NDE170201703-201906

main16271-37010i2ZRFE..ZRE172..IND201310-201702

main16271-37030i2ZRFE..ZRE172..6F..PKN201610-202109

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W093i1ZZFE..ZZE172201310-201409

main16620-33021i1NDTV..NDE170201405-201411

main16620-33022i1NDTV..NDE170201412-201512

main16620-33023i1NDTV..NDE170201601-201702

main16620-33024i1NDTV..NDE170201703-201801

main16620-33025i1NDTV..NDE170201802-201906

main16620-37030i1ZRFE,3ZRFE..ZRE171,173..CVT..GCC201512-201609

9155180820

main91551-80820

9155180825

main91551-80825

9155180850

main91551-80850

7 parts on this diagram · 5 diagrams in section
