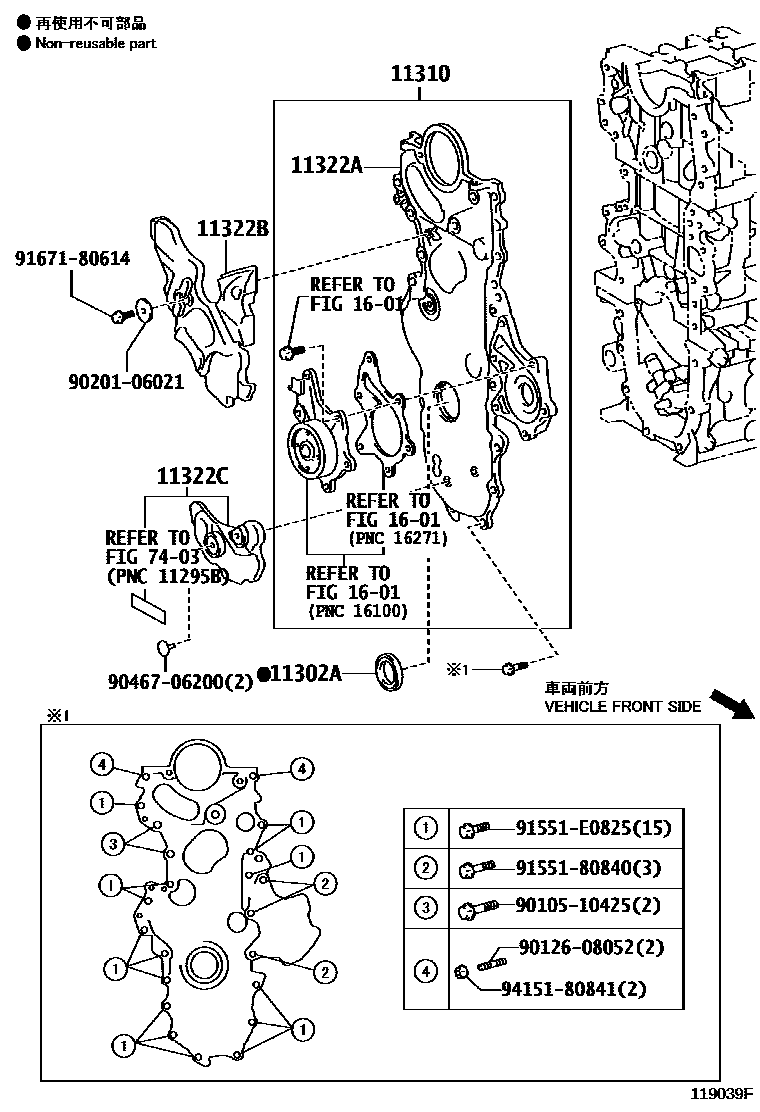

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0T020i2ZRFE..ZRE172..TAIW201310-201609

(L)

main11310-0T140i1ZRFE..ZRE171..6F..GCC201601-201609

(L)

main11310-0T150i3ZRFE..ZRE173201610-202007

(L)

main11310-37011i1ZRFAE..ZRE171201611-201907

main11310-37032i3ZRFE..ZRE173..6F201310-201511

main11310-37040i1ZRFBE..ZRE171201512-201610

(J)

main11310-37070i3ZRFE..ZRE173..GCC201512-201609

(J)

main11321-0D030i1ZZFE..ZZE172201310-201409

(L)

main11321-22021i1ZZFE..ZZE172201310-201409

(J)

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-38089i1ZRFE,2ZRFE..ZRE171,172..PKN201310-201707

main90311-38096i1ZRFE..ZRE171..6F..GLI201310-201511

main90311-40040i1NDTV..NDE170201703-201906

main90311-T0048i1ZRFE..ZRE171..CNG;1ZRFE,3ZRFE..ZRE171,173..4FC..GCC201310-201512

(L)

11310COVER ASSY, TIMING CHAIN

main11310-33011i1NDTV..NDE170201405-201409

main11310-33012i1NDTV..NDE170201410-201507

main11310-33013i1NDTV..NDE170201507-201702

11322ACOVER, TIMING BELT, NO.1

main11321-33020i1NDTV..NDE170201405-201507

main11321-33021i1NDTV..NDE170201507-201702

11322BCOVER, TIMING BELT, NO.2

main11322-33020i1NDTV..NDE170201703-201906

11322CCOVER, TIMING BELT, NO.3

main11323-33010i1NDTV..NDE170201405-201702

1601WATER PUMP

→ Go to FIG 16-01

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

9010510425

main90105-10425

9012608052

main90126-08052

9020106021

main90201-06021

9046706200

main90467-06200

9155180840

main91551-80840

91551E0825

main91551-E0825

9167180614

main91671-80614

9415180841

main94151-80841

16 parts on this diagram · 3 diagrams in section
