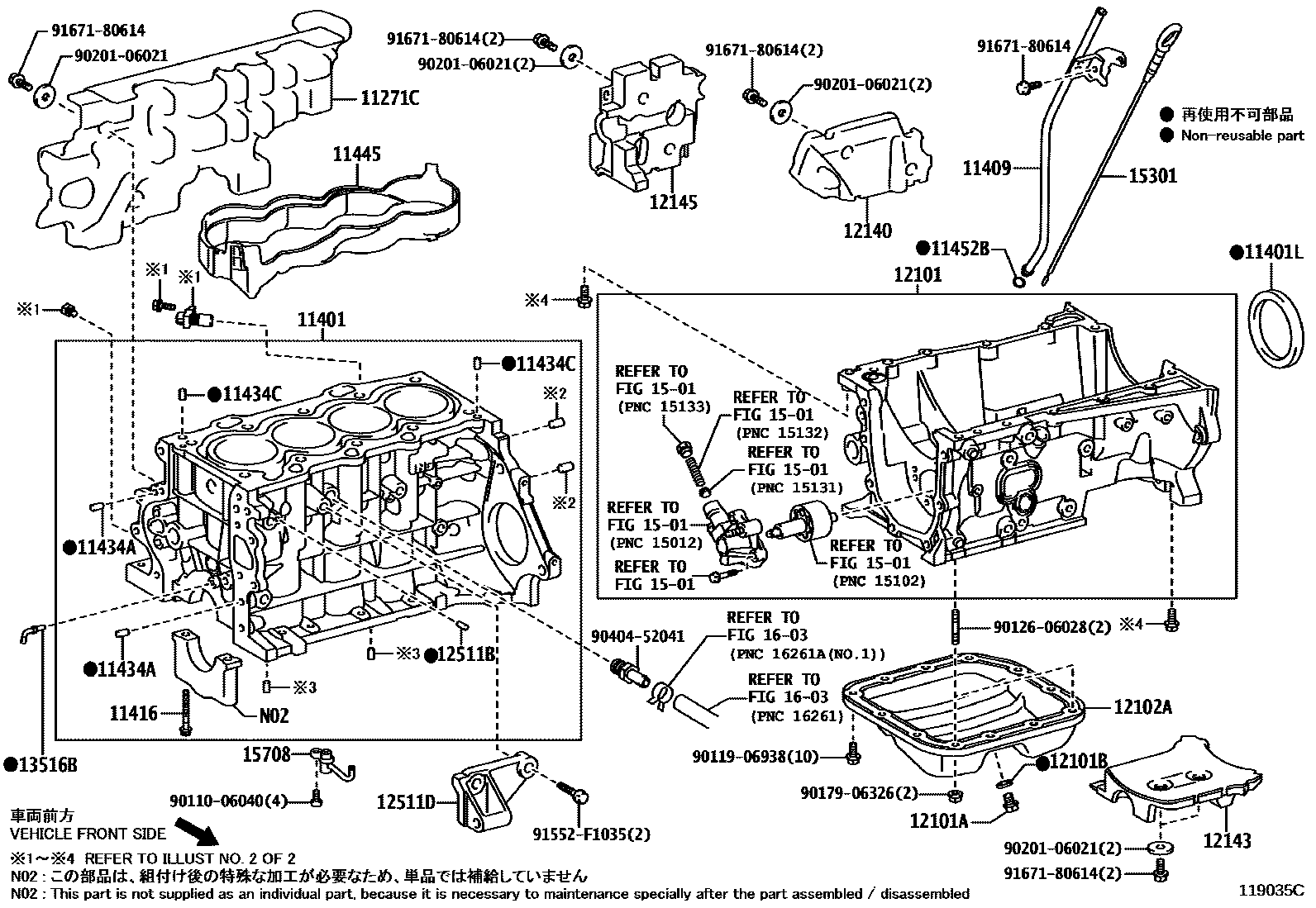

CYLINDER BLOCK
11271CCOVER, CYLIVDER BLOCK SIDE
11401BLOCK SUB-ASSY, CYLINDER
(L)
(L)
(L)
(L)
(L)
(J)
(J)
(J)
(J)
main11410-39245i2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..6F..(ARL,IDN,IND);2ZR#..ZRE172..CVT..(ARL,IDN,IND,MA,PKN,TAIW,TH)201612-202302
(J)
(J)
11401LSEAL, ENGINE REAR OIL
(J)
(J),TYPE A:REF ILL.
(J),TYPE B:REF ILL.
(J),TYPE B:REF ILL.
(J)
(L),TYPE A:REF ILL.
(L)
(L)
main90311-T0088i2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH201610-202201
11409GUIDE SUB-ASSY, OIL LEVEL GAGE
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
main90910-02163i2ZRFE..ZRE172..CVT..PKN;1ZRFAE,3ZRFE..ZRE171,173;1ZRFE..ZRE171..(CVT,MTM)..N201310-202208
main90910-02163i2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH201702-202201
(J)
main90910-T2008i1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH,VN201807-202201
(L)
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=12,OD=4.0
L=18,OD=8
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=12,OD=4.0
L=18,OD=8
11445SPACER, CYLINDER BLOCK WATER JACKET
11452GUIDE, OIL LEVEL GAGE
main11452-0T110i1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH,VN201802-202201
(L)
main11452-37011i1ZRF,1ZRFBE,1ZRFE,2ZR#..ZRE171,172..ARL,GCC,GEN,IDN,IND,MA,PHL,TAIW,TH,VN201802-202201
(J)
11452BRING, O(FOR OIL LEVEL GAGE GUIDE)
main90301-T0025i2ZRFE..ZRE172..CVT..VN;2ZRFE..ZRE172..18E..VN;2ZRFE..ZRE172..ARL,IDN,IND,MA,TAIW;1ZRF,1ZRFBE,1ZRFE,2ZRFBE,3ZRFE..ZRE17#..GCC,GEN,MA,PHL,TH,VN201310-202201
(L)
(J)
12101PAN SUB-ASSY, OIL
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
(L)
(J)
12102APAN SUB-ASSY, OIL, NO.2
(L)
(J)
12140COVER, OIL PAN
12143COVER, OIL PAN
12145SILENCER, OIL PAN COVER, NO.2
12511BPIN, RING(FOR ALTERNATOR BRACKET)
12511DBRACKET, ALTERNATOR
1501ENGINE OIL PUMP
15301GAGE SUB-ASSY, OIL LEVEL
TYPE B:REFER ILLUST.
*264
TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
15708NOZZLE SUB-ASSY, OIL, NO.1
(L)
(J)
1603RADIATOR & WATER OUTLET
9011006040
main90110-06040
9011906938
main90119-06938
9012606028
main90126-06028
9017906326
main90179-06326
9020106021
main90201-06021
9040452041
main90404-52041
91552F1035
main91552-F1035
9167180614
main91671-80614
32 parts on this diagram · 7 diagrams in section
