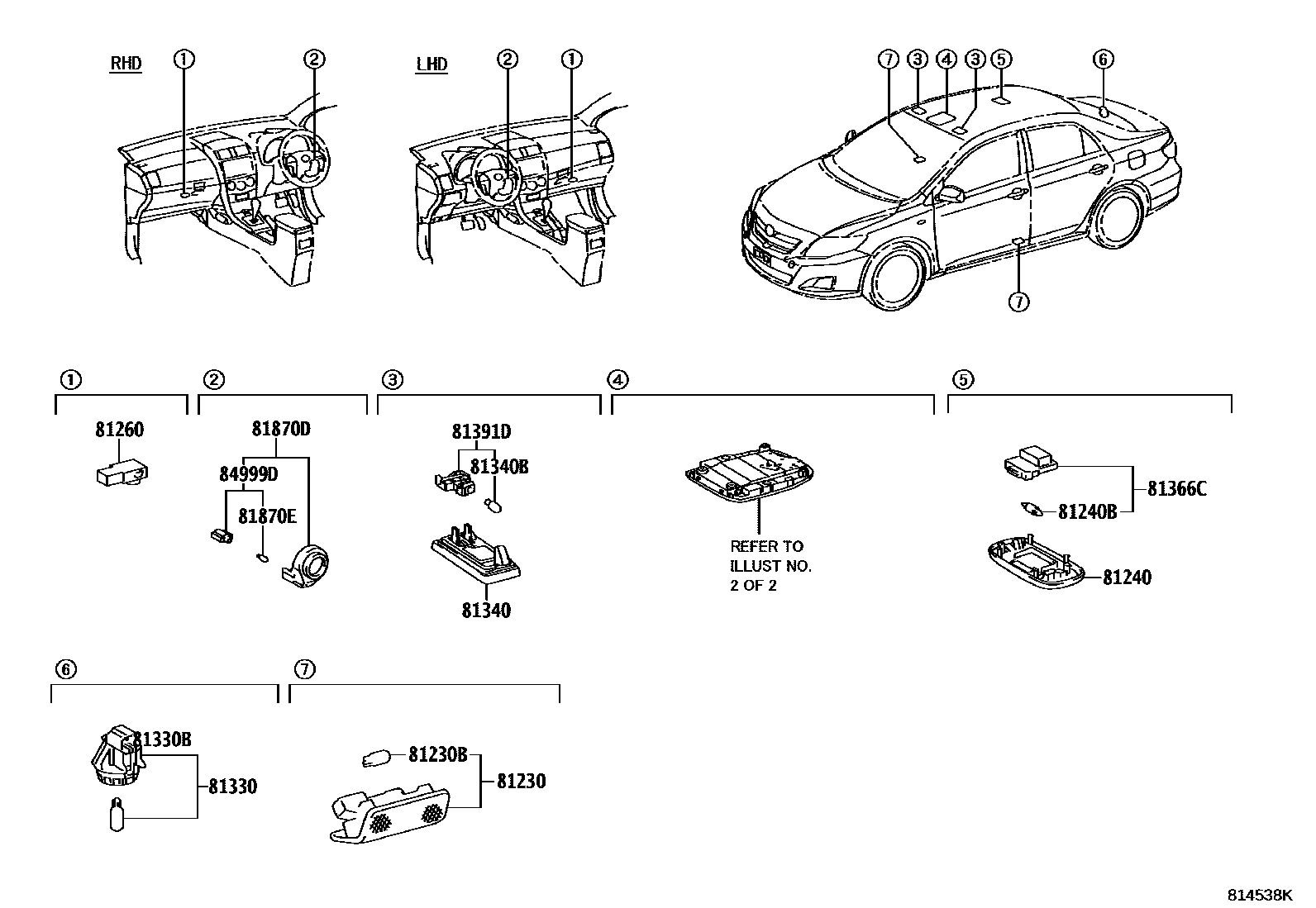

INTERIOR LAMP

0001 1 0002 1

81230LAMP ASSY, COURTESY

main81230-02040×2iZRE143,ZZE142..VN200712-201010

81230BBULB(FOR COURTESY LAMP)

main90981-12010×2iZRE143,ZZE142..(18E,20E,20G,20V)..TAIW200712-201007

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-52040-B1iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

LT.GRAY,TRIM1#

main81240-52040-E0iCE140,NZE140200712-201104

GREGE,TRIM4#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZZE14#..(16J,18G,18V)..TAIW200712-200811

12V 8W

81260LAMP ASSY, GLOVE BOX

main81080-48010iZZE142..(18G,18V)..TAIW200712-200811

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-02030iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200801-201008

main81330-0D020iZZE14#..(16J,18G,18V)..TAIW200712-200811

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iZZE14#..(16J,18G,18V)..TAIW200712-200811

12V 3.8W

81340LAMP ASSY, VANITY

main81340-30100-B0×2iZRE142..MA;ZRE143..CVFC..(MA,TAIW,TH)201007-201311

LT.GRAY,TRIM1#

main81340-30100-E1×2iZZE142..(18G,18V)..TAIW200712-200811

GREGE,TRIM4#

81340BBULB (FOR VANITY LAMP)

main90981-11062×2iZZE142..(18G,18V)..TAIW200712-200811

12V 8W

81366CBASE, ROOM LAMP SWITCH

main81366-68010iZZE14#..(16J,18G,18V)..TAIW200712-200811

81391DHOLDER, LAMP BULB

main81391-30010×2iZZE142..(18G,18V)..TAIW200712-200811

81870DLAMP ASSY, KEY CYLINDER

main81870-42020iZZE141..TAIW200712-200811

81870EBULB, KEY CYLINDER LAMP

main84999-10250iZZE141..TAIW200712-200811

14V 1.4W

84999DSOCKET, KEY CYLINDER LAMP

main90010-01030iZZE141..TAIW200712-200811

14 parts on this diagram · 2 diagrams in section
