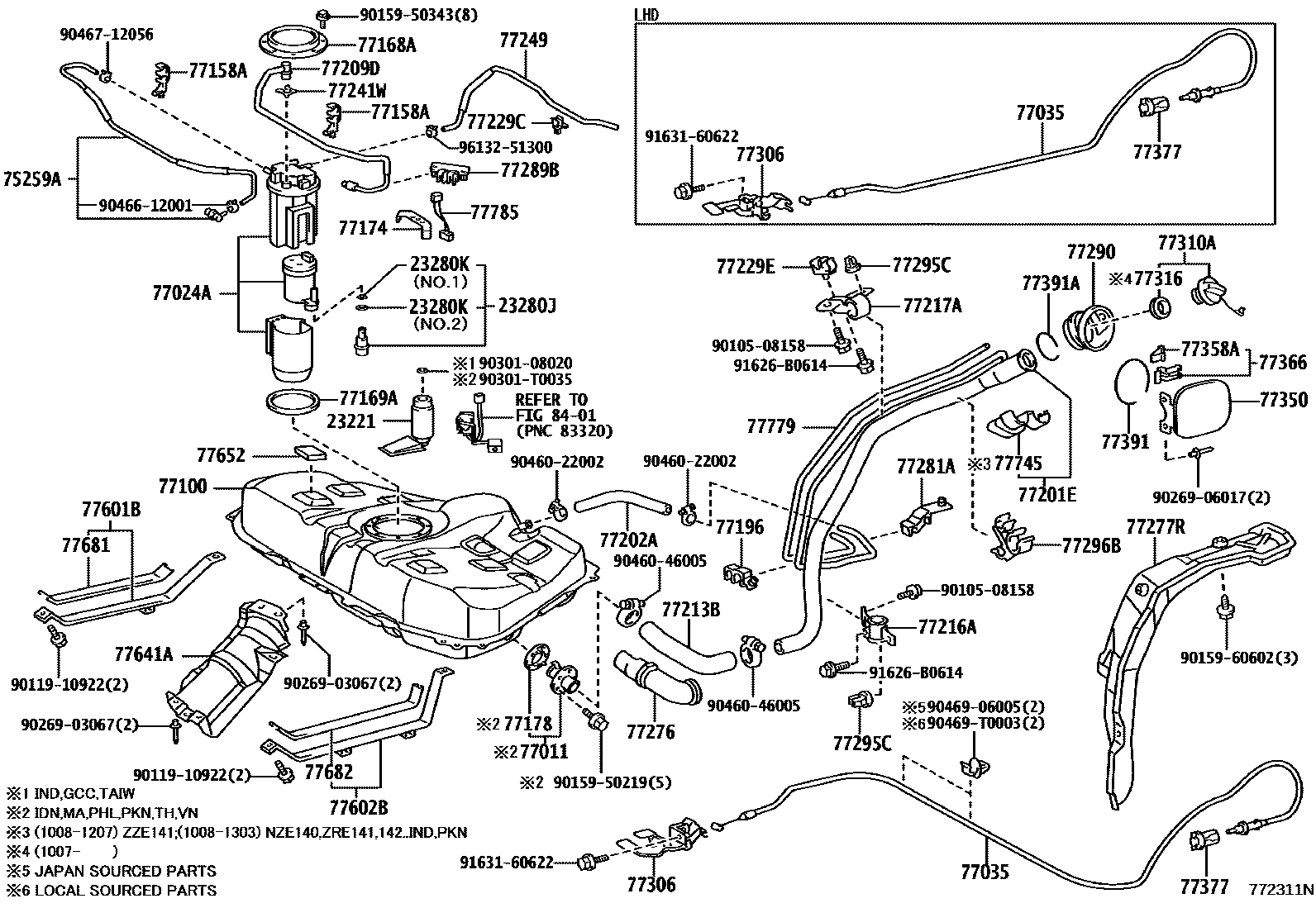

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TUBE 0005 1FUEL TUBE 0006 1FUEL TUBE

23221PUMP, FUEL

main23220-0D170i1ZRFE,3ZZFE..ZRE141,ZZE141..MA,PHL,PKN,TH200801-201207

main23220-0D171i1ZRFE..ZRE141..6F..TH;1ZRFE,3ZZFE..ZRE141,ZZE141..16E,16G,16V,D,LIMO,N201208-201211

main23220-0D180i1ZZFE..ZZE142..IND200808-201105

main23220-0D190i1ZZFE,3ZZFE..ZZE14#..(16J,18G,18V)..TAIW200712-201207

main23220-0D191i1ZRFE..ZRE141..GCC201208-201310

main23220-0M030i2NZFE..NZE140200808-201104

main23220-0T110i3ZRFE..ZRE143..IDN,PHL,TH200812-201207

main23220-0T111i2ZRFE..ZRE142..18G..TH201208-201211

main23220-0T120i3ZRFE..ZRE143..TAIW200811-201207

main23220-0T121i2ZRFE,3ZRFE..ZRE142,143..GCC,TAIW201208-201310

main23220-0T160i2ZRFE..ZRE142..IND201105-201207

main23220-0T161i2ZRFE..ZRE142..IND201208-201312

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-0D010i2ZRFE..ZRE142..HTWCF201211-201311

main23280-21010i1ZZFE,3Z#..ZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201211

main23280-21020i2NZFE..NZE140200808-201104

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-04013i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH200712-201211

NO.1

main90301-15024i1ZZFE,3ZRFE..ZRE143,ZZE142..VN200712-201211

NO.2

75259AHOSE, FUEL

main77259-02060iZZE142..PKN200712-201211

main95337-06020iNDE140200808-201105

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-02040iCE140,NZE140200801-201211

77024APLATE SUB-ASSY, FUEL SUCTION

main77024-02132iZZE14#..(16J,18G,18V)..TAIW200712-201310

main77024-02142iZRE143,ZZE142..VN200801-201211

main77024-02152iZZE142..IND200808-201312

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-02260iZZE142..PKN200801-201211

main77035-02270iZRE143,ZZE142..VN200802-201010

main77035-02280iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

main77035-02290iNDE140,ZRE142..IND200808-201312

77100TANK ASSY, FUEL

main77001-02340iNDE140201006-201312

main77001-02360iZZE141..16G..TH200912-201008

FFV SPEC

main77001-02360iZZE141201008-201311

main77001-02420iZZE142..PKN200801-201211

main77001-02430iZRE142,143..TAIW200712-201310

main77001-02440iCE140200808-201104

main77001-02510iZRE142..IND200808-201312

main77001-02530iZRE141,142..GCC200901-201310

main77001-02650iZRE142..HTWCF201211-201311

77158ASUPPORT, TANK SUCTION TUBE

main77158-20040iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201311

77168APLATE, FUEL TANK VENT TUBE SET

main77168-02020iZZE14#..(16J,18G,18V)..TAIW200712-201310

main77168-52020iCE140,NZE140200801-201211

77169AGASKET, FUEL SUCTION TUBE SET

main77169-52010iZZE14#..(16J,18G,18V)..TAIW200712-201105

main77169-53010iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201211

77174SUPPORT, FUEL SUCTION, NO.1

main77174-02070iZZE14#..(16J,18G,18V)..TAIW200712-201310

main77174-02080iZRE143,ZZE142..VN200801-201211

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-0A010iZRE141,142..ATM..(16J,18G)..TH200801-201211

77196CLAMP, EVAPORATION VENT TUBE, NO.1

main77196-12060iNDE140,ZZE142..IND200712-201211

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-02250iZRE141,142..IDN,MA,PHL,VN;ZRE143..CVFC..(IDN,MA,PHL,VN)200801-201207

main77201-02260iZRE143,ZZE14#..GCC,TAIW200712-201310

main77201-02270iNZE140,ZRE141,142..IND,PKN200808

main77201-02280iCE140200808-201104

main77201-02340iNDE140201006-201009

main77201-02341iNDE140201010-201312

main77201-02460iZRE141..6F..TH;ZRE14#,ZZE141..(16G,18E,20G,20V,LIMO)..TH..HTWC201205-201211

77202AHOSE, FUEL, NO.1 (FOR BREATHER TUBE)

main95313-13034iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,200712-201211

L=340

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-02130iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201211

main77209-02240iZRE142..HTWCF201211-201311

main77209-12240iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201312

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-32090iZRE141,142..ATM..(16J,18G)..TH200712-201211

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-02140iZZE14#..(16J,18G,18V)..TAIW200712-201207

main77216-02160iZRE141..6F..TH;ZRE14#,ZZE141..(16G,18E,20G,20V,LIMO)..TH..HTWC201205-201211

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-02100iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201207

main77217-02130iZRE141,142..ATM..(16J,18G)..TH201205-201211

77229CCLAMP, BREATHER TUBE

main77229-12110iZZE14#..(16J,18G,18V)..TAIW200712-201211

77229ECLAMP, BREATHER TUBE

main77229-12100iZZE14#..(16J,18G,18V)..TAIW200712-201211

77241WCLIP, TUBE JOINT

main77241-33011iZRE143,ZZE14#..IDN,MA,PHL,TH201002-201211

main77241-60320iZZE14#..(16J,18G,18V)..TAIW200712-201001

77249HOSE, FUEL EMISSION

main77249-02030iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201211

77276PROTECTOR, FUEL HOSE

main77276-12050iZRE143,ZZE142..VN200712-201111

main77276-12120iZRE142..IDN,IND,MA,VN;CE140,ZRE141..MTM..(16J,20D,20DSA);NZE140,ZRE14#,ZZE141..(16E,16G,16V,18E,20G,20V,D,GLI,LIMO,N,XLI)..(IDN,MA,PHL,PKN,TH,VN)..HTWC201108-201211

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-02090iZRE143,ZZE142..VN200801-201211

main77277-02100iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

77281ACLAMP, FUEL FILLER PIPE

main77281-12110iNDE140,ZZE142..IND200712-201211

77289BCLAMP, FUEL TUBE, NO.3

main77289-02060iZRE142..HTWCF201211-201311

main77289-52100iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201211

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77291-02130iZRE143,ZZE142..VN200712-201211

77295CGROMMET, FUEL TUBE

main77295-12070iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201211

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-12070iZRE141,142..ATM..(16J,18G)..TH200712-201211

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main64606-02040iZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;NDE140,ZRE141,143,ZZE141..RHD..(16E,16G,20G,20V,E,G,LIMO)200801-201312

main64606-12050iZRE143,ZZE142..VN200712-201010

main64606-12060iZZE142..PKN200808-201104

77310ACAP ASSY, FUEL TANK

main77300-20020iCE140200907-201105

main77300-52030iZZE142..IND200712-201211

77316GASKET, FUEL TANK CAP

main77316-52040iZRE141,142..ATM..(16J,18G)..TH201007-201211

77350LID ASSY, FUEL FILLER OPENING

main77350-02080iZZE14#..(16J,18G,18V)..TAIW200712-201211

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-30060iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,200712-201211

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201211

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-06020iCE140,NZE140200801-201211

main77377-06030iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201310

main77377-0D040iNDE140,ZRE142..IND201006-201312

77391RING, FUEL INLET BOX

main77391-12060iZZE142..PKN200712-201211

77391ARING, FUEL INLET BOX

main77391-02020iCE140,NZE140200712-201112

main77391-02020iZRE141,142..ATM..(16J,18G)..TH201112-201211

(L)

main77391-12020iZRE141,142..ATM..(16J,18G)..TH201112-201211

(J)

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-02090iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-201211

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-02090iZRE143,ZZE142..VN200712-201211

77641APROTECTOR, FUEL TANK, NO.1

main77641-02150iCE140,NZE140,ZRE141..PKN200808-201104

main77641-12160iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201211

77652CUSHION, FUEL TANK, NO.1

main77651-02060iZRE142..IDN,IND,MA,VN;CE140,NDE140,ZRE141..16E,16G,16V,20D,20DSA,D,E,G,N;ZRE14#..(6F,CVFC)..(16J,18E,20G,20V)..(IDN,MA,PHL,TH,VN)..HTWC200801-201211

(L)

main77651-02060iZRE143..IDN,PHL,TH200812-201105

main77651-02060iZZE141..LIMO200912-201008

GASOLINE SPEC,(L)

main77651-02060iZZE141..LIMO200912-201008

FFV SPEC

main77651-20090iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200801-201211

(J)

main77651-20090iZRE14#..GCC,TAIW200712-201310

77681SEAT, FUEL TANK BAND, RH

main77616-02050iZRE141,142..ATM..(16J,18G)..TH200712-201211

(L)

main77616-68010iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201211

(J)

77682SEAT, FUEL TANK BAND, LH

main77681-02060iZZE14#..(16J,18G,18V)..TAIW200712-201211

(L)

main77681-12070iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201211

(J)

77745FILTER, CHARCOAL CANISTER, NO.1

main77745-42030iZRE142,143..TAIW201307-201310

main77745-52030iNZE140,ZRE141,142..IND,PKN201008-201303

77779TUBE, CHARCOAL CANISTER OUTLET

main77779-02030iZZE14#..(16J,18G,18V)..TAIW200712-201105

main77779-12020iZRE141,142..ATM..(16J,18G)..TH200902-201211

77785HARNESS, FUEL PUMP

main77785-02060iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201304

main77785-02061iNZE140,ZRE14#,ZZE141..HTWC201305

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508158

main90105-08158

9011910922

main90119-10922

9015950219

main90159-50219

9015950343

main90159-50343

9015960602

main90159-60602

9026903067

main90269-03067

9026906017

main90269-06017

9030108020

main90301-08020

90301T0035

main90301-T0035

9046022002

main90460-22002

9046046005

main90460-46005

9046612001

main90466-12001

9046712056

main90467-12056

9046906005

main90469-06005

90469T0003

main90469-T0003

91626B0614

main91626-B0614

9163160622

main91631-60622

9613251300

main96132-51300

68 parts on this diagram · 6 diagrams in section
