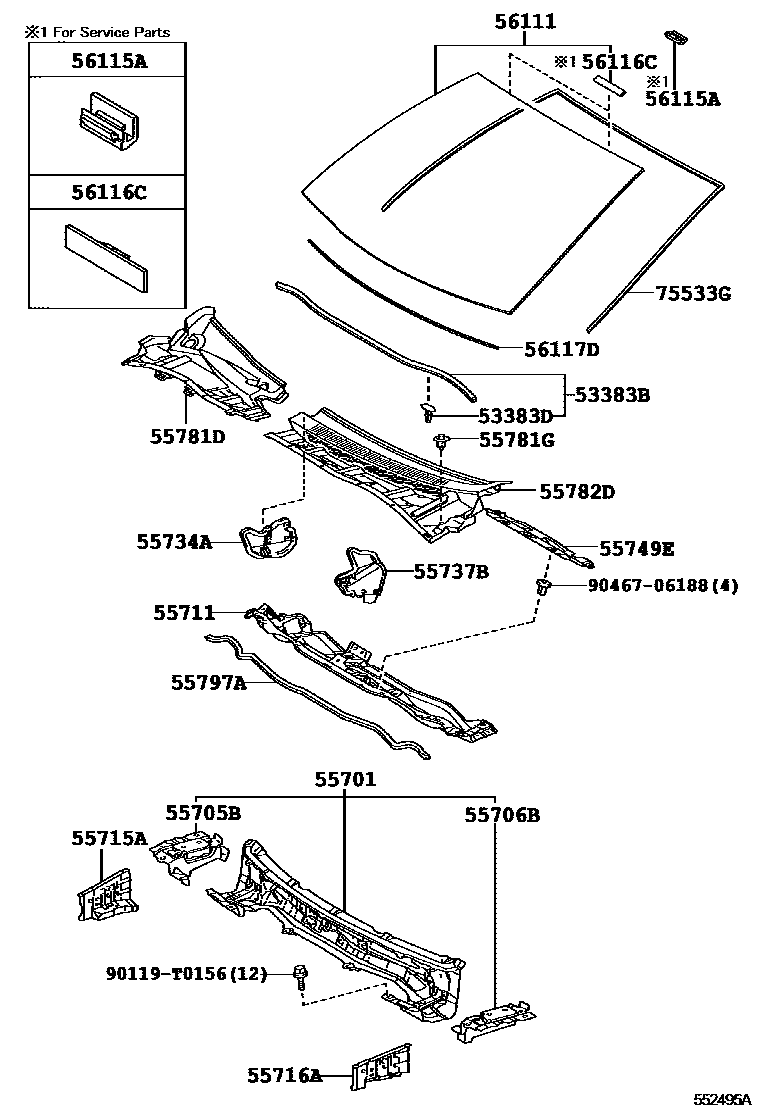

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1 0003 1 0004 1

53383BSEAL, HOOD TO COWL TOP

main53383-02150iZZE141..16E..(MA,PHL);ZRE143,ZZE14#..(16G,16J,16V,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,PHL,TH)200712-201008

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-0D070×7iNDE140,ZZE142..IND201001-201105

main67867-12150×7iZZE142..18V..IND;CE140,NZE140,ZRE143;ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);ZZE14#..(16G,16J,16V,18E,18G,18J,ALT,G,GLI,LIMO,XLI)..(GCC,IDN,IND,MA,PHL,PKN,TH,VN)200712-200912

55701PANEL SUB-ASSY, COWL

main55700-02430iZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)200801-201008

main55700-02440iZZE14#..(16J,18G,18V)..TAIW200712-200811

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-02090iZRE141,142..ATM..(16J,18G)..TH201007-201211

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-02090iZZE14#..(16J,18G,18V)..TAIW200712-200811

55711PANEL, COWL TOP, OUTER

main55701-02270iZZE14#..(16E,18V)..(IDN,TH)200801-200812

main55701-02271iCE140,NZE140200909-201104

main55701-02280iZZE142..PHL200712-200812

55715ABRACE, COWL TOP TO APRON, RH

main55715-02040iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

55716ABRACE, COWL TOP TO APRON, LH

main55716-02040iZZE141..16E..TH;ZZE142..18V..(IDN,PHL)200712-200812

55734APLATE, WATER GUARD, RH

main55734-02120iZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)200801-201008

main55734-02130iZRE143,ZZE142..VN200712-201010

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-02070iCE140,NZE140200801-201104

main55737-02080iZZE142..PHL200712-200812

55749EPLATE, COWL TOP INSULATOR, NO.2

main55749-02060iZRE142..HTWCF;ZRE142..IDN,IND,MA,VN;ZRE141,143..(6F,CVFC)..(16J,20G,20V)..(IDN,MA,PHL,TH,VN);CE140,ZRE141,142,ZZE141..(16E,16G,16V,18E,20D,20DSA,D,LIMO,N)..(MA,PHL,PKN,TH)..(DSL,HTWC)201008

main55749-02080iZRE143,ZZE14#..(18E,18J,20E,20G,20V,GLI,XLI)..(GCC,TAIW)200712-201007

main55749-02090iNDE140201006-201105

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-02450iZRE142..HTWCF;ZRE142..IDN,IND,MA;ZRE141,142..(6F,CVFC)..(16J,18E)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143,ZZE141..RHD..(16E,16G,20D,20DSA,20G,20V,D,E,G,GLI,LIMO,N,XLI)201008

main55708-02460iZZE142..PHL200712-200812

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2iZRE143,ZZE142..VN200712-201010

BLACK

55782DLOUVER, COWL TOP VENTILATOR, LH

main55709-02330iZZE141..MA;ZRE143,ZZE14#..(16G,16J,18E,18G,18J,20G,20V,LIMO)..(IDN,MA,TH)200801-201008

main55709-02340iZZE14#..(16J,18G,18V)..TAIW200712-200811

55797ASEAL, COWL WATER EXTRACT

main55797-02070iZRE143,ZZE142..VN200712-201010

56111GLASS, WINDSHIELD

main56101-02530iZZE142..(18G,18V,G)..IND200808-200908

*LAM,T=4.7,GREEN

main56101-02531iNDE140,ZZE142..(18G,18V,G)..IND200909-201105

*LAM,T=4.7,GREEN

main56101-02660iZZE142..18J..IND200808-200908

*LAM,T=4.7,GREEN

main56101-02661supersedes 56101-02801iNDE140..E; ZRE142..18J..IND201105-201312

*LAM,T=4.7,GREEN; *LAM,T=4.7,GREEN,GRADE MARK : J

main56101-02890iZRE141,142..GCC201007-201310

*LAM,T=4.7,GREEN

main56101-02912iZZE141..TH;ZZE142..(18G,18J)..IDN200801-200805

*LAM,T=4.7,GREEN

main56101-02913iZZE142..MA;ZZE14#..RHD..4FC..(16E,18E)200801-200805

*LAM,T=4.7,GREEN

main56101-02914iZZE141..PHL200802-200805

*LAM,T=4.7,GREEN

main56101-02915iZZE141..TAIW200712-200811

*LAM,T=4.7,GREEN

main56101-02916iZRE142,143..TAIW201007-201310

*LAM,T=4.7,GREEN

main56101-02917iZZE142..PHL200802-200805

*LAM,T=4.7,GREEN

main56101-02918iZZE142..18V..TAIW200712-200811

*LAM,T=4.7,GREEN

main56101-02925supersedes 56101-02930iZZE142..18E..TH; ZZE142..18G..TH;ZZE142..18V..IDN200801-200805

*LAM,T=4.7,GREEN; *LAM,T=4.7,GREEN,SINGAPORE SPEC

main56101-02929iZRE142..IDN;ZRE141..6F..TH;ZRE142..(18E,18EL)..HTWCF;CE140,NZE140,ZRE141,ZZE141..RHD..(16G,20D,D,GLI,LIMO,XLI)201008

*LAM,T=4.7,GREEN

main56101-02930iZRE142,143..(18G,20G)..TH201008-201211

*LAM,T=4.7,GREEN

main56101-02931iZRE143..RHD..20V; ZZE142..18E..TH200805-201008

*LAM,T=4.7,GREEN; *LAM,T=4.7,GREEN,SINGAPORE SPEC

main56101-02932iZZE141..PHL200805-201008

*LAM,T=4.7,GREEN

main56101-02933iZRE143..PHL201008-201311

*LAM,T=4.7,GREEN

main56101-02947iZRE143..20G..TH201211-201311

*LAM,T=4.7,GREEN

main56101-12422iZZE14#..GCC200901-201007

*LAM,T=4.7,GREEN

main56101-02949supersedes 56101-02948iZRE143..20V..TH201211-201311

*LAM,T=4.7,GREEN,WITH(BACK MONITOR)

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30120×2iZRE142..HTWCF;ZRE141..16E,16G,16V,D,N,XLI;ZRE142..GCC,IDN,IND,MA,TAIW,VN;ZRE142,ZZE141..(16G,18E,LIMO)..TH..HTWC;CE140,NDE140,NZE140,ZRE141,143..(5F,6F,CVFC)..(16J,20D,20DSA,20G,20V,E,G,GLI,XLI)201007

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-02020×2iZRE141,142..ATM..(16J,18G)..TH201007-201211

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-12300iZZE14#..(16J,18G,18V)..TAIW200712-200811

L=1303

75533GMOULDING, WINDSHIELD, OUTSIDE

main75531-02160iNDE140,ZZE142..IND200808-201105

main75531-02180iZRE14#..GCC,TAIW201007-201310

main75531-02190iZRE143..CVFC..(IDN,MA,PHL,TH,VN);CE140,NZE140,ZRE141,142,ZZE141..(IDN,MA,PHL,PKN,TH,VN)..(DSL,HTWC)201008-201407

90119T0156

main90119-T0156

9046706188

main90467-06188

22 parts on this diagram · 4 diagrams in section
