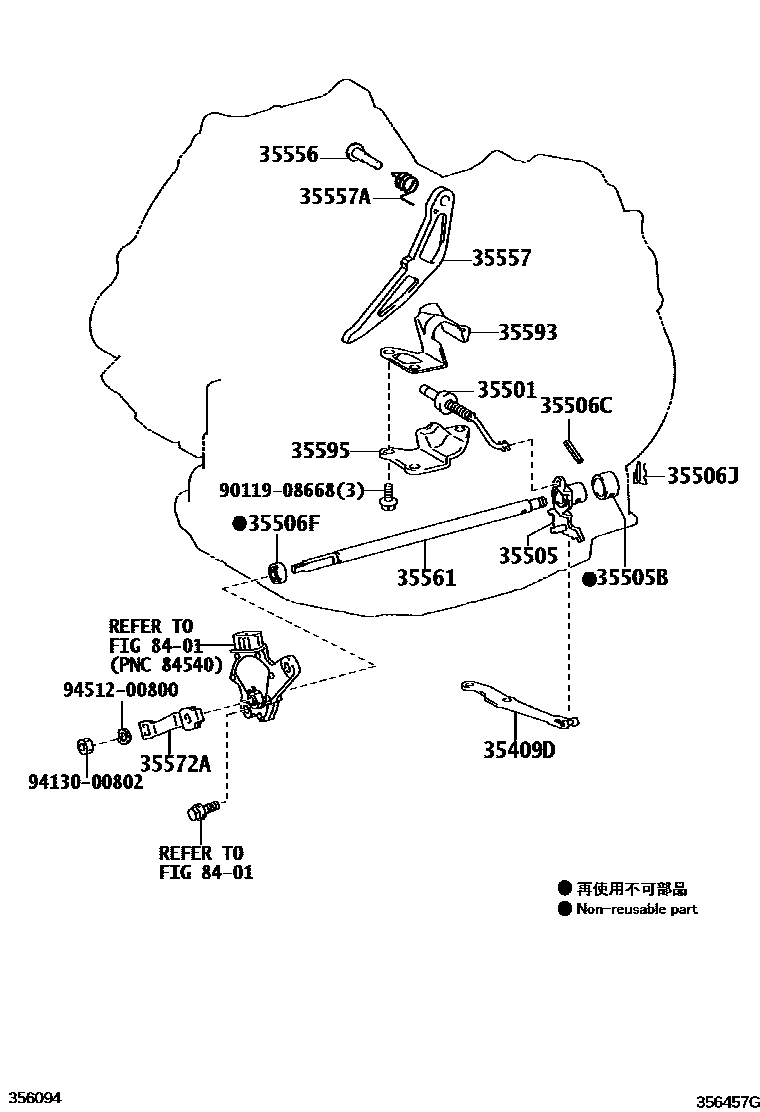

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U340E,U341E 0002 1U241E

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-52020iZZE14#..(16J,18G,18V)..TAIW200712-200811

35501ROD SUB-ASSY, PARKING LOCK

main35501-21010iZRE143..4FC200811-201010

main35501-52020iZRE141,142..4FC;ZZE141..16G..TH201007-201101

main35501-52021iZRE141..4FC..16J201101-201211

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-20030iZZE14#..(16J,18G,18V)..TAIW200712-200811

main35505-21010iZRE143..TAIW200811-201007

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iZRE143,ZZE142..4FC..VN200712-201010

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iZZE14#..(16J,18G,18V)..TAIW200712-200811

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iZZE14#..(16J,18G,18V)..TAIW200712-200811

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09001iZZE14#..(16J,18G,18V)..TAIW200712-200811

35556SHAFT, PARKING LOCK PAWL

main35556-32020iZZE14#..LHD..(18E,18J,GLI,XLI)200712-201007

main35556-32030iZRE143..VN200811-201010

35557PAWL, PARKING LOCK

main35557-52020iZZE14#..4FC200712-201106

main35557-52021iZRE141..4FC..16J201106-201211

main35590-32010iZRE143..4FC200811-201010

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90506-18077iZRE143..TAIW200811-201007

main90949-03089iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200712-201008

35561SHAFT, MANUAL VALVE LEVER

main35561-21010iZRE143..TAIW200811-201007

main35561-52020iZZE14#..(16J,18G,18V)..TAIW200712-200811

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-28120iZRE143..4FC200811-201010

main35572-52030iZZE14#..4FC200712

35593SLEEVE, CAM GUIDE

main35593-52010iZZE142..4FC..(IND,PKN)200712

35595BRACKET, PARKING LOCK PAWL

main35595-21010iZRE143..TAIW200811-201007

main35595-52020iZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200712-201008

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908668

main90119-08668

9413000802

main94130-00802

9451200800

main94512-00800

18 parts on this diagram · 2 diagrams in section
