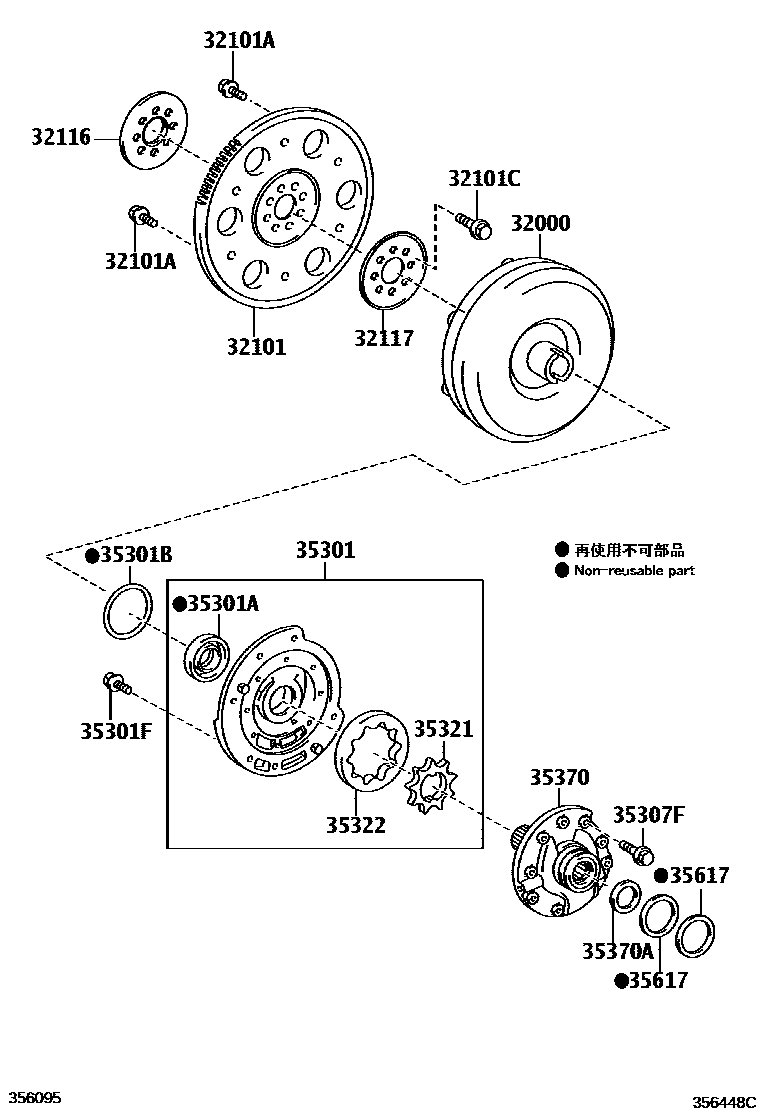

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*8-1.25PX12-8.4,BLACK
*8-1.25PX12-8.4,BLACK
*9-1.25PX12.4-7.3,BLACK
*8-1.25PX12-8,CLEAR,(J)
*8-1.25PX12-8,CLEAR
*9-1.25PX12.4-8.4,SILVER
*8-1.25PX12-8,CLEAR,(L)
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13,(J)
*10-1.25PX18-13,(L)
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35301BODY SUB-ASSY, FRONT OIL PUMP
35301ASEAL, OIL (FOR FRONT OIL PUMP)
35301BRING, O (FOR FRONT OIL PUMP BODY)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX28-28
*8-1.25PX22-20
35307FBOLT (FOR STATOR SHAFT)
35321GEAR, FRONT OIL PUMP DRIVE
T=10.690-10.699,TOYOTA:REFER TO ILL.
T=10.700-10.709,TOYOTA:REFER TO ILL.
T=10.710-10.720,TOYOTA:REFER TO ILL.
T=10.721-10.730,TOYOTA:REFER TO ILL.
T=10.731-10.740,TOYOTA:REFER TO ILL.
T=10.715,MARK 1,AISIN AW:REF.ILLUST
T=10.715,MARK 2,AISIN AW:REF.ILLUST
T=10.715,MARK 3,AISIN AW:REF.ILLUST
T=10.715,MARK 4,AISIN AW:REF.ILLUST
T=10.715,MARK 5,AISIN AW:REF.ILLUST
T=9.44-9.449,MARK 1
T=9.45-9.459,MARK 2
T=9.46-9.47,MARK 3
T=9.471-9.48,MARK 4
T=9.481-9.49,MARK 5
35322GEAR, FRONT OIL PUMP DRIVEN
T=10.690-10.699,TOYOTA:REFER TO ILL.
T=10.700-10.709,TOYOTA:REFER TO ILL.
T=10.710-10.720,TOYOTA:REFER TO ILL.
T=10.721-10.730,TOYOTA:REFER TO ILL.
T=10.731-10.740,TOYOTA:REFER TO ILL.
T=10.715,MARK 1,AISIN AW:REF.ILLUST
T=10.715,MARK 2,AISIN AW:REF.ILLUST
T=10.715,MARK 3,AISIN AW:REF.ILLUST
T=10.715,MARK 4,AISIN AW:REF.ILLUST
T=10.715,MARK 5,AISIN AW:REF.ILLUST
T=9.44-9.449,MARK 1
T=9.45-9.459,MARK 2
T=9.46-9.47,MARK 3
T=9.471-9.48,MARK 4
T=9.481-9.49,MARK 5
35370SHAFT ASSY, STATOR
TOYOTA:REFER TO ILL.
AISIN AW:REF.ILLUST
35370ABEARING, THRUST NEEDLE ROLLER(FOR STATOR SHAFT)
35617RING, CLUTCH DRUM OIL SEAL
