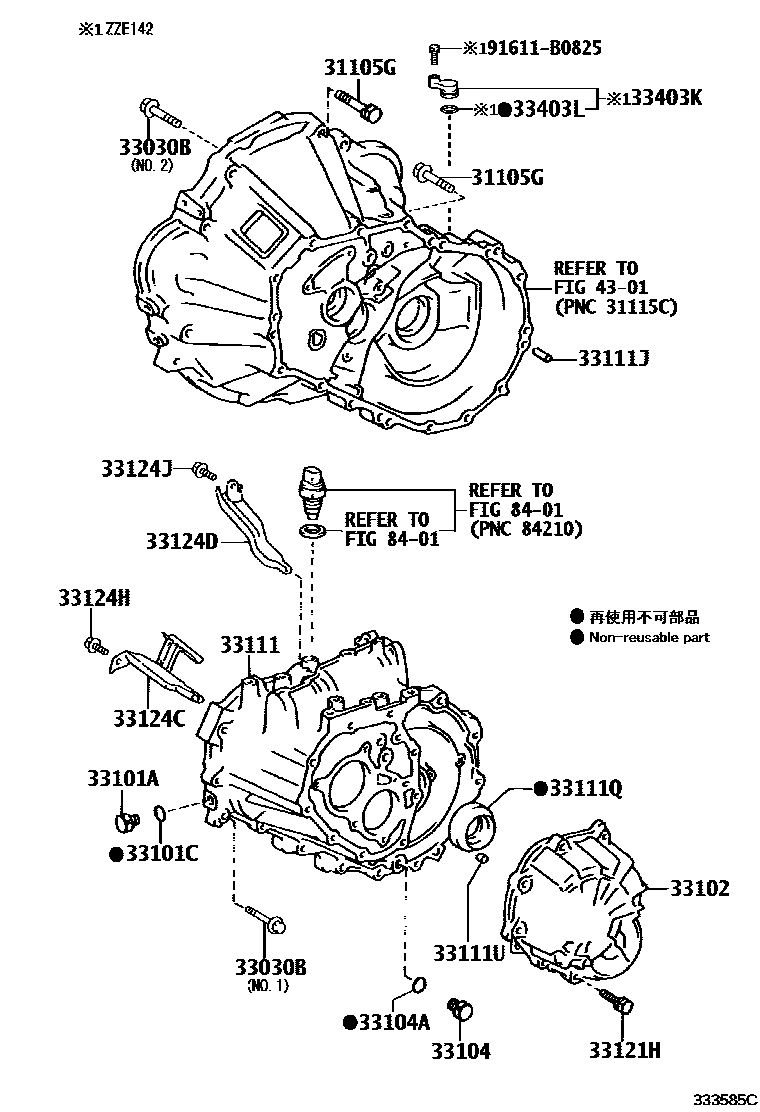

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1C50 0002 1E351 0003 1EC60,EC65

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-10077iCE140200808-201104

*10-1.25PX43-26

main90119-12168×2iZZE142..5F..VN200810-201010

*12-1.25PX55-30

main90119-T0214×2iZZE141..LIMO201008-201311

*12-1.25PX55-30

main91552-81080iNDE140201006-201105

*10-1.25PX80-26

main91612-61045×7iNDE140,NZE140200808-201105

*10-1.25PX45-30

main91641-H0820iCE140200808-201104

*8-1.25PX20-20

main91642-81055×2iZZE14#..5F200801-201105

*10-1.25PX55-30

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08086×14iCE140200911-201104

*8-1.25PX45-27.5,NO.1

main90105-08126×3iCE140201104

*8-1.25PX45-27.5,NO.2

main90105-08353×13iZZE141..16E..TH200801-200812

*8-1.25PX50-30,NO.1

main90105-08430×3iZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)200801-201008

*8-1.25PX45-27.5,NO.2

main91551-10840×16iNDE140201006-201105

*8-1.25PX40-22,*201,*206

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-14032iNDE140201006-201105

*201,NO.1,*206,NO.1

main90341-18033iCE140,NZE140,ZZE141..5F; NDE140,ZRE141,142..6F201008

NO.2

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main12157-10010iNDE140,ZRE141,142..6F201211

NO.2

main90430-14003iNDE140,ZRE141,142..6F201008

NO.1

main90430-18008iZZE142..5F..(IND,PKN)200801

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12021iZZE142..5F..VN200801-201010

main33102-33012iCE140200808-201104

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iCE140201104

main90341-18033iZZE142..5F..VN200801-201010

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCE140,NZE140,ZZE141..5F201008

33111CASE, MANUAL TRANSMISSION

main33101-42040iCE140201104

main33111-12260iNZE140,ZZE141..5F201008

main33111-12291iNDE140,ZRE141,142..6F201008

main33111-20221iNDE140201006-201105

*201

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054×4iNDE140,ZRE141,142..6F; NZE140,ZZE141..5F201008

L=23,OD=8

33111QSEAL, OIL(FOR TRANSMISSION CASE)

main90311-34034iZZE141..LIMO201008-201012

main90311-34042iNZE140,ZZE141..5F201012

main90311-35058iZZE142..5F200801-201012

main90311-35061iNDE140201006-201012

*201,*206

main90311-35064iZZE142..5F201012

main90311-35066iNDE140,ZRE141,142..6F201012

main90311-50035iCE140200808-201010

main90311-50047iCE140201010-201104

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-11001×2iZZE141..16E..TH200801-200812

L=11,OD=11

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08273×10iCE140200808-201104

main90119-08429×9iZZE142..5F..(IND,PKN)200801

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-20050iZZE142..5F..(IND,PKN)200801

main33124-20080iNDE140201006-201105

*201,*206

main33124-28050iCE140201104

33124DPIPE, OIL RECEIVER, NO.2(MTM)

main33124-12021iZZE141..16E..TH200801-200812

main33124-28060iCE140200808-201104

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08830×2iCE140200808-201104

main91611-G0820iNZE140,ZZE141..5F201008

33124JBOLT, W/WASHER

main91611-G0820iZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)200801-201008

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iZZE142..18J..IDN200801-201008

33403LRING, O

main96711-24030iZZE142..18J..IDN200801-201008
