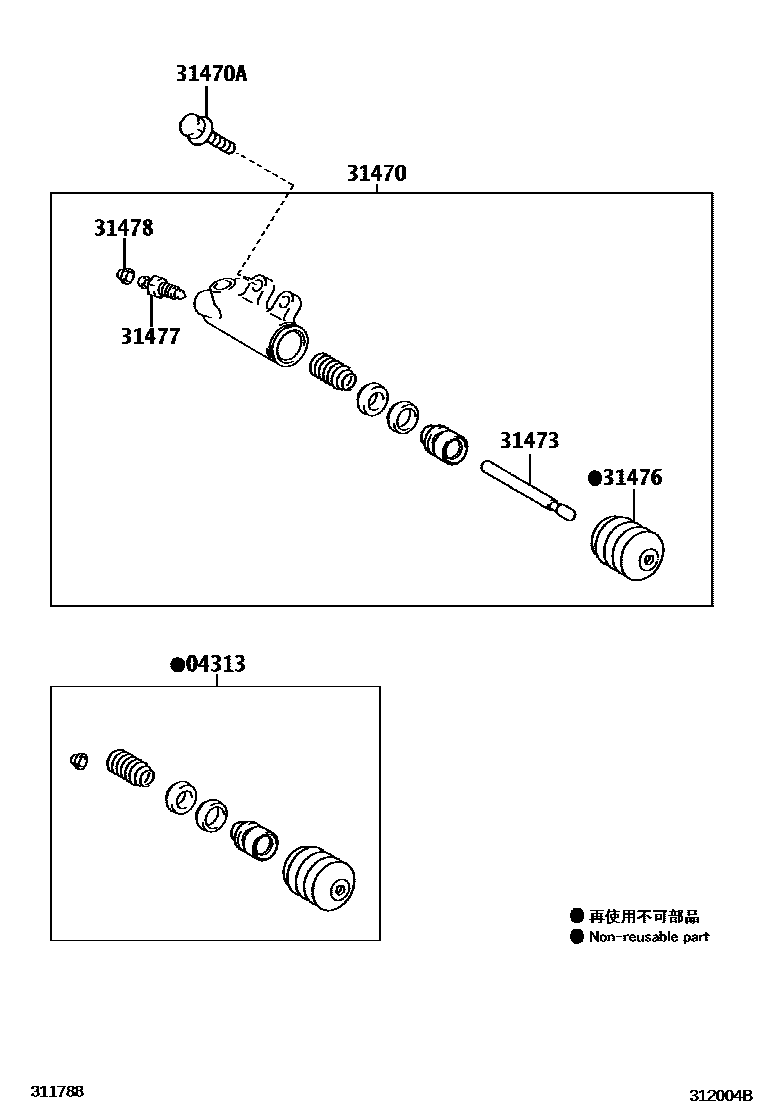

CLUTCH RELEASE CYLINDER

0001 1 0002 1 0003 1

04313CYLINDER KIT, CLUTCH RELEASE

main04313-17040iZZE142..5F..(IND,PKN)200801

main04313-35060iNZE140201104

main04313-52020iCE140200808-201104

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-12140iZZE141..16E..TH200801-200812

main31470-12200iNZE140200808-201104

main31470-32023iCE140200808-201104

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60822×2iCE140,NZE140,ZZE141..5F201008

*8-1.25PX22-17.1

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-20031iCE140,ZZE141..5F201008

main31473-35050iNZE140201104

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iZZE141..16E..TH200801-200812

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-20010iZZE141..16E..TH200801-200812

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iZZE141..16E..TH200801-200812

7 parts on this diagram · 3 diagrams in section
