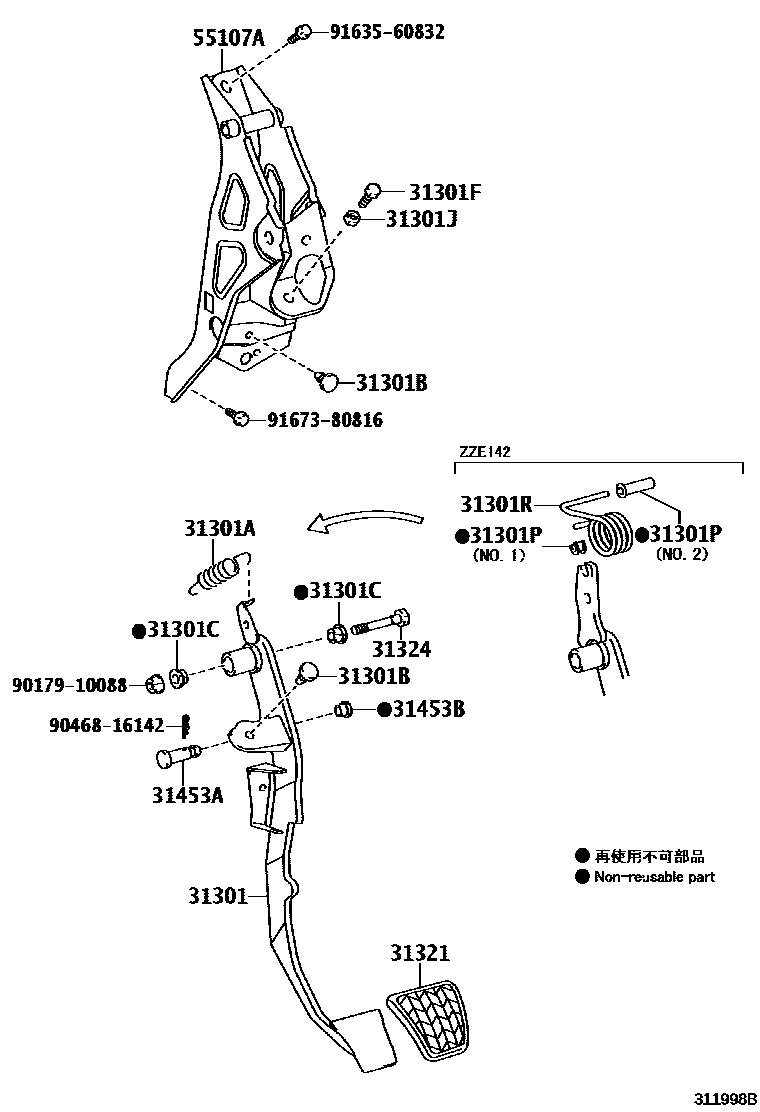

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0004 1 0005 1 0007 1 0008 1 0010 1 0011 1 0012 1 0013 1 0014 1 0015 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-02270iCE140,NZE140201104-201204

main31301-02271iCE140,NZE140201205

main31301-02280iZZE141..LIMO201008-201206

main31301-02290iZZE142..5F..IND200801

main31301-02320iZZE141..5F..PHL200802-201008

main31301-02330iZZE142..5F..VN200808-201010

main31301-02360iZRE141..6F..PHL201008-201311

main31301-02380iNDE140201006-201105

main31301-02390iZRE142..6F..VN201010

main31301-02400iZRE141..6F..TH201008-201206

main31301-02410iZRE142..RHD..6F201008-201206

main31301-02460iZRE141..6F..PKN201104-201204

main31301-02461iZRE141..6F..PKN201205

main31301-02550iZRE141..6F..TH201207-201311

main31301-02560iZZE141..LIMO201207-201311

main31301-02570iZRE142..RHD..6F201207-201312

main31301-02580iNDE140201207-201312

main31301-12540iZZE142..5F..PKN200808

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14047iCE140,NZE140,ZRE141,ZZE141..MTM201008

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036×2iZZE141..16E..TH200801-200812

main90541-T0004iNDE140,ZRE141,142,ZZE141..MTM..(IDN,IND,TH)201207

NO.2

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015×2iCE140,NDE140,NZE140,ZRE141,142,ZZE141..MTM201008

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10055iZRE141,142..LHD..6F201008

main90101-10369iZZE141..16E..PHL;ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)200801-201008

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main46441-12020iZRE141,142..LHD..6F201008-201407

main94120-41000iCE140,NDE140,NZE140,ZRE141,142,ZZE141..RHD..MTM201008

31301PBUSH(FOR CLUTCH PEDAL TURNOVER)

main90386-05017iZZE142..5F..VN200801-201010

NO.1

main90389-05019iNDE140,ZRE142..6F201008

NO.2

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03138iZZE142..5F..VN200801-201010

31321PAD, CLUTCH PEDAL

main31321-02020iZZE141..16E..TH200801-200812

main31321-02030iCE140,NZE140200808-201104

main31321-02090iNDE140,ZRE141,142,ZZE141..MTM..(IDN,IND,TH)201207-201312

main31321-42010iZZE142..5F..PKN200808

31324SHAFT, CLUTCH PEDAL

main90109-10167iCE140,NZE140200801-201104

main90109-10174iZZE142..5F..PKN200808

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08256iCE140,NZE140200801-201104

L=36.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iZZE141..16E..TH200801-200812

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-02220iCE140,NZE140201104-201204

main55107-02221iCE140,NZE140201205

main55107-02230iZZE141..16E..TH200801-200812

main55107-02240iZZE142..18J..IDN200801-201008

main55107-02250iZRE141..6F..PHL201008-201311

main55107-02270iZZE141..5F..PHL200802-201008

main55107-02280iZZE142..5F..VN200808-201010

main55107-02310iZRE142..6F..VN201010

main55107-02320iNDE140201006-201105

main55107-02330iZRE141..6F..TH201008-201206

main55107-02390iZRE141..6F..PKN201104-201204

main55107-02391iZRE141..6F..PKN201205

main55107-02440iZRE141..6F..TH201207-201311

main55107-02450iZZE141..LIMO201207-201311

main55107-02460iNDE140,ZRE142..RHD..6F201207-201312

main55107-12320iZZE142..5F..PKN200808

9017910088

main90179-10088

9046816142

main90468-16142

9163560832

main91635-60832

9167380816

main91673-80816
