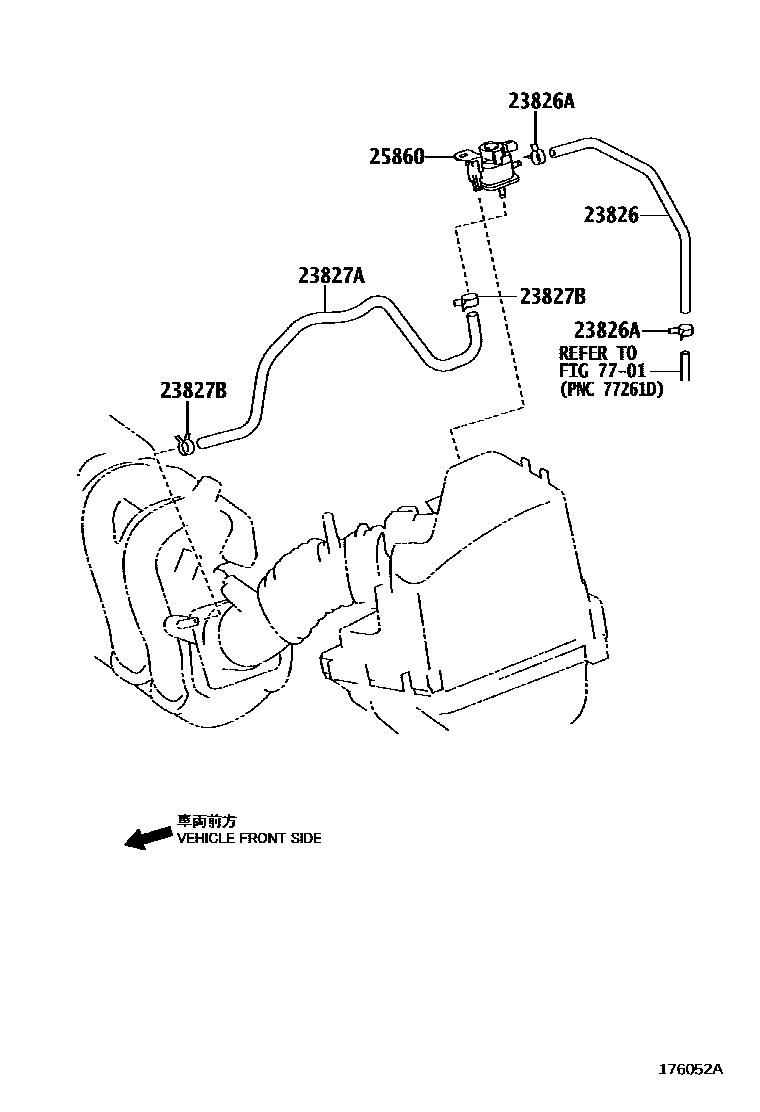

VACUUM PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-0D110i2NZFE..NZE140201104

main23826-0D120i1ZZFE,3ZZFE..ZZE14#..GCC,TAIW200712-201007

main23826-0D160i3ZRFE..ZRE143..CVFC;1ZRFE,2ZRFE..ZRE141,142201007-201407

NO.2

main23826-0T120i1ZRFE,2ZRFE..ZRE141,142..(4FC,6F)..(GCC,MA,PHL,TH)201007-201311

(L),NO.1

main23826-0T130i2ZRFE,3ZRFE..ZRE142,143..(6F,CVFC)..(IDN,MA,PHL,TAIW,TH,VN)201007-201407

(L)

main23826-37020i3ZRFE..ZRE143200811-200910

NO.1

main23826-37021i1ZRFE..ZRE141..PKN201104-201406

main23826-37190i2ZRFE..ZRE142..IND201105-201312

(J),NO.1

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90466-11003×2i1ZZFE,3ZZFE..ZZE14#..IDN,IND,MA,PHL,PKN,TH,VN200712-201105

main96132-51100×2i3ZRFE..ZRE143..CVFC;1ZRFE,2ZRFE..ZRE141,142201007-201407

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-0M060i2NZFE..NZE140200808-201104

main23827-37020i3ZRFE..ZRE143..VN200811-201010

main23827-37060i2ZRFE..ZRE142..18G..TH201007-201211

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main96132-51300×2i2NZFE..NZE140201104

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-0D100i2NZFE..NZE140201104

main25860-0D160i3ZZFE..ZZE141201008-201311

main25860-21120i1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)200712-201007

main25860-30070i1NDTV..NDE140201105-201312

main90910-12281i2ZRFE..ZRE142..18G..TH201007-201211

7701FUEL TANK & TUBE

→ Go to FIG 77-01

6 parts on this diagram · 6 diagrams in section
