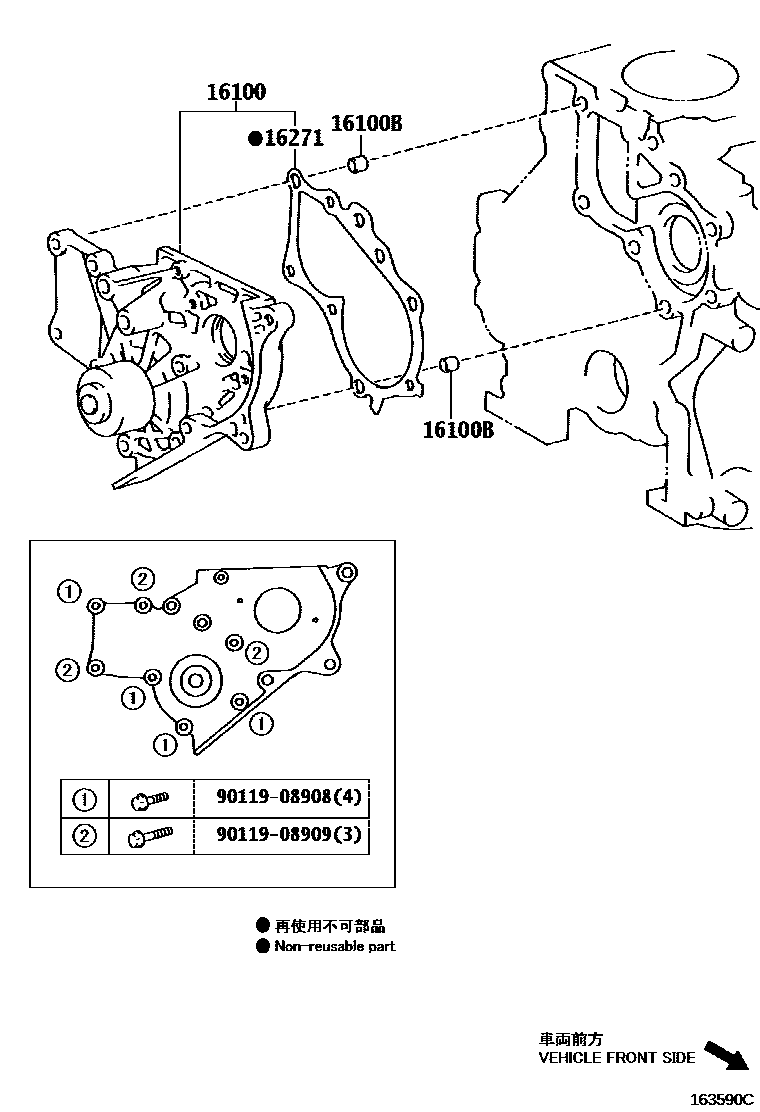

WATER PUMP

0001 1 0002 1 0003 1 0004 1 0005 1

16100PUMP ASSY, ENGINE WATER

main16100-09150i1ZZFE,3ZZFE..ZZE14#200712-200804

(L)

main16100-09151i3ZZFE..ZZE141..16E..TH;1ZZFE..ZZE142..18V..(IDN,PHL)200804-200812

(L)

main16100-09570i1ZZFE..ZZE142..VN201007-201010

main16100-29156i2NZFE..NZE140201104-201111

main16100-29157i2NZFE..NZE140201111

main16100-29415i1ZZFE,3ZZFE..ZZE14#..(16E,18E,18J)..(MA,PHL,TAIW);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,GLI,LIMO,XLI)..(GCC,IDN,MA,PHL,TH,VN)200712-201007

(J)

main16100-39465i3ZRFE..ZRE143200811-200906

main16100-39466i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201007-201211

main16100-39525i1NDTV..NDE140201105-201312

main16100-69435i2C..CE140200808-201104

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021×2i2C..CE140200808-201104

16271GASKET, WATER PUMP

main16271-21020i2NZFE..NZE140200808-201104

main16271-21021i2NZFE..NZE140201111

main16271-33030i1NDTV..NDE140201105-201312

main16271-37010i3ZRFE..ZRE143..IDN,PHL,TH200811-201008

main16271-64031i2C..CE140201104

9011908908

main90119-08908

9011908909

main90119-08909

5 parts on this diagram · 5 diagrams in section
