MOUNTING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1

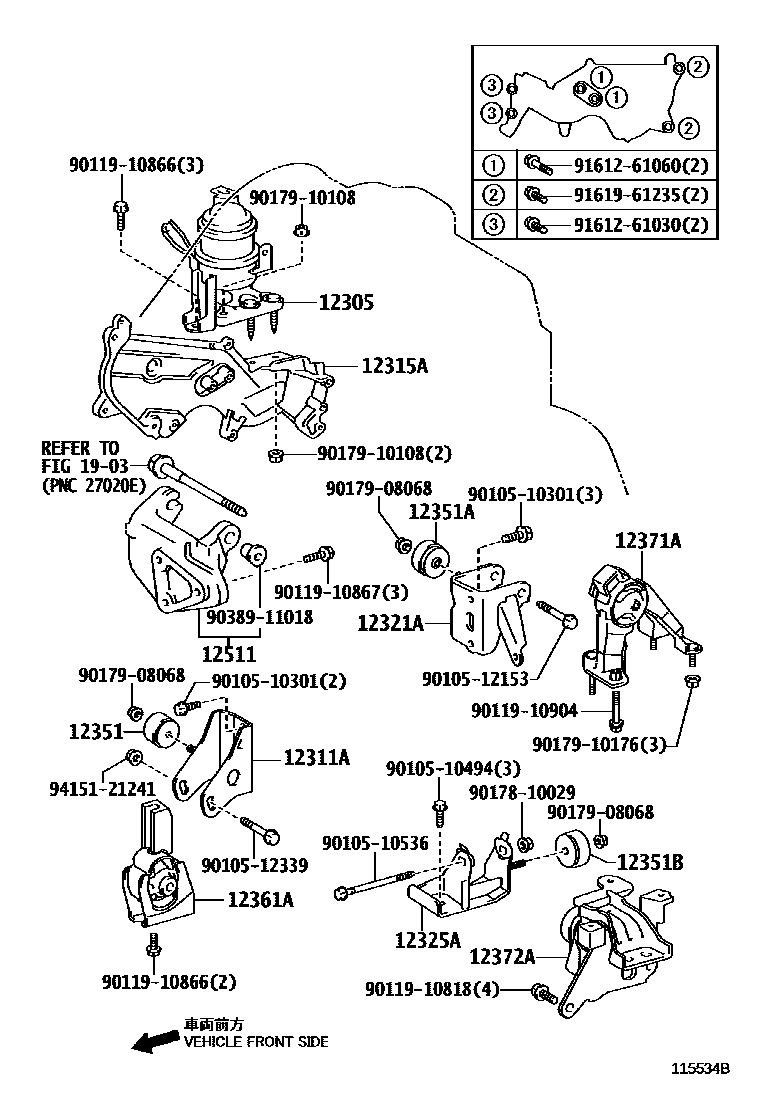

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0D130i1ZZFE..ZZE142..PKN200801

main12305-0D140i1ZZFE,3ZZFE..ZZE14#..TAIW200712-200805

main12305-0D150i1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)200806-201007

main12305-0T090i3ZRFE..ZRE143..CVFC201007-201206

main12305-0T091i3ZRFE..ZRE143201207

main12305-0T120i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201008-201211

main12305-0T130i1ZRFE,2ZRFE..ZRE141,142..GCC,TAIW201007-201310

main12305-21320i2NZFE..NZE140200808-201104

main12305-21550i2NZFE..NZE140201307

main12305-33160i1NDTV..NDE140201006-201105

main12305-37200i3ZRFE..ZRE143200811-201002

main12305-37201i3ZRFE..ZRE143..IDN,PHL,TH201002-201008

main12305-64200i2C..CE140200808-201104

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-0B030i2C..CE140200808-201104

main12311-0D190i1ZZFE..ZZE142..5F..VN200801-201010

main12311-0D200i1ZZFE..ZZE142..5F..PKN200808

main12311-0D210i1ZZFE..ZZE142..4FC..VN200801-201010

main12311-0D220i1ZZFE..ZZE142..4FC..PKN200808

main12311-0D230i1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)200712-201007

main12311-0M010i2NZFE..NZE140200808-201104

main12311-0T130i3ZRFE..ZRE143..IDN,PHL,TH200811-201008

main12311-0T200i2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;2ZRFE..ZRE142..CVFC..(IDN,IND,MA,VN)201008

main12311-0T210i1ZRFE..ZRE141..6F..PKN201104

main12311-0T230i2ZRFE..ZRE142..TAIW201007-201310

main12311-0T250i1ZRFE..ZRE141..GCC201007-201310

main12311-0T260i1ZRFE..ZRE141..4FC..16J201008-201211

main12311-0T300i1ZRFE..ZRE141..4FC..PKN201104

main12311-0T310i1ZRFE,2ZRFE..ZRE141,142..6F..(IDN,IND,PHL,TH,VN)201008

main12311-0T320i2ZRFE..ZRE142..GCC201007-201310

main12311-33050i1NDTV..NDE140201006-201105

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0D060i3ZZFE..ZZE141..16E..(MA,PHL);1ZZFE,3ZZFE..ZZE14#..(16G,16J,16V,18E,18G,18J,LIMO)..(IDN,MA,PHL,TH)200712-201008

(L)

main12315-0D090i1ZZFE..ZZE142..PKN200808

(L)

main12315-0M020i2NZFE..NZE140201104

main12315-22050i1ZZFE..ZZE142..IND200808-201105

main12315-33050i1NDTV..NDE140201006-201105

main12315-37030i3ZRFE..ZRE143..TAIW200811-201007

main12315-64141i2C..CE140201104

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-0B030i2C..CE140201104

main12321-0D080i1ZZFE,3ZZFE..ZZE14#..TAIW200712-200810

main12321-0D081i1ZZFE,3ZZFE..ZZE14#..GCC,TAIW200811-201007

main12321-0D170i2NZFE..NZE140200808-201104

main12321-0D270i1ZZFE..ZZE142..4FC..IND200801-201105

main12321-0D290i1ZZFE..ZZE142..5F..PKN200808

(L)

main12321-0T160i3ZRFE..ZRE143..VN200811-201010

(L)

main12321-0T240i1ZRFE,2ZRFE..ZRE141,142..6F..(IDN,IND,PHL,TH,VN)201008

main12321-0T250i1ZRFE..ZRE141..6F..PKN201104

main12321-0T260i2ZRFE..ZRE142..18G..TH201008-201211

main12321-0T270i2ZRFE..ZRE142..TAIW201007-201310

main12321-0T280i1ZRFE..ZRE141..4FC..16J201008-201211

main12321-0T290i1ZRFE..ZRE141..GCC201007-201207

main12321-0T291i1ZRFE..ZRE141..GCC201208-201310

main12321-0T340i3ZRFE..ZRE143..CVFC201007-201104

main12321-0T341i3ZRFE..ZRE143201105

main12321-0T370i1ZRFE..ZRE141..4FC..PKN201104

main12321-22260i1ZZFE..ZZE142..5F..VN200801-201010

main12321-22261i3ZZFE..ZZE141..LIMO201306-201311

main12321-33020i1NDTV..NDE140201105-201312

main12321-64360i2C..CE140200808-201104

(J)

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-0T130i3ZRFE..ZRE143..TAIW200811-201007

main12325-0D100i3ZZFE..ZZE141..16E..PHL;1ZZFE,3ZZFE..ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)200801-201008

main12325-0D110i1ZZFE..ZZE142..18V..(IDN,PHL)200801-200812

main12325-0D120i1ZZFE,3ZZFE..ZZE14#..LHD..(18E,18J,GLI,XLI)200712-201007

main12325-0T240i1ZRFE,2ZRFE..ZRE141,142..6F..(IDN,PHL,PKN,TH,VN)201008

main12325-0T250i2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;2ZRFE..ZRE142..CVFC..(IDN,IND,MA,VN)201008

main12325-0T260i2ZRFE..ZRE142..TAIW201007-201310

main12325-0T270i3ZRFE..ZRE143..CVFC201007

main12325-0T280i1ZRFE..ZRE141..4FC..(16E,16G,16V,D,N)201008

main12325-0T290i1ZRFE..ZRE141..GCC201007-201310

main12325-0T340i2ZRFE..ZRE142..6F..IND201105-201312

main12325-21200i2NZFE..NZE140201104

main12325-33070i1NDTV..NDE140201006-201105

main12325-64220i2C..CE140201104

12351DAMPER, ENGINE MOUNTING

main12351-11130i1NDTV..NDE140201105-201312

main12351-22080i1ZRFE..ZRE141..4FC..(16E,16G,16V,D,N,XLI)201007

main12351-26010i1ZRFE,2ZRFE..ZRE141,142..6F201008

main12351-27050i2C..CE140200808-201008

main12351-37120i2C..CE140201009-201104

12351ADAMPER, ENGINE MOUNTING(FOR INSULATOR)

main12351-0D090i2ZRFE..ZRE142..GCC201007-201309

main12351-0T170i3ZRFE..ZRE143..CVFC201007

main12351-11023i1ZRFE..ZRE141..4FC..(16E,16G,16V,D,N,XLI)201007

main12351-11072i2C..CE140200808-201009

main12351-28070i2C..CE140201104

12351BDAMPER, ENGINE MOUNTING

main12351-0D090i1ZZFE,3ZZFE..ZZE14#..GCC,TAIW200811-201007

main12351-22060i2C..CE140201104

main12351-27050i3ZZFE..ZZE141..16G;1ZRFE,2ZRFE..ZRE141,142..(6F,CVFC)..(IDN,MA,PHL,TH)201008-201009

main12351-37120i1ZZFE..ZZE142..4FC..IND201009-201105

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-0D210i3ZZFE..ZZE141..16E..PHL;1ZZFE,3ZZFE..ZZE14#..5F..(16G,16J,18J,LIMO)..(IDN,PHL,TH)200801-201008

main12361-0D220i1ZZFE..ZZE142..4FC..VN200801-201010

main12361-0D230i1ZZFE,3ZZFE..ZZE14#..(16J,18G,18V)..TAIW200712-200811

main12361-0D231i2ZRFE..ZRE142..TAIW201007-201205

main12361-0D232i2ZRFE..ZRE142..TAIW201206-201310

main12361-0T090i3ZRFE..ZRE143200811-200908

main12361-0T091i3ZRFE..ZRE143..VN200909-201010

main12361-0T092i3ZRFE..ZRE143201206

main12361-0T130i1ZRFE..ZRE141..4FC..(16E,16G,16V,D,N)201008

main12361-0T140i1ZRFE,2ZRFE..ZRE141,142..GCC201007-201205

main12361-0T141i1ZRFE,2ZRFE..ZRE141,142..GCC201206-201310

main12361-21080i2NZFE..NZE140201104

main12361-33040i1NDTV..NDE140201006-201105

main12361-64410i2C..CE140201104

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-0D210i1ZZFE..ZZE142..5F..PKN200801

main12371-0D220i1ZZFE,3ZZFE..ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200801-201008

main12371-0D230i1ZZFE,3ZZFE..ZZE14#..TAIW200712-200810

main12371-0D231i1ZZFE,3ZZFE..ZZE14#..GCC,TAIW200811-201007

main12371-0T150i2ZRFE..ZRE142..18G..TH201008-201211

main12371-0T160i1ZRFE..ZRE141..4FC..(16E,16G,16V,D,N)201008

main12371-0T170i2ZRFE..ZRE142..TAIW201007-201310

main12371-0T180i3ZRFE..ZRE143..CVFC201007

main12371-21240i2NZFE..NZE140200808-201104

main12371-33080i1NDTV..NDE140201006-201105

main12371-37110i3ZRFE..ZRE143..IDN,PHL,TH200811-201008

main12371-64350i2C..CE140200808-201104

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0D170i1ZZFE..ZZE142..5F..PKN200801

main12372-0D171i3ZZFE..ZZE141..LIMO201208-201311

main12372-0D180i1ZRFE,2ZRFE..ZRE141,142..GCC201007-201310

main12372-0D190i1ZZFE,3ZZFE..ZZE14#..4FC..(16E,16G,16J,16V,18E,18G)..(IDN,MA,PHL,TH)200801-201008

main12372-0D191i1ZRFE..ZRE141..4FC..16J201208-201211

main12372-0T140i3ZRFE..ZRE143..VN200811-201010

main12372-0T200i1ZRFE,2ZRFE..ZRE141,142..6F201008-201207

main12372-0T201i1ZRFE,2ZRFE..ZRE141,142..6F201208

main12372-0T210i2ZRFE..ZRE142..CVFC..(IDN,IND,MA,TH,VN)201008-201207

main12372-0T211i2ZRFE..ZRE142..HTWCF;2ZRFE..ZRE142..18E..TH..HTWC;2ZRFE..ZRE142..CVFC..(IDN,IND,MA,VN)201208

main12372-0T220i2ZRFE..ZRE142..TAIW201007-201310

main12372-0T230i3ZRFE..ZRE143..CVFC201007

main12372-21230i2NZFE..NZE140200808-201104

main12372-21440i2NZFE..NZE140201403

main12372-33100i1NDTV..NDE140201105-201312

main12372-64330i2C..CE140201104

12511BRACKET, ALTERNATOR, NO.1

main12511-0T050i2ZRFE..ZRE142..HTWCF;1ZRFE..ZRE141..6F..TH;2ZRFE..ZRE142..18G..(IDN,MA,VN);1ZRFE,2ZRFE,3ZRFE..ZRE14#..(16E,16G,16V,18E,18J,20G,20V,G,GLI,XLI)..(GCC,IDN,MA,PHL,TAIW,TH,VN)..HTWC201203

(L)

main12511-37010i1ZRFE,2ZRFE..ZRE141,142..ATM..(16J,18G)..TH201007-201211

(J)

main12511-64060i2C..CE140200808-201104

1903ALTERNATOR

→ Go to FIG 19-03

9010510301

main90105-10301

9010510494

main90105-10494

9010510536

main90105-10536

9010512153

main90105-12153

9010512339

main90105-12339

9011910818

main90119-10818

9011910866

main90119-10866

9011910867

main90119-10867

9011910904

main90119-10904

9017810029

main90178-10029

9017908068

main90179-08068

9017910108

main90179-10108

9017910176

main90179-10176

9038911018

main90389-11018

9161261030

main91612-61030

9161261060

main91612-61060

9161961235

main91619-61235

9415121241

main94151-21241

31 parts on this diagram · 10 diagrams in section
