HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL--AUTO AIR CONDI0002 1CONTROL PANEL--DIAL TYPE 0003 1CONTROL PANEL--LEVER TYPE 0004 1AIR DUCT 0005 1AIR DUCT 0006 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

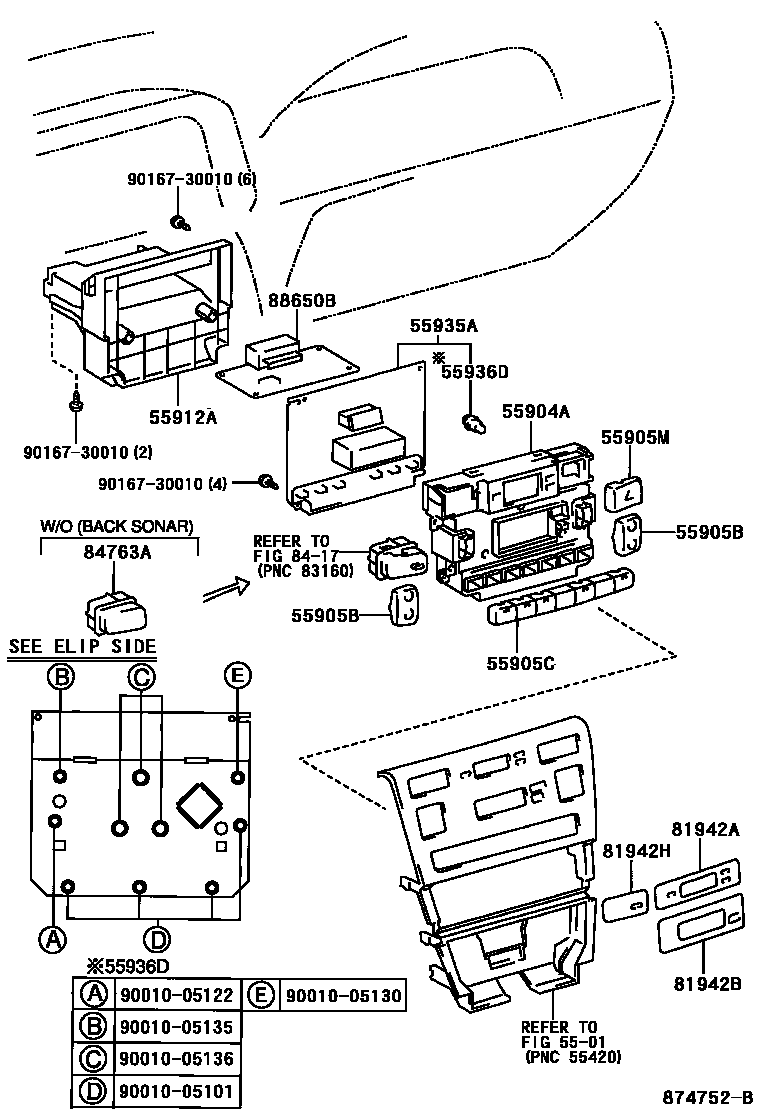

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-02010iZZE121..16E..TAIW200103-200211

main55904-02030iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200606-200801

main55904-12010iZZE122..MA,PHL;ZZE121..ATM..MA;ZZE121..MTM..16E..PHL200311-200605

55905BKNOB, HEATER CONTROL, NO.2

main55905-02130iZZE122..TAIW200310-200712

BLOWER

main55905-02140iZZE122..TAIW200103-200310

TEMP

main55905-02240iZZE122..18G..IDN200312-200605

BLOWER

main55905-02250iZZE122..TH200205-200311

TEMP

main55905-12670iZZE122..MA,PHL;ZZE121..ATM..MA;ZZE121..MTM..16E..PHL200311-200605

BLOWER

main55905-12680iZZE122..MA,PHL200105-200401

TEMP

55905CKNOB, HEATER CONTROL, NO.3

main55905-02150iZZE122..TAIW200310-200712

main55905-02260iZZE12#..ATM..(16E,18E,18G)..TH200311-200605

main55905-12690iZZE12#..MA200606

55905MKNOB SUB-ASSY, CONTROL

main55905-02120iZZE121..16E..TAIW200103-200211

main55905-02230iZZE122..TH200205-200311

main55905-12660iZZE122..(18E,18G)..IND200105-200508

55912AHOUSING, HEATER CONTROL

main55912-02010iZZE121..16E..TAIW200103-200211

main55912-02030iZZE122..18G..IDN200312-200605

main55912-12070iZZE122..PHL;ZZE121..MTM..16E..PHL200606-200802

55935ACIRCUIT, CENTER CLUSTER MODULE

main55935-02010iZZE122..18G..TAIW200103-200310

W(CLEARANCE & BACK SONAR)

main55935-02020iZZE122..18E..TAIW200103-200310

main55935-02050iZZE122..18G..IDN200312-200605

main55935-12040iZZE122..(18E,18G)..IND200301-200508

main55935-12070iZZE122..MA;ZZE121..16E..(MA,PHL)200606-200802

main55935-12160iZZE121..ATM..PHL200605-200802

W(CLEARANCE & BACK SONAR)

55936DBLUB, CENTER CLUSTER MODULE SWITCH

main90010-05101×4iZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)200311

14V1.12W,W/GREEN CAP,TYPE D:REFER TO ILLUSTRATION

main90010-05122iZZE122..(18E,18G)..(IDN,IND,MA,PHL)200111-200508

14V 1.4W,W(CAP),TYPE A:REFER TO ILLUSTRATION

main90010-05130iZZE122..(18E,18G)..IND200508

14V 1.4W,TYPE E:REFER TO ILLUSTRATION

main90010-05135iZZE121..16E..PHL200311-200802

14V 0.91W,TYPE B:REFER TO ILLUSTRATION

main90010-05136×3iZZE122..(18E,18G)..(IDN,IND,MA,PHL)200111-200508

14V 1.12W,W(CAP),TYPE C:REFER TO ILLUSTRATION

81942ASHEET, HEATER CONTROL NAME, NO.1

main81942-02150iZZE122..TAIW200103-200310

WOOD LIKE

main81942-02230iZZE12#..ATM..(16E,18E,18G)..TH; ZZE122..18G..IDN200606-200801

WOOD LIKE

main81942-02250iZZE122..18E..TAIW200411-200712

SILVER

main81942-02270iZZE121..ATM..16E..TH200606-200801

SILVER

main81942-12640iZZE122..18G..IDN200105-200311

main81942-12670iZZE121..16E..(MA,PHL)200401-200605

81942BSHEET, HEATER CONTROL NAME, NO.2

main81942-02160iZZE122..TAIW200310-200712

WOOD LIKE

main81942-02240iZZE122..18G..IDN200312-200605

main81942-02260iZZE122..18E..TAIW200411-200712

SILVER

main81942-02280iZZE121..ATM..16E..TH200311-200605

SILVER

main81942-12650iZZE122..MA200606

main81942-12680iZZE121..16E..(MA,PHL)200401-200605

81942HSHEET, HEATER CONTROL NAME, NO.3

main81942-02170iZZE122..18G..TAIW200103-200310

W(CLEARANCE & BACK SONAR)

main81942-02180iZZE121..16E..TAIW200103-200211

main81942-12780iZZE122..PHL200401-200605

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

84763APLATE, SWITCH

main84763-02040iZZE122..18G..IDN200312-200605

main84763-02050iZZE122..18E..TAIW200205-200310

main84763-12140iZZE122..(18E,18G)..IND200105-200508

88650BAMPLIFIER ASSY, AIRCONDITIONER

main88650-02370iZZE122..TH200311-200605

main88650-02371iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200606-200801

main88650-13040iZZE122..(18E,18G)..IND200508

main88650-1E500iZZE122..TAIW200103-200310

main88650-1E510iZZE122..MA;ZZE121..MTM..16E..PHL;ZZE121..ATM..16E..(MA,PHL)200311-200606

main88650-1E511iZZE122..MA;ZZE121..16E..(MA,PHL)200606-200802

main88650-1E600iZZE122..PHL200401-200606

main88650-1E601iZZE12#..ATM..PHL200606-200802

W(CLEARANCE & BACK SONAR)

9016730010

main90167-30010

15 parts on this diagram · 6 diagrams in section
