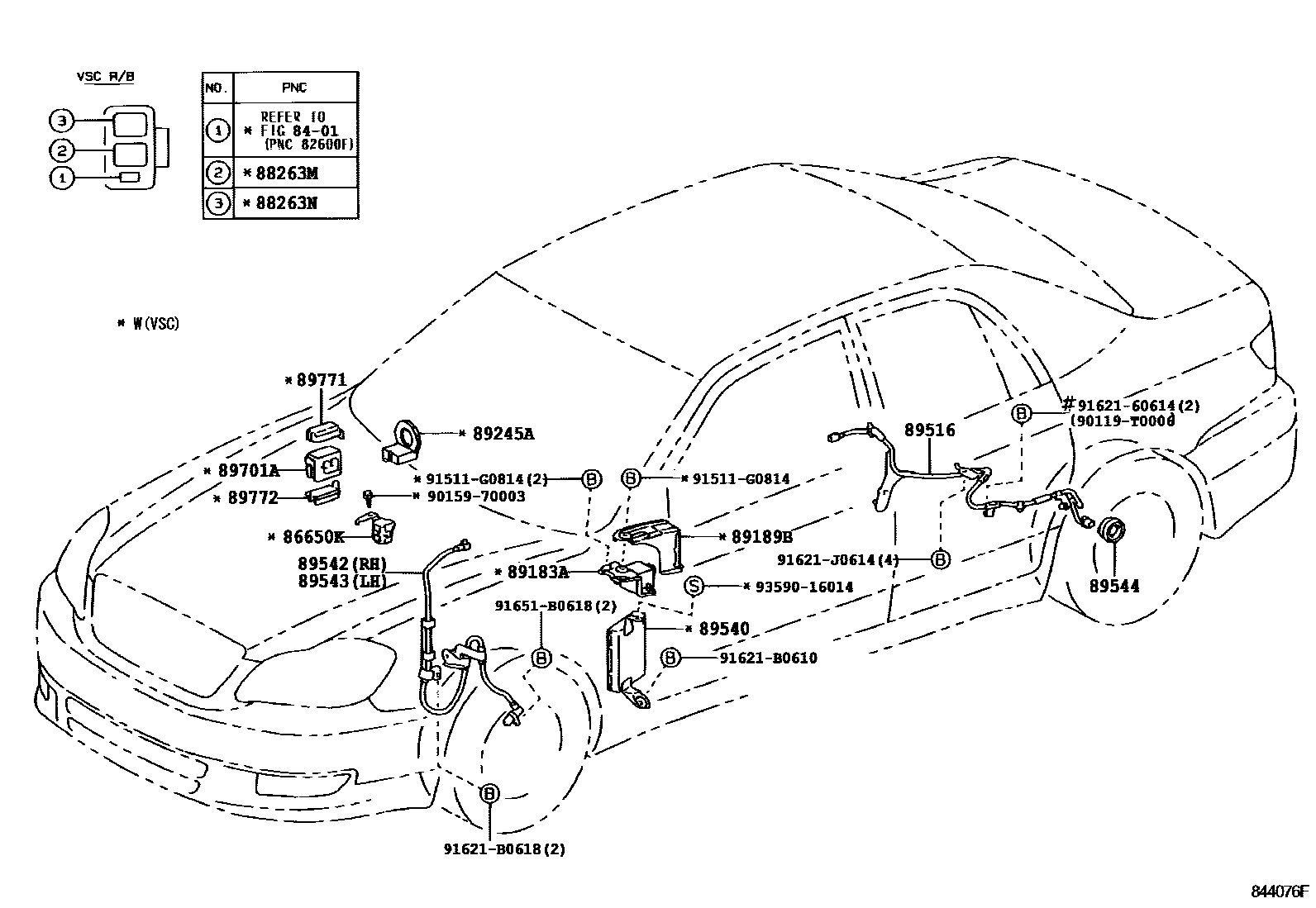

ABS & VSC

0001 1 0003 1

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

86650KBUZZER ASSY, SKID CONTROL

main86650-12070iZZE122..MA200105-200401

main86650-13010iZZE122..18G..TH200603-200801

88263MRELAY, ABS SOLENOID

main88263-32070iZZE122..18G..TAIW200103-200310

88263NRELAY, ABS MOTOR

main88263-32070iZZE122..18G..TH200103-200311

89183ASENSOR, YAWRATE

main89180-12010iZZE122..18G..TH200103-200311

89189BBRACKET, YAWRATE SENSOR

main89189-12020iZZE122..18G..(MA,TH)200311-200801

main89189-12051iZZE122..18G..TAIW200310-200712

89245ASENSOR, STEERING

main89245-12010iZZE122..18G..(MA,TH)200310-200801

89516WIRE, SKID CONTROL SENSOR

main89516-02050iZZE121..ATM..16E..TH;ZZE122..(18E,18G)..(IDN,TH)200311-200801

RH

main89516-02060iZZE12#..ATM..(16E,18E,18G)..TH200204-200311

LH

main89516-12010iZZE121..ATM..MA;ZZE122..IND,MA,VN200310

RH

main89516-12020iZZE12#..(16E,16G,18G)..(MA,PHL)200208-200401

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-12552iZZE122..18G..(MA,TH)200105-200110

main89540-12560iZZE122..18G..TAIW200103-200110

main89540-12570iZZE122..18G..(MA,TH)200110-200310

main89540-12571iZZE122..MA200310-200401

main89540-12580iZZE122..18G..TAIW200310-200712

89542SENSOR, SPEED, FRONT RH

main89542-12070iZZE122..VN200103-200403

89543SENSOR, SPEED, FRONT LH

main89543-12070iZZE121..16E..TAIW;ZZE121..ATM..16J..TH;ZZE121..MTM..(16E,16J)..TH200103-200209

89544SENSOR, SKID CONTROL

main89544-12010×2iZZE12#..(16E,16G,18G)..(IDN,MA,PHL)200208-200508

main89544-12020×2iZZE121..16E..TAIW200202-200209

NSK,*369

89701ABLOCK SUB-ASSY, ABS RELAY

main89701-12020iZZE122..18G..TAIW200103-200310

89771COVER, ABS RELAY BLOCK, UPPER

main89771-12020iZZE122..18G..(MA,TH)200310-200801

89772COVER, ABS RELAY BLOCK, LOWER

main89772-12020iZZE122..MA200103-200401

90119T0006

main90119-T0006

9015970003

main90159-70003

91511G0814

main91511-G0814

9162160614

main91621-60614

91621B0610

main91621-B0610

91621B0618

main91621-B0618

91621J0614

main91621-J0614

91651B0618

main91651-B0618

9359016014

main93590-16014

24 parts on this diagram · 2 diagrams in section
