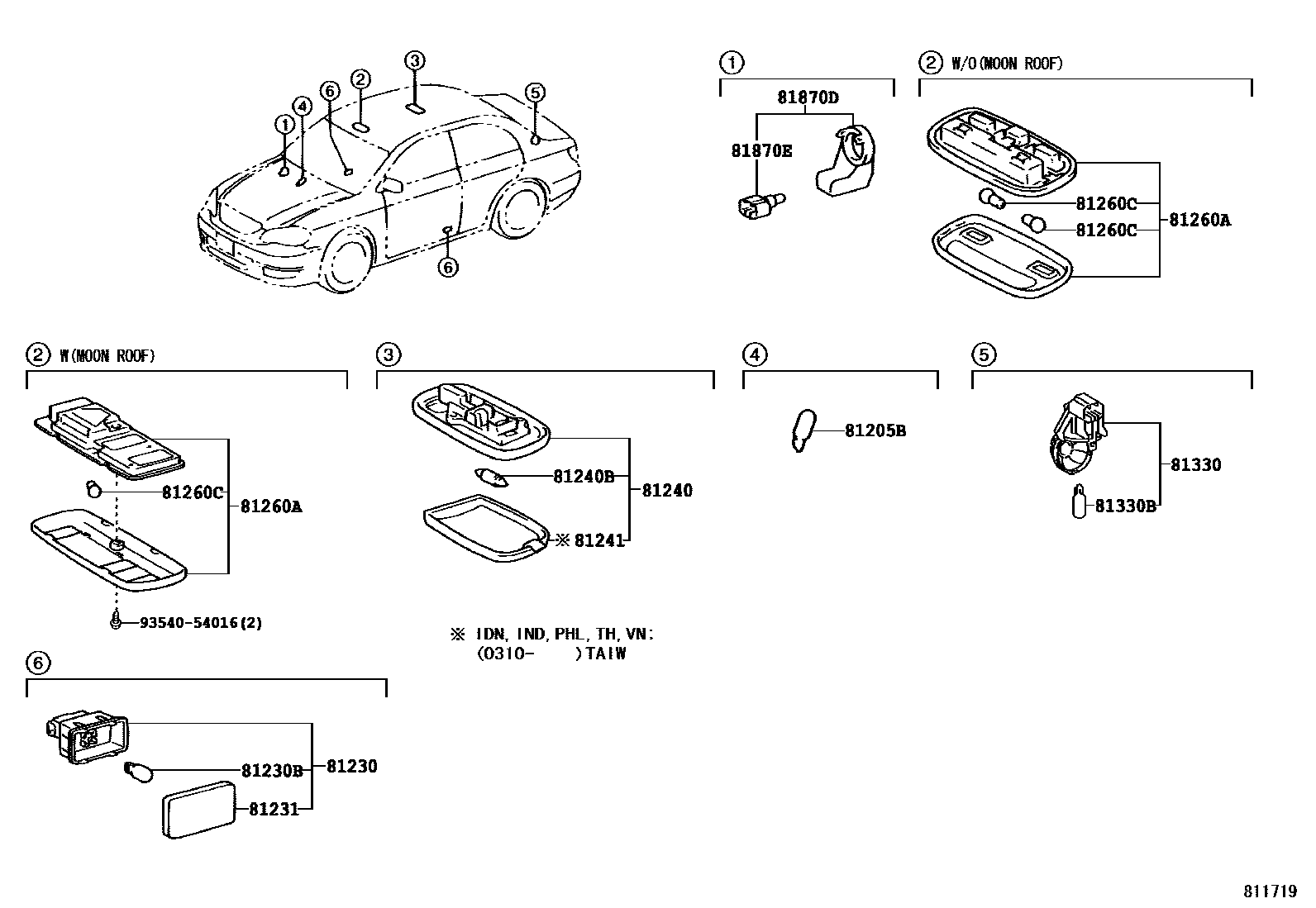

INTERIOR LAMP

81205BBULB, ASH RECEPTACLE LAMP

main90981-11018iNZE120,ZZE12#200103-200508

12V 1.2W W/O SOCKET

81230LAMP ASSY, COURTESY

main81230-02010×2iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200311-200801

main81230-02020×2iZZE12#..(16E,18E,18G)..TAIW200103-200107

main81230-02021×2iZZE12#..(16E,18E,18G)..TAIW200107-200310

main81230-02030×2iZZE122..IND200508

81230BBULB(FOR COURTESY LAMP)

main90981-11020×2iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200105-200311

12V 3.8W

81231LENS, COURTESY LAMP

main81231-02030×2iZZE122..IND200508

main81231-50010×2iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200105-200311

81240LAMP ASSY, ROOM, NO.1

main81240-02040-A0iZZE12#..(16E,18E,18G)..TAIW200103-200310

IVORY,TRIM0#

main81240-02040-B0iZZE12#..(16J,18G)..TAIW; ZZE122..18E..TAIW200310-200712

LT.GRAY,TRIM1#; LT.GRAY,TRIM14,15

main81240-02050-A0iZZE12#..MA200107-200401

IVORY,TRIM0#

main81240-12070-A0iZZE122..IND200311

IVORY,TRIM0#

main81240-12070-B0iZZE122..VN200311

LT.GRAY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZZE121..ATM..MA;ZZE122..IND,MA,VN200310

12V 8W

81241LENS, ROOM LAMP, NO.1

main81241-12070iNZE120,ZZE122..VN200105-200403

main81241-8C001iZZE12#..TAIW200310-200712

81260ALAMP ASSY, MAP

main81260-02020-A0iZZE121..ATM..MA;ZZE122..(18E,18G)..(IND,MA)200311

IVORY,TRIM0#

main81260-02020-B0iZZE122..18E..TH;ZZE12#..(16E,16G,18G)..(PHL,VN)200105-200402

LT.GRAY,TRIM1#

main81260-02030-A0iZZE122..18E..TAIW200310-200712

IVORY,TRIM0#

main81260-02030-B0iZZE12#..(16E,18G)..TAIW; ZZE122..18E..TAIW200103-200310

LT.GRAY,TRIM1#; LT.GRAY,TRIM17,18

main81260-0D020-A0iZZE122..TAIW200310-200712

W(MOON ROOF),IVORY,TRIM0#

main81260-0D020-B0iZZE122..18E..TAIW; ZZE122..18G..TAIW200310-200712

LT.GRAY,TRIM14,15; W(MOON ROOF),LT.GRAY,TRIM1#

main81260-12120-A0iZZE12#..(16E,18E,18G)..TAIW200103-200310

W(MOON ROOF),IVORY,TRIM0#

main81260-12120-B0iZZE12#..(16E,18E,18G)..TAIW200103-200310

W(MOON ROOF),LT.GRAY,TRIM1#

81260CBULB(FOR MAP LAMP)

main90981-12005×2iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200103-200311

12V 8W

main90981-12014iZZE122..TAIW200310-200712

12V 10W,W(MOON ROOF)

main90981-12020×2iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200311-200801

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-0A010iZZE12#..MA,PHL200105-200401

main81330-12020iZZE121..16E..TAIW200103-200211

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90080-81058iZZE121..ATM..MA;ZZE122..IND,MA,VN200311

12V 3W

main90981-11020iZZE12#..TAIW200310-200712

12V 3.8W

81870DLAMP ASSY, KEY CYLINDER

main81870-12020iZZE121..TAIW200211-200401

81870EBULB, KEY CYLINDER LAMP

main90010-01056iZZE122..IDN200110-200311

14V 1.4W

9354054016

main93540-54016

14 parts on this diagram · 1 diagram in section
