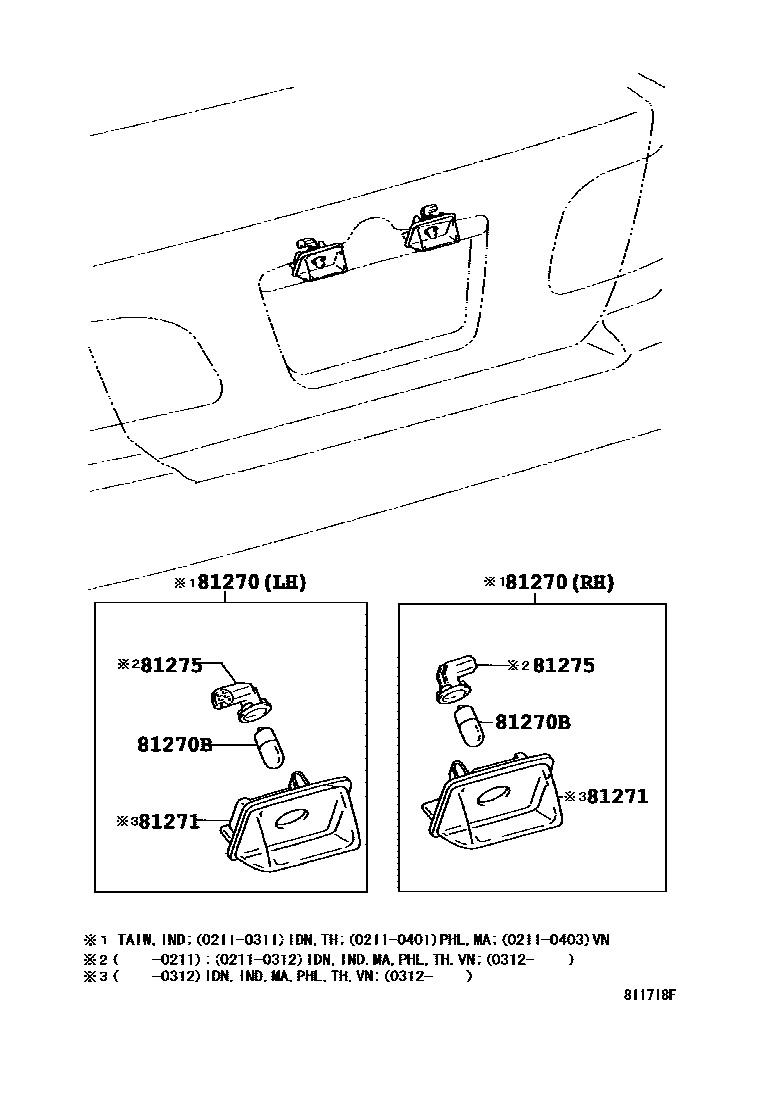

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-02030iZZE12#..TAIW200103-200211

RH

main81270-02100iZZE122..IND200508

RH

main81270-02110iZZE12#..TAIW200310-200312

RH

main81270-02111iZZE12#..TAIW200312-200611

RH

main81270-02113iZZE12#..TAIW200612-200712

RH

main81690-02020iZZE12#..TAIW200103-200211

LH

main81690-02080iNZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200211-200508

LH

main81690-02090iZZE12#..TAIW200211-200310

LH

main81690-02091iZZE12#..TAIW200312-200611

LH

main81690-02093iZZE12#..TAIW200612-200712

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iNZE120,ZZE12#200211-200508

12V 5W

81271LENS, LICENSE PLATE LAMP

main81271-02040iNZE120,ZZE12#..IDN,MA,PHL,TH,VN200105-200211

RH

main81271-02100iNZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200211-200508

RH

main81271-02120iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200311-200802

RH

main81271-8C003iZZE12#..TAIW200312-200611

RH

main81691-02030iNZE120,ZZE12#..IDN,MA,PHL,TH,VN200105-200211

LH

main81691-02080iNZE120,ZZE12#..IDN,IND,MA,PHL,TH,VN200211-200508

LH

main81691-02100iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200311-200802

LH

main81691-8C002iZZE12#..TAIW200312-200611

LH

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12501×2iZZE122..IND200301-200508

main81275-8C000×2iZZE12#..TAIW200103-200211

4 parts on this diagram · 1 diagram in section
