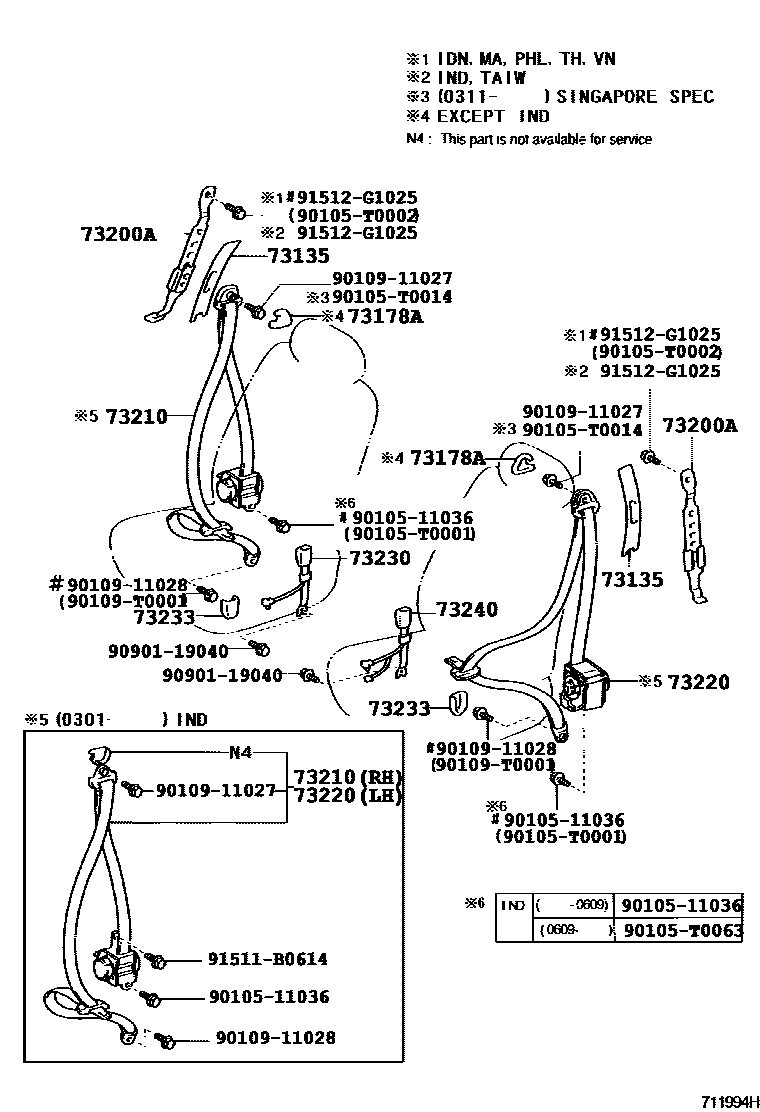

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR

73135COVER, SHOULDER BELT ANCHORAGE PLATE

main73135-02010-A0×2iZZE122..IND200301-200508

IVORY,TRIM0#

main73135-02010-B0×2iZZE12#..(16E,18G)..(PHL,VN);NZE120,ZZE12#..(16,16G,16J,18E,J)..(PHL,TH,VN)200202-200403

THAILAND SPEC,LT.GRAY,TRIM1#

main73135-12030-A0×2iZZE12#..RHD..(16E,18E,18G,18J)200103-200109

IVORY,TRIM0#

main73135-12030-B9×2iZZE121..(16,16G,16J)..(PHL,TH);NZE120,ZZE12#..(16E,18G,J)..(PHL,VN)200103-200109

LT.GRAY,TRIM1#

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33020-A1×2iZZE12#..(16E,18E,18G,18J)..(IDN,MA,TH)200105-200401

IVORY,TRIM0#

main73178-33020-B3×2iZZE122..VN200311

LT.GRAY,TRIM1#

main73178-34010-A1×2iZZE122..TAIW200310-200712

IVORY,TRIM0#

main73178-34010-B8×2iZZE12#..(16J,18G)..TAIW; ZZE122..18E..TAIW200310-200712

LT.GRAY,TRIM1#; LT.GRAY,TRIM14,15

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-02020-A0×2iZZE12#..RHD..(16E,18E,18G,18J)200105-200406

IVORY,TRIM0#

main73200-02020-B0×2iZZE12#..(16E,18G)..(PHL,VN);NZE120,ZZE12#..(16,16G,16J,18E,J)..(PHL,TH,VN)200105-200403

LT.GRAY,TRIM1#

main73200-02040-A0×2iZZE12#..(16E,18E,18G)..TAIW200103-200310

IVORY,TRIM0#

main73200-02040-B0×2iZZE12#..(16J,18G)..TAIW; ZZE122..18E..TAIW200310-200712

LT.GRAY,TRIM1#; LT.GRAY,TRIM14,15

main73200-02090-A0×2iZZE12#..ATM..MA200311-200709

IVORY,TRIM0#

main73200-02090-B0×2iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200311-200802

LT.GRAY,TRIM1#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-02050iZZE122..IND200301-200508

main73210-02080-A0iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200105-200311

IVORY,TRIM0#

main73210-02080-C0iZZE12#..(16E,18G)..(PHL,VN);NZE120,ZZE12#..(16,16G,16J,18E,J)..(PHL,TH,VN)200105-200403

BLACK,TRIM1#

main73210-02090-A0iZZE12#..(16E,18E,18G)..TAIW200103-200310

IVORY,TRIM0#

main73210-02090-C0iZZE12#..TAIW200103-200310

BLACK,TRIM1#

main73210-02110-A0iZZE12#..MA200107-200401

IVORY,TRIM0#

main73210-02230-A0iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200311-200801

IVORY,TRIM0#

main73210-02230-C0iZZE121..MTM..PHL;ZZE12#..ATM..(16E,18G)..PHL200311-200802

BLACK,TRIM1#

main73210-02240-A0iZZE12#..ATM..(16E,18E)..TH200311-200801

SINGAPORE SPEC,IVORY,TRIM0#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-02050-A0iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200105-200311

IVORY,TRIM0#

main73220-02050-C0iZZE12#..(16E,18G)..(PHL,VN);NZE120,ZZE12#..(16,16G,16J,18E,J)..(PHL,TH,VN)200105-200403

BLACK,TRIM1#

main73220-02070-A0iZZE122..TAIW200103-200310

IVORY,TRIM0#

main73220-02070-C0iZZE122..18E..TAIW; ZZE122..18G..TAIW200310-200712

BLACK,TRIM1#; BLACK,TRIM14,15

main73220-02080-A0iZZE12#..MA200107-200401

IVORY,TRIM0#

main73220-02090-A0iZZE121..16E..TAIW200103-200209

IVORY,TRIM0#

main73220-02090-C0iZZE121..TAIW200103-200310

BLACK,TRIM1#

main73220-02100iZZE122..IND200508

main73220-02230-A0iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200311-200801

IVORY,TRIM0#

main73220-02230-C0iZZE121..(16,16J)..TH200311-200801

BLACK,TRIM1#

main73220-02240-A0iZZE12#..ATM..(16E,18E)..TH200311-200801

SINGAPORE SPEC,IVORY,TRIM0#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-02100-A0iZZE12#..MA200605-200801

IVORY,TRIM0#

main73230-02110-A0iZZE122..18E..TAIW200603-200712

IVORY,TRIM05,14,15

main73230-02110-B0iZZE122..18E..TAIW; ZZE122..18G..TAIW200103-200306

DK.GRAY,TRIM1#; DK.GRAY,TRIM17,18

main73230-02150-A0iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200105-200311

IVORY,TRIM0#

main73230-02150-B0iZZE12#..(16,16J,18E)..TH200105-200311

DK.GRAY,TRIM1#

main73230-02200-A0iZZE122..IND200301-200508

IVORY,TRIM0#

main73230-0A010-B2iNZE120,ZZE12#..PHL,VN200107-200403

DK.GRAY,TRIM1#

main73230-0D110-A0iZZE121..ATM..16E..TH;ZZE122..(18E,18J)..(IDN,TH)200603-200801

IVORY,TRIM0#

73233COVER, LAP BELT OUTER ANCHOR

main73233-02020-A0×2iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200311-200801

IVORY,TRIM0#,(L)

main73233-02020-B0×2iZZE122..PHL,VN;ZZE121..MTM..PHL;ZZE121..(16,16J)..TH;ZZE121..ATM..16E..PHL200311-200801

DK.GRAY,TRIM1#,(L)

main73233-33010-A1×2iZZE122..TAIW200310-200712

IVORY,TRIM0#

main73233-33010-B8×2iZZE12#..(16J,18G)..TAIW; ZZE122..18E..TAIW200310-200712

DK.GRAY,TRIM1#; DK.GRAY,TRIM14,15

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-02050-B0iZZE121..16J..TAIW200103-200310

DK.GRAY,TRIM1#

main73230-02070-A0iZZE122..TAIW200103-200306

IVORY,TRIM0#

main73230-02070-B0iZZE122..18E..TAIW; ZZE122..18G..TAIW200103-200306

DK.GRAY,TRIM1#; DK.GRAY,TRIM17,18

main73230-02090-A0iZZE12#..MA200605-200801

IVORY,TRIM0#

main73230-02150-B0iNZE120,ZZE12#..PHL,VN200107-200403

DK.GRAY,TRIM1#

main73230-02210-A0iZZE122..IND200301-200508

IVORY,TRIM0#

main73230-0A010-A0iZZE12#..(16E,18E,18G,18J)..(IDN,TH)200105-200311

IVORY,TRIM0#

main73230-0A010-B2iZZE12#..(16,16J,18E)..TH200105-200311

DK.GRAY,TRIM1#

main73230-0D100-A0iZZE121..ATM..16E..TH;ZZE122..(18E,18J)..(IDN,TH)200603-200801

IVORY,TRIM0#

9010511036

main90105-11036

90105T0001

main90105-T0001

90105T0002

main90105-T0002

90105T0014

main90105-T0014

90105T0063

main90105-T0063

9010911027

main90109-11027

9010911028

main90109-11028

90109T0001

main90109-T0001

9090119040

main90901-19040

91511B0614

main91511-B0614

91512G1025

main91512-G1025

19 parts on this diagram · 2 diagrams in section
