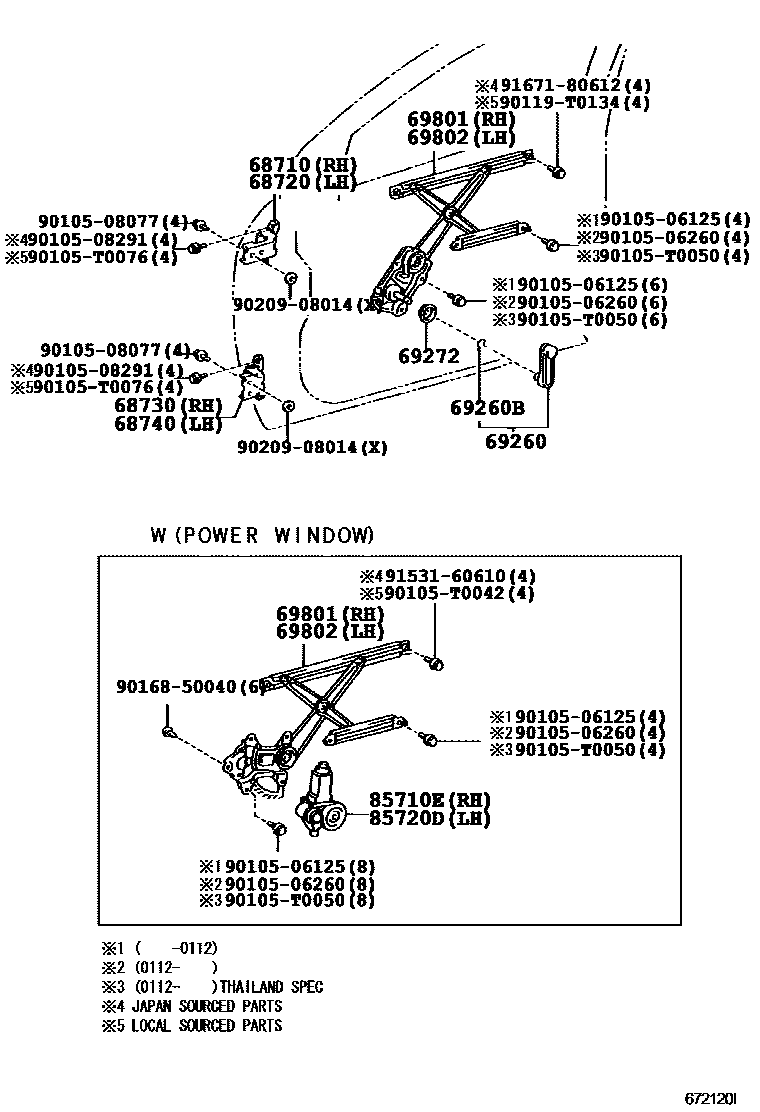

FRONT DOOR WINDOW REGULATOR & HINGE

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-0D030iZZE12#..TAIW200310-200712

PLANT NO.=Z35,Z44

main68710-0K030iZZE122..IND200505-200508

(L)

main68710-12150iNZE120,ZZE12#200103-200205

main68710-12151iZZE12#..PHL200611-200802

*227

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-0D030iZZE12#..TAIW200310-200712

PLANT NO.=Z35,Z44

main68720-0K030iZZE122..IND200508

(L)

main68720-12150iNZE120,ZZE12#200103-200205

main68720-12151iZZE12#..PHL200611-200802

*227

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-0K030iZZE122..IND200508

main68730-52010iZZE12#..TAIW200310-200712

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-0K030iZZE122..IND200508

main68740-52010iZZE12#..TAIW200310-200712

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-04030-B1×2iZZE121..16200105-200311

STONE,TRIM1#

main69260-04030-B2×2iZZE121..16200311-200801

MD.GRAY,TRIM1#

main69260-22030-B5×2iNZE120200107-200403

STONE,TRIM1#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×8iZZE121..16200311-200801

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69268-04020×2iZZE121..16200105-200311

main69268-12020×2iNZE120200107-200403

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-02050iZZE12#..TAIW200205-200310

main69801-02110iZZE12#..(16E,16J,18E,18G,18J)..(IDN,TH)200311-200801

main69801-02140iZZE122..IND200508

main69801-12190iZZE12#..MA,VN200401

main69810-12520iZZE121..16200311-200801

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-02050iZZE122..IDN200304-200401

main69802-02110iZZE12#..(16E,16J,18E,18G)..TH200305-200311

main69802-02120iZZE12#..TAIW200310-200712

main69802-02150iZZE122..IND200508

main69802-12190iZZE12#..IND,PHL,VN200103-200508

main69820-12510iZZE121..16200311-200801

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-02060iZZE12#..TAIW200103-200310

main85710-02150iZZE12#..(16E,16J,18E,18G,18J)..(IDN,TH)200311-200801

main85710-12190iZZE12#..RHD..(16E,16J,18E,18G,18J)200105-200211

main85710-12230iZZE12#..PHL200401-200802

main85710-12320iZZE12#..(16E,16J,18E,18G)..TH200211-200301

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0D080iZZE12#..MA200401-200801

main85720-0D100iZZE12#..(16E,16J,18E,18G,18J)..(IDN,TH)200311-200801

main85720-12210iZZE12#..(16E,16J,18E,18G)..TH200105-200301

main85720-12230iZZE12#..LHD200103-200211

main85720-12310iZZE122..VN200310

9010506125

main90105-06125

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

90105T0042

main90105-T0042

90105T0050

main90105-T0050

90105T0076

main90105-T0076

90119T0134

main90119-T0134

9016850040

main90168-50040

9020908014

main90209-08014

9153160610

main91531-60610

9167180612

main91671-80612

23 parts on this diagram · 1 diagram in section
